ADDITIONAL KHF 950 INSTALLATION OPTIONS
While the standard KHF 950 system requires a wire antenna of only
10 feet, shorter wire antennas as well as “shunt” or “notch” antennas
may also be tuned with additional hardware.
Special hardware is also available to allow dual KHF 950 systems
(Figure 2-7) to operate from a single antenna and provide a dual
receive capability.
Description
2-8
KHF 950/990 Pilots Guide
Rev. 0
Dec/96
KTR 953
B
KTR 953
B
*KCU 951 Control Display Unit
KTR 953
Receiver/Exciter
KA 158
Bridging Amps
KAC 952
Power Amplifier/
Antenna Coupler
Aircraft
HF Antenna
KA 160 Antenna Changeover Unit
(For long wire antennas).
or
KA 162 Antenna Changeover Unit
with external capacitor
(For shunt or short wire antennas).
*KCU 951 Control Display Unit
KTR 953
Receiver/Exciter
KAC 952
Power Amplifier/
Antenna Coupler
*A KCU 1051Control Display Unit or a miniature
KFS 594 Control Display Unit with its associated
KA 594 adapter may be substituted for the
KCU 951 Control Display Unit.
FREQ KHZ CHANNEL
CLARIFIER
PULL
SQUELCH
OFF
VOLUME
STO PGM
MODE FREQ CHAN
HF
ı
12345.6 99
USBAMLSB PGMTX
FREQ KHZ CHANNEL
CLARIFIER
PULL
SQUELCH
OFF
VOLUME
STO PGM
MODE FREQ CHAN
HF
ı
12345.6 99
USBAMLSB PGMTX

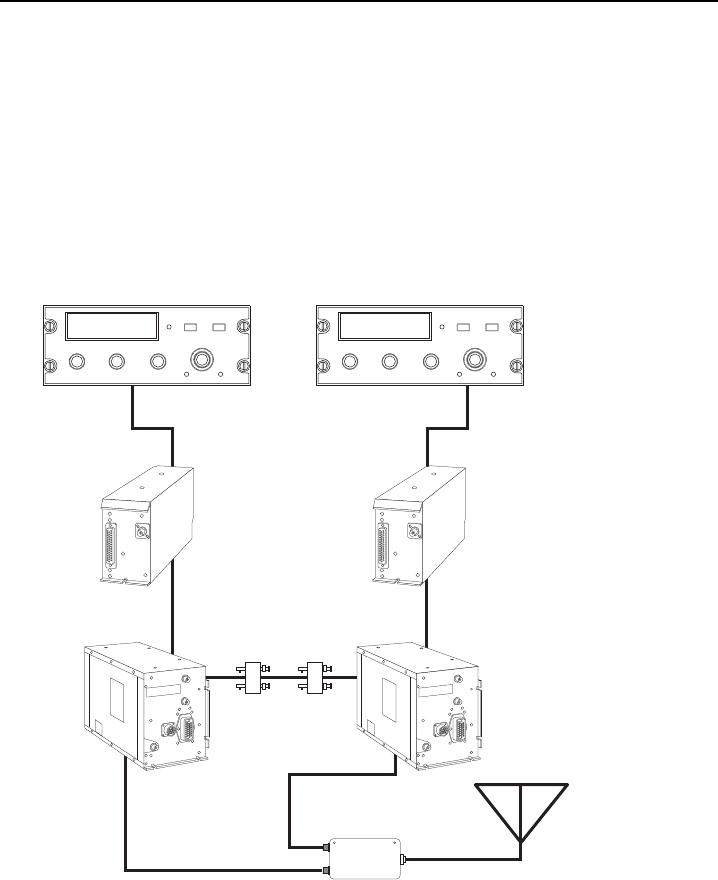

Figure 2-7 Dual KHF 950 System Configuration
