Description
2-2
KHF 950/990 Pilots Guide
Rev. 0
Dec/96
Display
The display screen is capable of displaying 2 lines of 16
(upper or lower case) characters. Information is
presented in formatted pages. The main display pages
are accessed by placing the cursor over the
operations/mode field (ALE) and rotating the VAR knob
until the desired page is displayed. To display a sub-
page of a main page see Secton III, Operation..
VOLUME knob
The VOLUME knob performs two functions.
Rotate the VOLUME knob to control the
audio output level. Push the VOLUME knob
to the in position to apply power to the unit or
pull the VOLUME knob to the out position to
remove power from the unit.
SQUELCH knob
Rotate SQUELCH
knob to control
the squelch
threshold level.
CURSOR knob
Rotate CURSOR knob to move
cursor from one field to next
field or one character to next
character when in CHAR MODE.
VAR knob
The VAR knob performs two functions.
Rotate knob to vary data under cursor.
Toggle the momentary switch. VAR knob
to the in position to select CHAR cursor
mode and then toggle again to select
FIELD cursor mode.
HF ALE
SCAN
VOL SQL CRSR VAR
MSG CLR ENT
PUSH
ON
PUSH
CHAR
B
OOOO Scan 100RM
ALE15CHARADDRESS
CLR key
By pushing the CLR
key you can cancel
changes made by the
operator or exit the
programming page.
ENT key
Pressing the ENT key
stores changes made
to the cursored field.
MSG key
The MSG key displays
the message page
where system
messages and ALE
AMDs can be reviewed
SCAN key
The SCAN key starts and
stops scanning and it causes
the radio to hang-up from an
ALE link. The SCAN key can
also be used to abort an
initiated call.

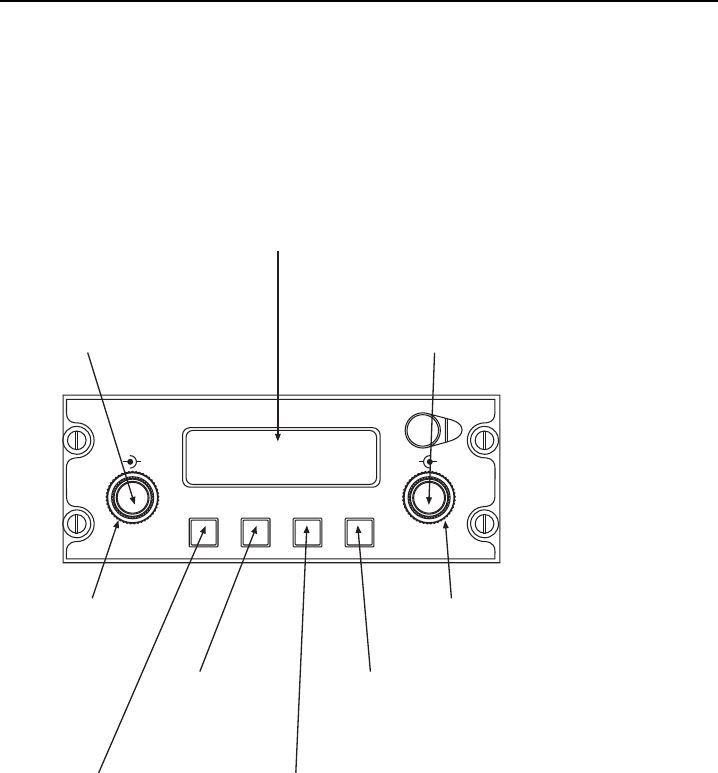

Figure 2-1 KCU 1051 Control Display Unit
