User's Manual

24
Figure 15
Step 4. Find the ABS power supply on the underside of the trailer. This power
supply is usually located just ahead of the trailer axles along the frame, or
directly next to the ABS module. Free the connector of any dirt and debris
and wipe down the ABS connection joint with a dry cloth before moving on.
Lift the plastic locking tab slightly to pull the ABS power splice connection
apart. Be careful as this tab can break off easily if pushed up too far.
Step 5. Interconnect the SmarTire
®
Trailer-Link
™
ABS-Power Splice Harness
(Part No: K075867) with the original ABS power supply. Ensure the locking
tab is re-engaged and that the connector plugs are greased with the supplied
dielectric grease.
P3 - ABS Power Splice Connection
P3 PIN# Designation Color
2 Brake Light Pwr. White
3 IGN. Power Red
1 Ground Black
Detail C-C
B
B
Detail B-B
P2
P1
C
C
P3
A
A
Detail A-A
Packard Plug
Packard Recpt
15 Inch
Packard plug
D
C
E
B
A
Packard Recpt
D
CB
A
E
P1 & 2 - ABS Power Splice Connections
P1 PIN# P2 PIN# Designation Color
A A Brake Light Power White
B B Ignition Power Red
E E Ground Black
C C Aux. I/O Blue
D D Indicator Lamp Brown

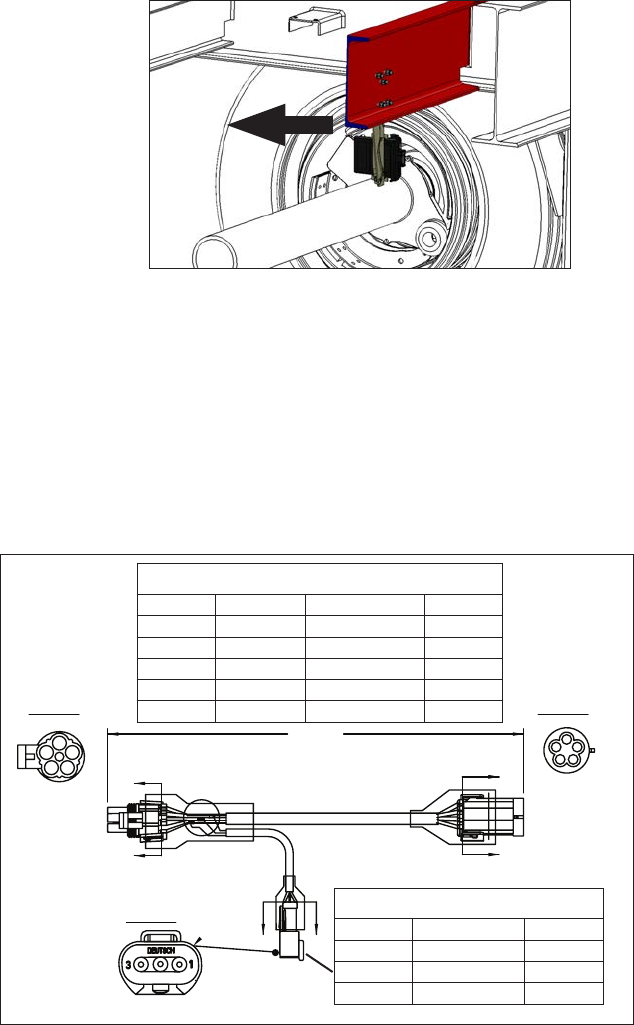

Figure 16 - SmarTire Trailer-Link
™
TPMS ABS Power Splice (Part No: K075867)
