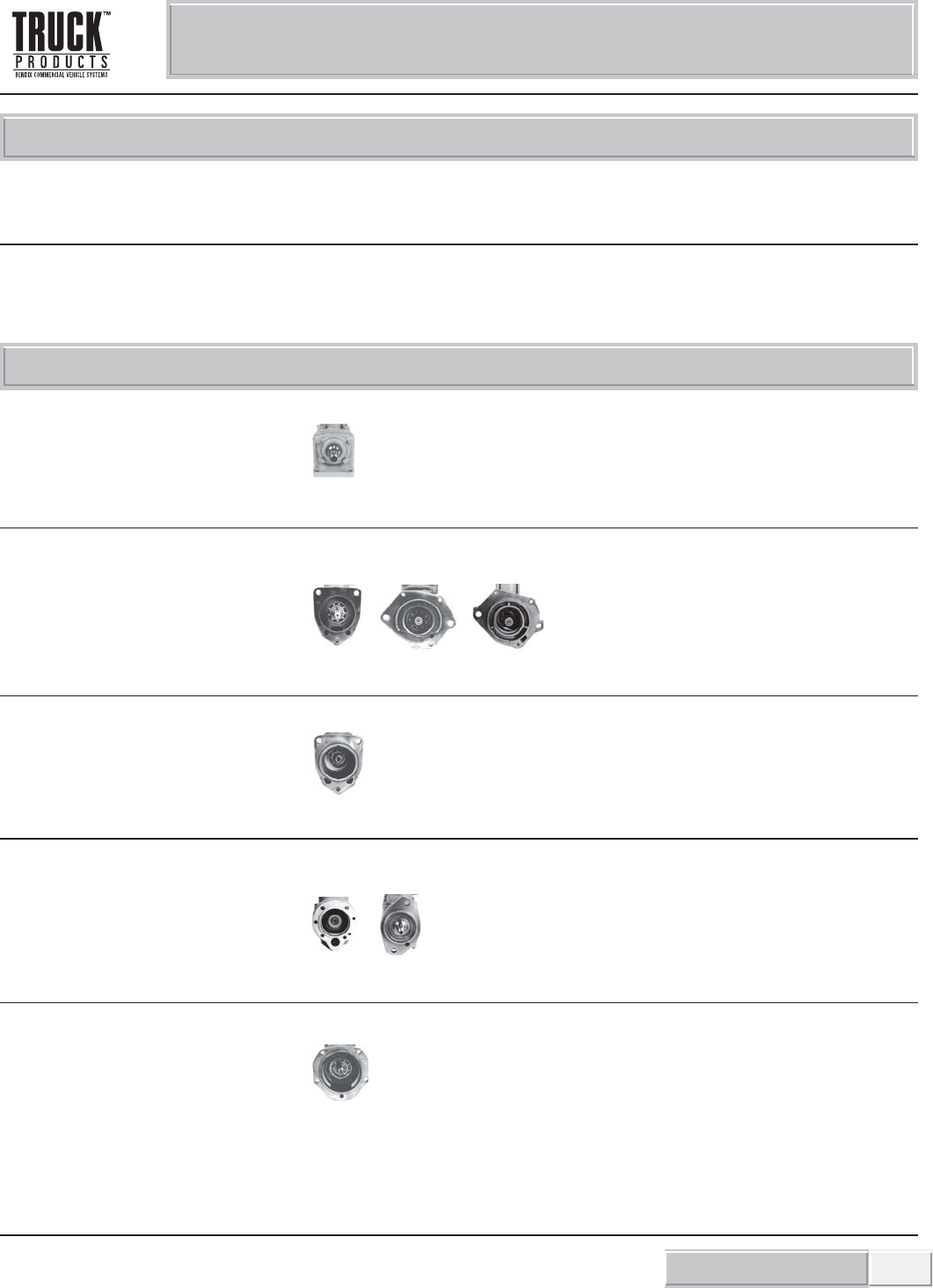

COMPRESSORS INTRODUCTION Comp-Page No. Table of Contents 1 General Information 3 COMPRESSORS Belt Drive 7 Midland 7 Caterpillar Engine 13 Midland 13 Clayton Dewandre 14 Mack Engine 17 Midland 17 Cummins Engine 18 Midland 18 Holset-Cummins 19 Detroit Diesel Engine 21 Midland 21 QUALITY REMANUFACTURED PRODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 COMPRESSORS Printed in U.S.A.
COMPRESSORS CYLINDER HEADS Comp-Page No. Cylinder Heads ...................................................................................................................................... 25 REPAIR & GASKET KITS Compressor Kit Cross Reference .................................................................................................. 26 Repair & Gasket Kits ............................................................................................................................
COMPRESSORS Compressor Nameplate Part No. Remanufactured A nameplate is attached to each compressor, generally to the crankcase. There are two styles in use, both having a silver background with black lettering. In all cases the nameplate displays the part number and serial number. The larger of the two also provides model information. Model No. Serial No.
GENERAL COMPRESSOR INFORMATION Remanufactured Midland Compressors EL740 1 9 The EL740 is a two cylinder compressor with a displacement of 7.4 cu. ft. per min. at 1250 RPM. It is available in both vertical mount, belt drive, or flange mount gear drive configurations. The EL740 is available as totally water cooled, totally air cooled, or in a combination of water cooled head and air cooled block. 2 3 8 7 1. Unloader Valve 2. Inlet Port 3. Discharge Port 4. Rear End Cover 5. Crankcase 6. Crankshaft 7.
GENERAL COMPRESSOR INFORMATION Remanufactured Midland Compressors (cont’d) EL1600 1. 2. 3. 4. Discharge Port Governor Port Inlet Port Water Ports 5. 6. 7. 8. Rear End Cover Crankcase Crankshaft Front End Cover 1 10 The EL1600 is a two cylinder compressor with a displacement of 16.1 cu. ft. per min. at 1250 RPM. It is a companion compressor to the EL1300 and is offered in most all the same configurations as the EL1300. 2 4 9. Cylinder Block 10.
GENERAL COMPRESSOR INFORMATION Remanufactured Holset – Cummins Compressors (cont’d) 1 Two Cylinder 2 The two cylinder Holset compressor has a displacement of 30 cu. ft. per min. at 1250 RPM. It is water cooled only and available from Truck Products in the Cummins flange drive only. 7 6 1. Governor 2. Intake Port 3. Crankcase 4. Base Plate 5. Drive Flange 6. Water Port 7.
BELT DRIVE KN7000X Midland EL740 Midland Model EL740 Two Cylinder Compressor with four hole base mount and rotatable cylinder head. Air cooled cylinder head and air cooled cylinder block. KN7000X Shown Specifications Part No. KN7000X Air Inlet Right, 3/8" Air Discharge Left, 3/8" Block Wtr. Port N/A Oil Inlet End Cover Oil Return Base KN7010X, KN7020X Comments Midland EL740 Midland Model EL740 Two Cylinder Compressor with four hole base mount and non-rotatable cylinder head.
BELT DRIVE KN7030X Midland EL740 Midland Model EL740 Two Cylinder Compressor with four hole base mount and rotatable cylinder head. Water cooled cylinder head and air cooled cylinder block. KN7030X Shown Specifications Part No. KN7030X Air Inlet Right Air Discharge Left, Threaded Block Wtr. Port N/A Oil Inlet Base/End Cover Oil Return Base KN7040X, KN7041X, KN7050X Comments Midland EL740 Midland Model EL740 Two Cylinder Compressor with four hole base mount and non-rotatable head.
BELT DRIVE KN7170X, KN7180X Midland EL740 Midland Model EL740 Two Cylinder Compressor with six hole base mount and non-rotatable cylinder head. Water cooled cylinder head and air cooled cylinder block. KN7170X Shown Specifications Air Inlet Right Left Part No. KN7170X KN7180X Air Discharge Right, Flange Left, Flange Block Wtr.
BELT DRIVE KN86020X Midland EL850 Midland Model EL850 Single Cylinder Compressor with four hole base mount. Water cooled cylinder head and air cooled cylinder block. KN86020X Shown Specifications Part No. KN86020X Air Inlet Right Air Discharge Top, Threaded Block Wtr. Port N/A Oil Inlet End Cover Oil Return Base EL13020X, EL13021X, EL13022X EL13060X, EL16020X, EL16060X Comments Midland EL1300 & EL1600 Midland Model EL1300 & EL1600 Two Cylinder Compressor with four hole base mount.
This page left blank. QUALITY REMANUFACTURED PRODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 COMPRESSORS Printed in U.S.A.
This page left blank.
CATERPILLAR ENGINE EL13080X, EL13170X, EL13200X, EL16080X, EL16200X Midland EL1300 & EL1600 Midland Model EL1300 & EL1600 Two Cylinder Compressor with Caterpillar engine mounting flange and tapered crankshaft. EL13080X Shown Specifications Part No. EL13080X EL13170X EL13200X EL16080X EL16200X Air Inlet Right Right Right Right Right Air Discharge Top, Flange Top, Flange Top, Flange Top, Flange Top, Flange Block Wtr.
CATERPILLAR ENGINE EL13151X Midland EL1300 Midland Model EL1300 Two Cylinder Compressor with Caterpillar 3306 engine mounting flange. EL13151X Shown Specifications Air Inlet Right Part No. EL13151X Air Discharge Top, Flange Block Wtr. Port Right Oil Inlet End Cover Oil Return Flange 2P8711X Comments Clayton Dewandre Clayton Dewandre Single Cylinder Compressor with Caterpillar 3306 engine mounting flange and rotatable cylinder head. Water cooled cylinder head and air cooled cylinder block.
This page left blank. QUALITY REMANUFACTURED PRODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 COMPRESSORS Printed in U.S.A.
This page left blank.
MACK ENGINE EL13111X, EL16111X Midland EL1300 & EL1600 Midland Model EL1300 & EL1600 Two Cylinder Compressor with Mack inline 6 engine mounting flange. EL13111X Shown Specifications Part No. EL13111X EL16111X Air Inlet Left Left Air Discharge Top, Flange Top, Flange Block Wtr.
CUMMINS ENGINE KN86230X Midland EL850 Midland Model EL850 Single Cylinder Compressor with Cummins B & C series engine mounting flange. Water cooled cylinder head and air cooled cylinder block. KN86230X Shown Specifications Part No. KN86230X Air Inlet Optional Air Discharge Optional, Threaded Block Wtr.
CUMMINS ENGINE EL13040X, EL16040X Midland EL1300 & EL1600 Midland Model EL1300 & EL1600 Two Cylinder Compressor with Cummins inline engine mounting flange. EL13040X Shown Specifications Part No. EL13040X EL16040X Air Inlet Right Right Air Discharge Top, Flange Top, Flange Block Wtr. Port Right Right Oil Inlet Drive Flange Drive Flange Oil Return Drive Flange Drive Flange 3018543X Comments Holset-Cummins Holset-Cummins Single Cylinder Compressor with Cummins inline engine mounting flange.
CUMMINS 3048680X Holset-Cummins Holset-Cummins Two Cylinder Compressor with Cummins inline engine mounting flange. 3048680X Shown Specifications Part No. 3048680X 20 Air Inlet Right Air Discharge Front, Threaded COMPRESSORS Block Wtr.
DETROIT DIESEL ENGINE KN7060X, KN7070X, KN7080X Midland EL740 Midland Model EL740 Two Cylinder Compressor with Detroit Diesel engine mounting flange. Water cooled cylinder head and air cooled cylinder block. KN7060X Shown Tach Drive Connection Specifications Part No. KN7060X KN7070X KN7080X Air Inlet Right Right Left Air Discharge Right, Flange Right, Flange Left, Flange Block Wtr.
DETROIT DIESEL ENGINE EL13050X, EL13051X, EL13070X, EL13090X, EL13100X EL13160X, EL16050X, EL16051X, EL16070X, EL16072X EL16090X, EL16100X, EL16160X, EL16250X Midland EL1300 & EL1600 Midland Model EL1300 & EL1600 Two Cylinder Compressor with Detroit Diesel engine mounting flange. EL13050X Shown 0° Flange Tilt 1 & 4° Flange Tilt 41, 45 & 50° Flange Tilt 75° Flange Tilt Specifications Part No.
This page left blank. QUALITY REMANUFACTURED PRODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 COMPRESSORS Printed in U.S.A.
This page left blank.
CYLINDER HEADS KN17090X Discharge Port Midland Compressor Cylinder Head Water Port This kit services Midland Compressors: EL1300 and EL1600 Series Compressors Water Port Governor Port Inlet Port Governor 3044389X Cummins Compressor Cylinder Head Discharge Port This kit services Cummins Compressors: 3018543X Water Port QUALITY REMANUFACTURED PRODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Intake Port COMPRESSOR
COMPRESSOR KIT CROSS REFERENCE How to use the Compressor Kit Cross Reference Charts On the following pages are a series of charts listing all of the Repair & Gasket Kit part numbers, along with the part number of the compressor each kit services. There are four (4) separate charts; one for the Cummins compressors and kits, and one each for the Midland EL740, EL850, and EL1300/1600 series compressors and kits.
COMPRESSOR KIT CROSS REFERENCE Piston Kits P 1300 / 010 .010" Oversize Compressor Model Number The Piston Kits include Piston, Pin, and Retainers. Kits are available in Std., .010", .020", and .030" oversize. The piston size is stamped into the top of the piston for easy identification. Kit Type – Piston Kit Rod Bearing Set RB 740 / 020 .
COMPRESSORS Midland EL850 Compressor Service Kits Compressor Part No.
COMPRESSOR KIT CROSS REFERENCE GK14111 Mounting Gasket Kit GK14111C Complete Gasket Kit RK1316-000 Piston Ring Kit " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " QUALITY REMANUFACTURED PRODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC BW1736 GK13151C Complete Gasket Kit GK13220 Mounting Gasket Kit GK13220C Complete Gasket Kit GK13111 Mounting
REPAIR & GASKET KITS UK740 4 Midland Compressor Unloader Kit 1 This kit services Midland Compressors: All EL740 Series Compressors 2 Includes Item No. 1 2 3 4 5 Description Cup Spring Spring Pin 1-1/4" Unloader Cup O-Ring Qty. 2 2 2 2 2 Part No. — — — — — 3 5 UK850 Midland Compressor Unloader Kit This kit services Midland Compressors: All EL850 Series Compressors Includes Item No. 1 2 3 4 2 3 1 Description O-Ring Spring Piston Assy. Copper Washer Qty. 1 1 1 1 Part No.
REPAIR & GASKET KITS UK8543 Cummins Compressor Unloader Kit This kit services Cummins Compressors: 3015843X, 3048680X 1 Includes Item No. Description Qty. 1 Unloader O-Ring (Red) 1 2 Unloader Valve Spring 1 3 Intake Valve Spring 1 4 Wear Plate 1 5 Intake Valve 1 6 Intake Valve O-Ring (Red) 1 7 Exhaust Valve O-Ring 1 8 Exhaust Valve Spring 1 9 Exhaust Valve 1 10 Cup Seal 1 Comments: 2 kits required to service 3048680X Compressor Part No.
REPAIR & GASKET KITS HK1300 A Midland Compressor Cylinder Head Repair Kit This kit services Midland Compressors: All EL1300 and EL1600 Series Compressors Includes 5 Item No. Description A Unloader Kit 1 Cylinder Head Gasket 2 Discharge Port Gasket 3 Governor Gasket 4 Inlet Port Gasket 5 Exhaust Valve Springs 6 Exhaust Valve Seat 7 Copper Washer 8 Inlet Valve Seat 9 Exhaust Valve Plate 10 Inlet Valve Spring 11 Inlet Valve Cage 12 Inlet Valve Plate 1 6 8 9 10 2 11 3 7 12 4 Part No.
REPAIR & GASKET KITS GK7000 1 Midland Compressor Mounting Gasket Kit This kit services Midland Compressors: KN7000X, KN7010X, KN7020X, KN7030X, KN7040X, KN7050X 2 Includes Item No. Description 1 Mounting Gasket (Base) 2 Inlet Port Gasket 3 Discharge Port Gasket Qty. 1 1 1 Part No. — — — 3 GK7000C Midland Compressor Complete Gasket Kit A This kit services Midland Compressors: KN7000X, KN7010X, KN7020X, KN7030X, KN7040X, KN7050X Includes Item No.
REPAIR & GASKET KITS GK7041C Midland Compressor Complete Gasket Kit A This kit services Midland Compressors: KN7041X Includes Item No. Description A Mounting Gasket Kit 1 Cylinder Head Gasket 2 Cylinder Block Gasket 3 End Cover Gasket 4 Oil Seal 1 2 Qty. 1 1 1 2 1 Part No. GK7041 — — — — 3 4 GK7070 Midland Compressor Mounting Gasket Kit 1 This kit services Midland Compressors: KN7060X, KN7070X, KN7080X 3 Includes Item No.
REPAIR & GASKET KITS GK7170 1 Midland Compressor Mounting Gasket Kit This kit services Midland Compressors: KN7170X, KN7180X Includes 3 Item No. Description 1 Mounting Gasket (Base) 2 Inlet Port Gasket 3 Discharge Port Gasket Qty. 1 1 1 Part No. — — — 2 GK7170C Midland Compressor Complete Gasket Kit A This kit services Midland Compressors: KN7170X, KN7180X Includes Item No. Description A Mounting Gasket Kit 1 Cylinder Head Gasket 2 Cylinder Block Gasket 3 End Cover Gasket 4 O-Ring Qty.
REPAIR & GASKET KITS GK85020C Midland Compressor Complete Gasket Kit A This kit services Midland Compressors: KN85020X Includes Item No. Description A Mounting Gasket Kit 1 Cylinder Block Gasket 2 End Cover Gasket Qty. 1 1 1 Part No. GK85020 — — 2 1 GK86230 Midland Compressor Mounting Gasket Kit 4 3 This kit services Midland Compressors: KN86230X 1 Includes Item No. Description 1 Mounting Gasket (Flange) 2 Inlet Port Gasket 3 Governor Gasket 4 Cylinder Head Gasket 2 Qty. 1 1 1 1 Part No.
REPAIR & GASKET KITS GK13020 Midland Compressor Mounting Gasket Kit 5 1 3 This kit services Midland Compressors: EL13020X, EL13021X, EL13060X, EL16020X, EL16060X Includes Item No. Description 1 Mounting Gasket (Base) 2 Inlet Port Gasket 3 Discharge Port Gasket 4 Governor Gasket 5 Cylinder Head Gasket Qty. 1 1 1 1 1 Part No. — — — — — 2 4 GK13020C Midland Compressor Complete Gasket Kit A This kit services Midland Compressors: EL13020X, EL13021X, EL13060X, EL16020X, EL16060X Includes Item No.
REPAIR & GASKET KITS GK13022C Midland Compressor Complete Gasket Kit A This kit services Midland Compressors: EL13022X Includes Item No. Description A Mounting Gasket Kit 1 Cylinder Block Gasket 2 End Cover Gasket 3 Oil Seal Qty. 1 1 2 1 Part No. GK13022 — — — 3 2 1 GK13040 1 Midland Compressor Mounting Gasket Kit This kit services Midland Compressors: EL13040X, EL16040X 6 Includes 3 Item No.
REPAIR & GASKET KITS GK13050 Midland Compressor Mounting Gasket Kit This kit services Midland Compressors: EL13050X, EL13051X, EL13053X, EL13070X, EL13090X, EL13100X, EL13160X, EL16050X, EL16051X, EL16053X, EL16070X, EL16072X, EL16090X, EL16100X, EL16160X, EL16250X 1 5 2 Includes Item No. Description 1 Mounting Gasket (Flange) 2 Inlet Port Gasket 3 Discharge Port Gasket 4 Governor Gasket 5 Cylinder Head Gasket Qty. 1 1 1 1 1 Part No.
REPAIR & GASKET KITS GK13080 5 Midland Compressor Mounting Gasket Kit 1 2 This kit services Midland Compressors: EL13080X, EL13120X, EL13170X, EL13200X, EL16080X, EL16120X, EL16200X Includes Item No. Description 1 Mounting Gasket 2 Inlet Port Gasket 3 Discharge Port Gasket 4 Governor Gasket 5 Cylinder Head Gasket 3 4 Qty. 1 1 1 1 1 Part No.
REPAIR & GASKET KITS GK13111C A Midland Compressor Complete Gasket Kit This kit services Midland Compressors: EL13111X, EL16111X Includes Item No. Description A Mounting Gasket Kit 1 Cylinder Block Gasket 2 End Cover O-Ring 3 Base Plate Gasket Qty. 1 1 1 1 Part No. GK13111 — — — 1 3 2 GK13151 Midland Compressor Mounting Gasket Kit This kit services Midland Compressors: EL13151X 5 Includes Item No.
REPAIR & GASKET KITS GK13220 Midland Compressor Mounting Gasket Kit 5 This kit services Midland Compressors: EL13220X 1 2 Includes Item No. Description 1 Mounting Gasket (Flange) 2 Inlet Port Gasket 3 Discharge Port Gasket 4 Governor Gasket 5 Cylinder Head Gasket 3 Qty. 1 1 1 1 1 Part No. — — — — — 4 GK13220C Midland Compressor Complete Gasket Kit This kit services Midland Compressors: EL13220X Includes Item No.
REPAIR & GASKET KITS GK14111C Midland Compressor Complete Gasket Kit This kit services Midland Compressors: EL14111X Includes Item No. Description A Mounting Gasket Kit 1 Cylinder Block Gasket 2 End Cover Gasket 3 Base Plate Gasket Qty. 1 1 1 1 Part No. GK14111 — — — A 3 1 2 GK8543 (Not Shown) Cummins Compressor Mounting Gasket Kit This kit services Cummins Compressors: 3018543X Includes Item No. Description A Unloader Kit 1 Mounting Gasket (Flange) 2 Mounting Gasket (Rear) 3 Inlet Port Gasket Qty.
REPAIR & GASKET KITS AR73308 Cummins Compressor Complete Gasket Kit 1 2 This kit services Cummins Compressors: 3018543X 3 Includes 4 Item No. 1 2 3 4 5 6 7 6 5 Description O-Ring Inlet Port Gasket Seal O-Ring Support Gasket Head Block Gasket Head Cover Gasket Qty. 1 1 1 1 1 1 1 Part No. — — — — — — — 7 GK8711 (Not Shown) Clayton Dewandre Compressor Mounting Gasket Kit This kit services Clayton Dewandre Compressors: 2P8711X Includes Item No. Description 1 Mounting Gasket (Flange) Qty.
REPAIR & GASKET KITS P850/000, P850/010, P850/020, P850/030 Midland Compressor Piston Kit This kit services Midland Compressors: All EL850 Series Compressors 1 Includes Item No. 1 2 3 Description Piston Pin Retainer Qty. 1 1 2 Part No. — — — 2 Specifications Part No. P850/000 P850/010 P850/020 P850/030 Size Standard .010" Oversize .020" Oversize .
REPAIR & GASKET KITS Compression Rings RK740/000, RK740/010, RK740/020, RK740/030 Midland Compressor Piston Ring Kit This kit services Midland Compressors: All EL740 Series Compressors Specifications Part No. RK740/000 RK740/010 RK740/020 RK740/030 Size Standard .010" Oversize .020" Oversize .030" Oversize Oil Rings RK850/000, RK850/010, RK850/020, RK850/030 Compression Rings Midland Compressor Piston Ring Kit This kit services Midland Compressors: All EL850 Series Compressors Specifications Part No.
REPAIR & GASKET KITS AR73350, AR73351, AR73352, AR73353 Compression Rings Cummins Compressor Piston Ring Kit This kit services Cummins Compressors: Specifications Part No. AR73350 AR73351 AR73352 AR73353 Size Standard .010" Oversize .020" Oversize .030" Oversize Oil Rings RB740/000, RB740/010, RB740/020, RB740/030 Midland Compressor Rod Bearing Set This kit services Midland Compressors: All EL740 Series Compressors Specifications Part No. RB740/000 RB740/010 RB740/020 RB740/030 Size Standard .
REPAIR & GASKET KITS RB1300/000, RB1300/010, RB1300/020, RB1300/030 Midland Compressor Rod Bearing Set This kit services Midland Compressors: All EL1300 and EL1600 Series Compressors Specifications Part No. RB1300/000 RB1300/010 RB1300/020 RB1300/030 Size Standard .010" Undersize .020" Undersize .030" Undersize AR200398, AR3000174 Cummins Compressor Drive Gear AR3000174 Shown Specifications Gear No.
GOVERNOR KN18530X Midland Governor KN18530X Shown Unloader Port Reservoir Port Specifications Part No. KN18530X *OR18530 Reservoir Port 1/8" PT 1/8" PT Unloader Port 1/8" PT 1/8" PT Exhaust Port 1/8" PT 1/8" PT Cut-In P re s s u re 105-110 psi 95-100 psi Cut-Out Pressure Range 15-30 psi above Cut-In 15-30 psi above Cut-In Comments *OR18530 is an out-right part number and is not in the remanufactured exchange core program.
