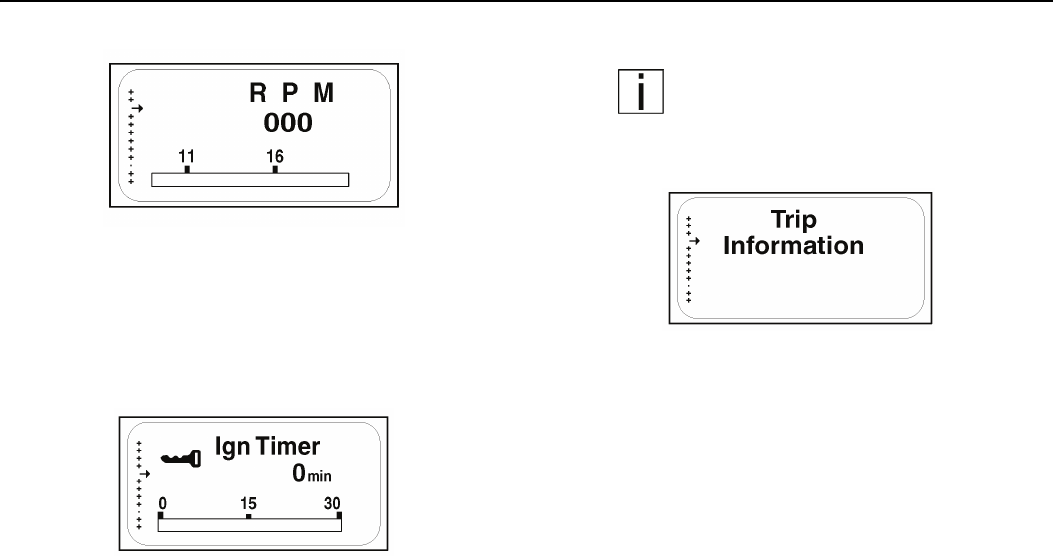

B. RPM Detail (Accessible while parked or driving)
RPM reading of actual engine RPM. Engine RPM
within the bar graph indicates the engine is operat-
ing in the most efficient RPM range. The display
color will change if you are operating outside of this
range.
C. Ignition Timer (Accessible while parked only)
Ignition timer is set from this menu. The ignition
timer may be set for up to 30 minutes.
D. Trip Information
NOTE: When accessing the trip information
menu, push the MCS on this menu (bullet).
To exit, push the MCS again. To reset the trip
values, press the Trip Odometer Reset But-
ton on the main gauge instrument cluster.
Certain Trip Information functions area accessible
when driving or when parked:
– Trip Economy
– Trip Average Speed
Other Trip Information functions are accessible only
when parked:
– Trip Distance
– Trip Engine Hours
– Trip Idle Hours
– Trip Idle Percentage (%)
