PHU9S
ABSOLUTE MULTI-TURN ENCODER, PROFIBUS INTERFACE, PHU9S SERIE
GENERALITY
Power supply : 5-30V consumption <200 mA
(160mA typ).
Transmission frequency: from 9.6Kbaud to
12Mbaud.
Electronic interface: opto-isolated RS 485.
Adress: permits the addressing of each
encoder in an installation (32 master stations
or slaves stations per segment without
repetitor, 127 maximum with repetitor).
BEI Sensors SAS
Espace Européen de l’Entreprise
9, rue de Copenhague
B.P. 70044 Schiltigheim
F 67013 Strasbourg Cedex
Tél : [phone]
Fax : [phone]
Mail : [e-mail]
Web :
www.beisensors.com

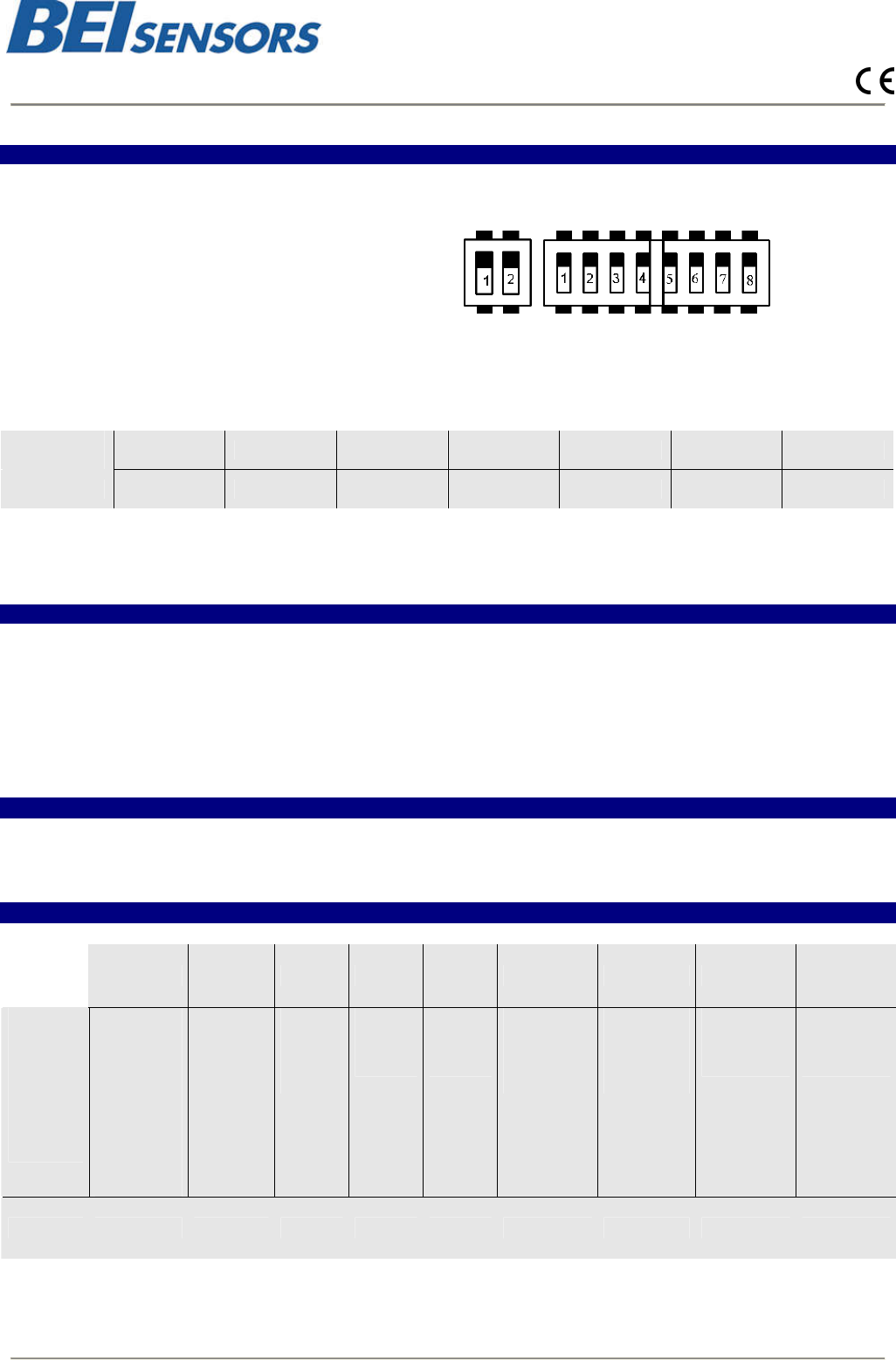

ON ON
Adress: 0 to 126 (Binary code)
End line resistance termination: 1, 2 ‘’ON’’
(Beginning or end line)
Switch -
on ‘’ON’’
1 2 3 4 5 6 7
= 1 2 4 8 16 32 64
Switch 8 on ‘’OFF’’.
Example: Adress 5: Switch 1 & 3 on ‘’ON’’, other on ‘’OFF’’.
PARAMETRES PROGRAMMABLES
Direction : Permits the definition of the counting direction of the encoder (CW or CCW) following its mechanical
position.
Resolution : the number or points per turn can be between 0 and 8192.
Global resolution (MAX RANGE) : Total number of codes of the encoder (2 to 536 870 912).
Reset : defines the value of its actual position.
Time base : defines the base time for the speed calculation (10 ms , 100 ms, 1 s, speed in rpm).
CONNECTION
Integrated terminal bos on encoder – ‘’push-in’’ connection – max 1,5mm².
ORDERING CODE (Special versions upon request, for ex. special flanges/electronics/connections…)
Shaft  ATEX Supply Interface Code Resolution Tunrs Nb Connection
Connection
orientation
PHU9S
PXU9S
Stainless
steel
encoder
30:
30mm
10 to 28mm
reduction
hub
available
EX:
Ex II 3 G
Ex nA II T4
P :
5 to
30Vdc
BG :
Profibus
B:
Binary
13 :
8192 points
per turn (2
13
)
B16 :
65 536 turns
(2
16
)
BT :
Terminal box
R :
Radial
Ex: PHU9S 30 / EX / P BG B // 13 B16 // BT R
