INTERBUS ABSOLUTE MULTI-TURN ENCODER, MHM506-INTB RANGE
 MHM506-INTB, standard encoder Ø58mm with Interbus interface:
 Robust and compact conception,
 Solid shaft version Ø 06 mm, servo flange,
 P
recision ball bearings with sealing flange,
 High temperatures performances –40°C … +85°C,
 Code disc made of unbreakable and durable plastic,
 Mechanical memorisation of the number of turns by gears,
 Resolution : 13 bits = 8192 steps/turn,
 Number of turns : 12 bits = 4096 turns,
 Polarity inversion and short circuit protection,
 Highly integrated circuit in SMD-technology.

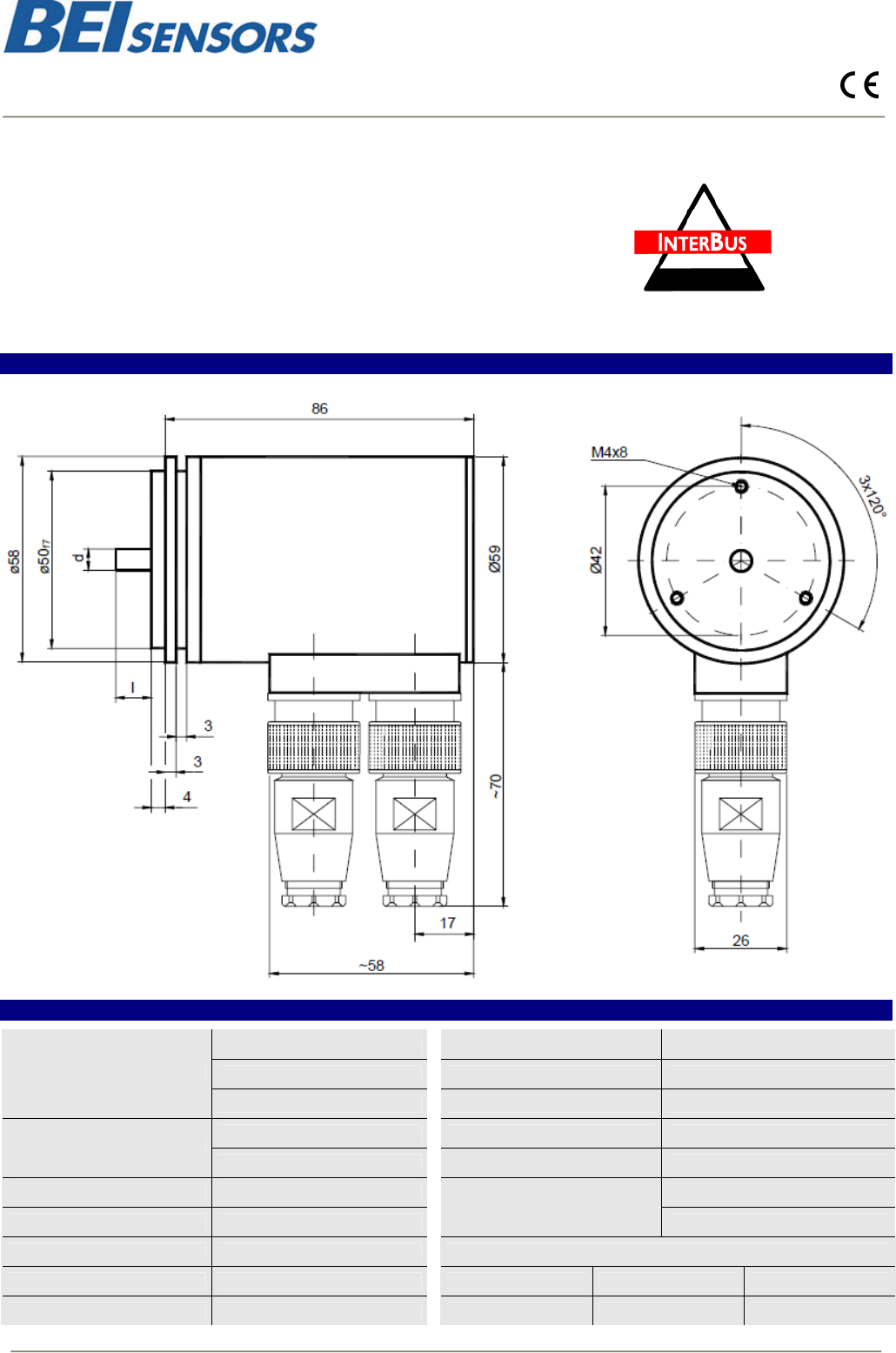

MHM506-INTB DIMENSIONS
MECHANICAL DATA
Cover : aluminum Vibrations (EN 60068-2-6) ≤ 10 g (10Hz… 1 000Hz)
Body : aluminum Weight 600 g
Material
Shaft: stainless steel Operating temperature 0 … + 60°C
Axial : 40 N Storage temperature - 40 ... + 85°C
Max. shaft loading
Radial : 110 N
Humidity
98 % without condensation
Shaft Inertia ≤ 30 g.cm² IP65: cover
Torque ≤ 3 N.cm
Protection class (EN 60529)
IP64: shaft
RPM (continuous operation)) 6 000 rpm Lifetime in 10
8
revolutions with F
a
/ F
r
(axial/radial)
Shock (EN 60068-2-27) ≤ 30 g (halfsinus, 11ms) 40 N / 60 N 40 N / 80 N 40 N / 110 N
Shock (EN 60028-2-29) ≤ 10 g (half-sinus, 16ms) 822 347 133
Changes possible without further notice - Version 100301
