HEAVY DUTY INCLINOMETER

DEVICENET INTERFACE

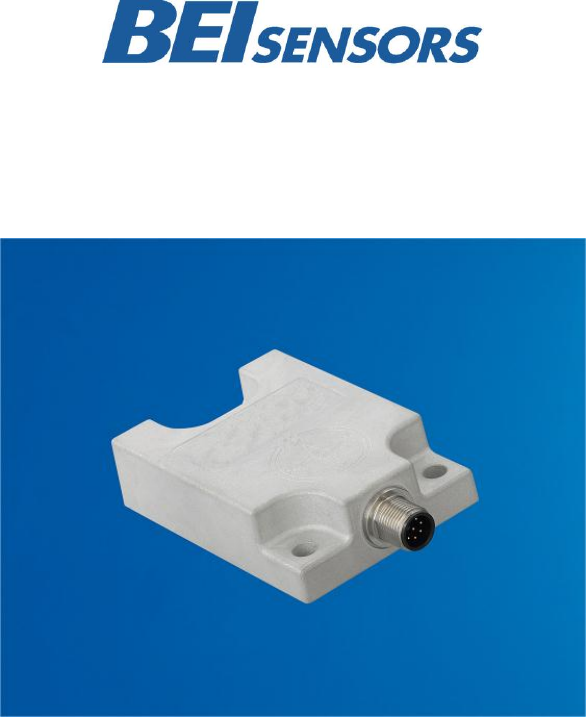

Heavy Duty inclinometers are robust inclination sensors specially designed for applications involving rough

handling and exposure to rigorous conditions. The die cast aluminium housing and the metal connector

enhance the mechanical strength of the sensor and make it ideal for heavy duty usage.

Main Features

− Dual Axis Inclinometer ± 80°

− Single Axis Inclinometer 360°

− High Resolution: 0.01°

− Accuracy: 0.1°

− Aluminium Alloy Housing

− Enhanced Mechanical Strength

− Active Linearization and

Temperature Compensation

− Interface: DeviceNet

− Housing Protection Class: IP69K, IP68, IP67

Electrical Features

− Latest MEMS Technology For

Highest Precision And Dynamics

− Polarity Inversion Protection

− Over-Voltage-Peak Protection

Programmable Parameters

− Baud Rate

− Node ID

− Software Filters

− Preset

− Scaling Function

− Termination Resistor

Applications

− Measurement of Inclinations and

− Rotational Movements

− Construction Machines

− Cranes

− Mobile Platforms, Marine & Offshore

− Machinery

Summary of content (9 pages)

PAGE 1
HEAVY DUTY INCLI NO ME TER DEVI CENET INTERFACE Heavy Duty inclinometers are robust inclination sensors specially designed for applications involving rough handling and exposure to rigorous conditions. The die cast aluminium housing and the metal connector enhance the mechanical strength of the sensor and make it ideal for heavy duty usage. Main Features − Dual Axis Inclinometer ± 80° Programmable Parameters − − Single Axis Inclinometer 360° High Resolution: 0.
PAGE 2
HEAVY DUTY INCLI NO ME TER DEVI CENET INTERFACE Technical Data Electrical Data Model INC -080 INC -360 Measuring Range ± 80° 360° Number of Axes 2 1 Resolution 0.01° Accuracy (T = 10 °C to +40 °C)* 0.
PAGE 3
HEAVY DUTY INCLI NO ME TER DEVI CENET INTERFACE MTBF Data Failure Rate [FIT] 759 MTBF [Hours] 1,317,822 MTBF [Years] 150 The above mentioned data were calculated for electronics under the following conditions: SNA: Non-mobile operation Tu: 40°C - Mean component of ambient temperature Zf: Continuous operation for 8760 h per year Programmable Parameters Resolution per 1° The resolution parameter per 1° is used to program the desired number of steps per 1°. The values 1, 10 and 100 can be programmed.
PAGE 4
HEAVY DUTY INCLI NO ME TER DEVI CENET INTERFACE Mechanical Drawing – M12 Connector Output Dimensions in mm and [inches] For more detailed drawings please refer website.
PAGE 5
HEAVY DUTY INCLI NO ME TER DEVI CENET INTERFACE Mechanical Drawing – Cable Exit Dimensions in mm and [inches] For more detailed drawings please refer website.
PAGE 6
HEAVY DUTY INCLI NO ME TER DEVI CENET INTERFACE Measurement Axes INC-080 – Dual Axis Inclinometer INC-360 – Single Axis Inclinometer Page 6 DeviceNet Heavy Duty Datasheet Version: 20130507
PAGE 7
HEAVY DUTY INCLI NO ME TER DEVI CENET INTERFACE Pin Assignment The inclinometer is connected via a 5 pin M12 A-coded round connector or cable exit. (Standard M12, Male side at sensor, Female at connector counterpart or connection cable) Signal 5 pin M12 connector Cable Exit CAN Ground 1 Green VS Supply Voltage 2 Red 0 V Supply Voltage 3 Yellow CAN High 4 White CAN Low 5 Brown For more detailed information about setup, measurement axes and programming, refer CANopen Manual.
PAGE 8
HEAVY DUTY INCLI NO ME TER DEVI CENET INTERFACE INC 080 – Y axis Output Values (Factory Setting Resolution = 0.01) INC 080 – X axis Output Values (Factory Setting Resolution = 0.
PAGE 9
HEAVY DUTY INCLI NO ME TER DEVI CENET INTERFACE Models/Ordering Description Description Range Number of axis Type key INC- XXX- 360° (1 axis) 360 ± 80° (2 axis) 080 X- One for 360° Version 1 Two for ± 80° Version 2 XX XX- X Interface CANopen Version Software Version Mounting Vertical for 360° Version V Horizontal for ± 80° Version H X X- XX D1 01 Housing Material Heavy-Duty (Aluminium) H Inclinometer Series Version II Connection Connector Cable Exit ( Polyurethane ), Open
