Internal autorange power supply for
maximum  exibility (100 – 240 V~),
noise-free audio, superior transient
response plus low power
consumption for energy saving
P16-MB — Mounting Bracket
for P16-M
Mounting bracket for P16-M Digital
Personal Mixer
Attaches to standard mic, music or
drum stands
P16-D — 16-Channel Digital
ULTRANET Distributor
Distribution Hub for P16-I for
system expansion
1 ULTRANET input feeds
8 ULTRANET outputs (RJ-45)
Provides bus-power and 16-channel
signal transmission for all 8 outputs
Up to six P16-D ULTRANET
Distributors can be combined
for a total of forty-eight P16-M
Personal Mixers
Status LED indicators for RJ-45 input
and 8 RJ-45 outputs
Internal autorange power supply for
maximum  exibility (100 - 240 V~),
noise-free audio, superior
transient response plus low power
consumption for energy saving
Common Features
Extremely rugged construction
ensures long life even under the most
demanding conditions
Conceived and designed by
BEHRINGER Germany

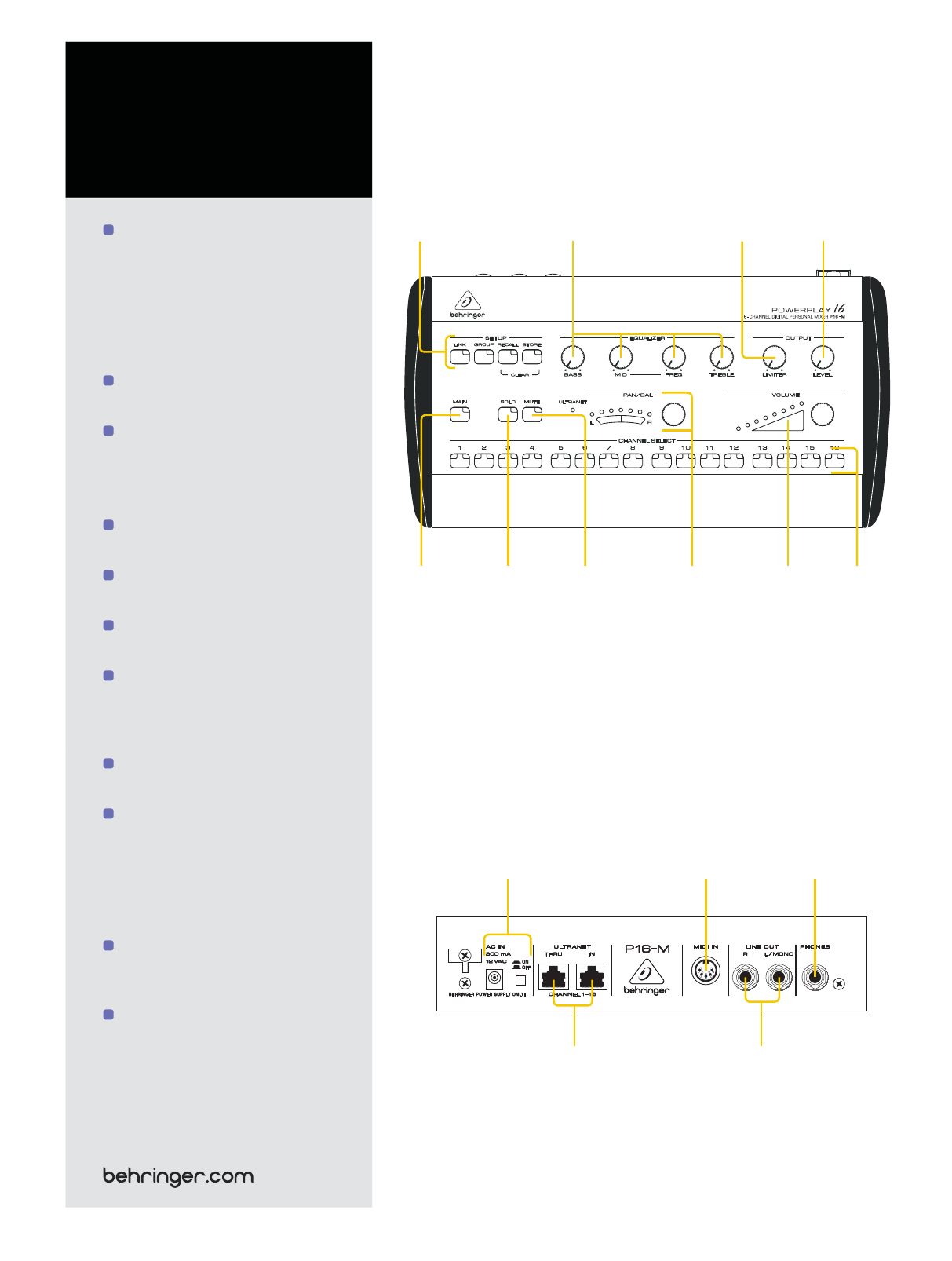

Rear View Panel
Front View Panel
SETUP
con guration
buttons allow user
to de ne groups,
plus store and
recall last mix
MAIN button
selects the MAIN
stereo bus
SOLO button
allows user
to listen to
selected inputs
MUTE button
allows user
to mute to
selected input
channel, stereo
linked pair or
pre-selected
group of
channels
PAN control
with meter sets
selected input
placement
within stereo
VOLUME control
adjusts level of
selected input,
stereo pair,
group or MAIN
stereo bus
CHANNEL SELECT
buttons each with
two LEDs (signal
and clip) indicate
currently selected
single channel,
stereo pair or
pre-assigned
groups
3-band EQUALIZER
with sweepable
MID FREQ control
provides tonal
adjustment
Adjustable
OUTPUT LIMITER
control to
protect ears and
headphones
OUTPUT LEVEL
controls volume
level present at
PHONES and
LINE OUT jacks
Power socket
and ON/OFF
switch
ULTRANET IN/
THRU connectors
for daisy-chaining
additional devices
MIDI IN port
provides
remote control
of all channels
by external
device such
as BEHRINGER
BCF2000,
BCR2000, etc.
PHONES jack
accepts standard
headphones
or wired in-ear
monitors
LINE OUT ¼" jacks
can be used to
connect to active
monitors, wireless
in-ear monitor
transmitters, etc.
POWERPLAY
