Fly screen protection function
If the fly screen protection function is activated, obstacle detection is activated after a revolution of the barrel of approx. 140° from
the upper limit position. If the roller shutter curtain meets an opened fly screen door, the drive stops and returns to the upper limit
position.
The fly screen protection function is deactivated on delivery.
Both limit positions must be set before the fly screen protection function can be activated.
Note
When both or individual limit positions are deleted, this set function is deleted as well.

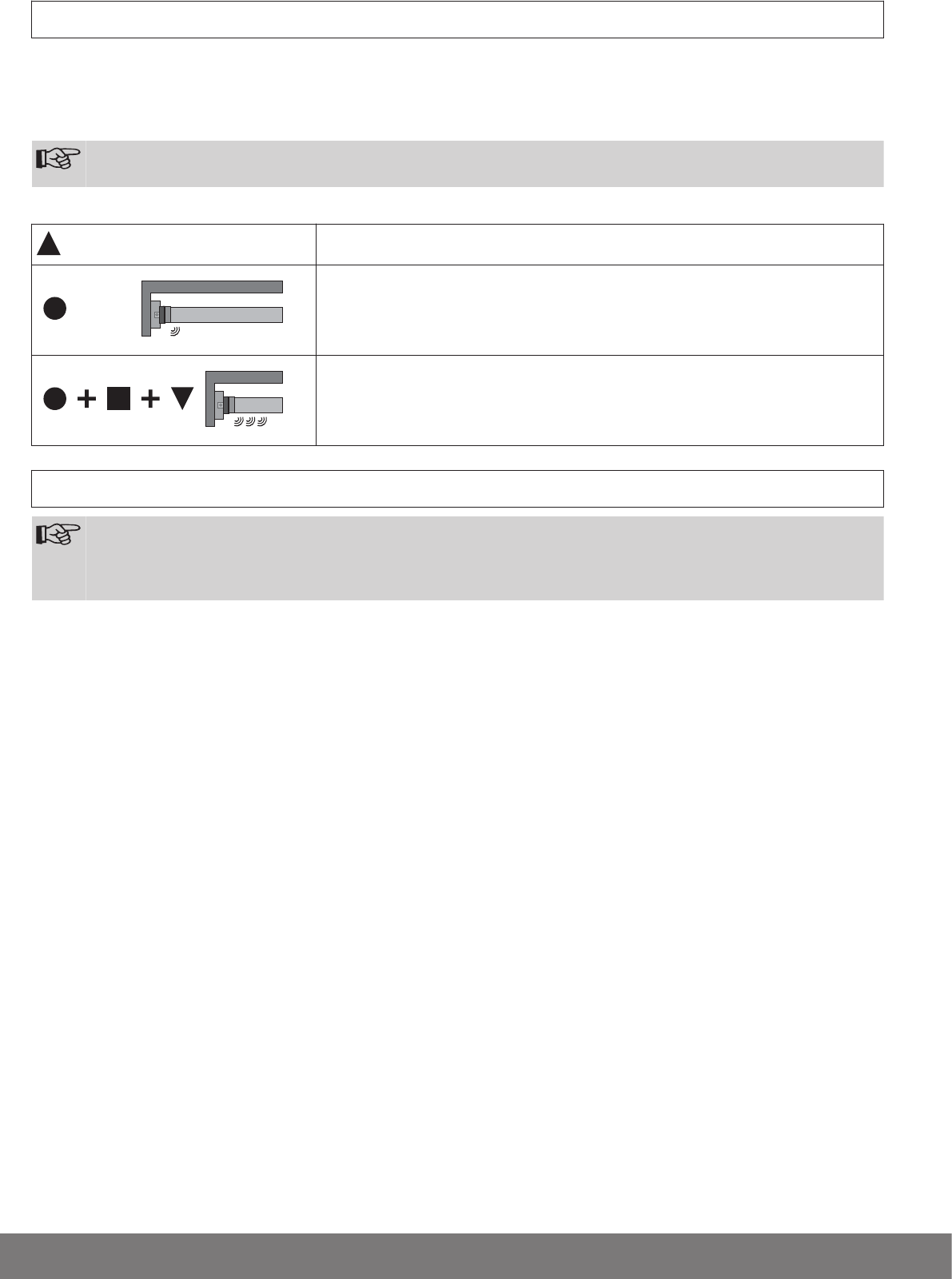

Activating/Deactivating the fly screen protection function
Open the shading solution to the upper limit position.
Press the programming button on the master transmitter for approx. 3 seconds.
[ The tubular drive makes a “click” sound to confirm.
Then re-press the programming button and also the STOP and UP buttons for ap‐
prox. 3 seconds.
Æ The tubular drive clicks 3 times to confirm.
Programming the run times
Note
This function is only available with MemoControl transmitters from the Becker Centronic range of control
units.
When both or individual limit positions are deleted, this set function is deleted as well.
Each tubular drive can each save one switching time for one UP and one DOWN cycle.
In the “Timer” slide switch position, this roller shutter action is repeated every 24 hours.
It does not matter what position the manual/auto slide switch is in when programming the switching time. Any stored switching
times are overwritten.
1. If necessary, run the roller shutter to the opposite limit position.
2. Wait for the time you wish the automatic drive command to be executed.
3. At the desired time, press and hold the relevant direction button until the roller shutter drive briefly stops after approx. 6 sec‐
onds and then continues to the limit position.
4. Release the direction button.
The tubular drive has saved the current time for this direction of travel.
