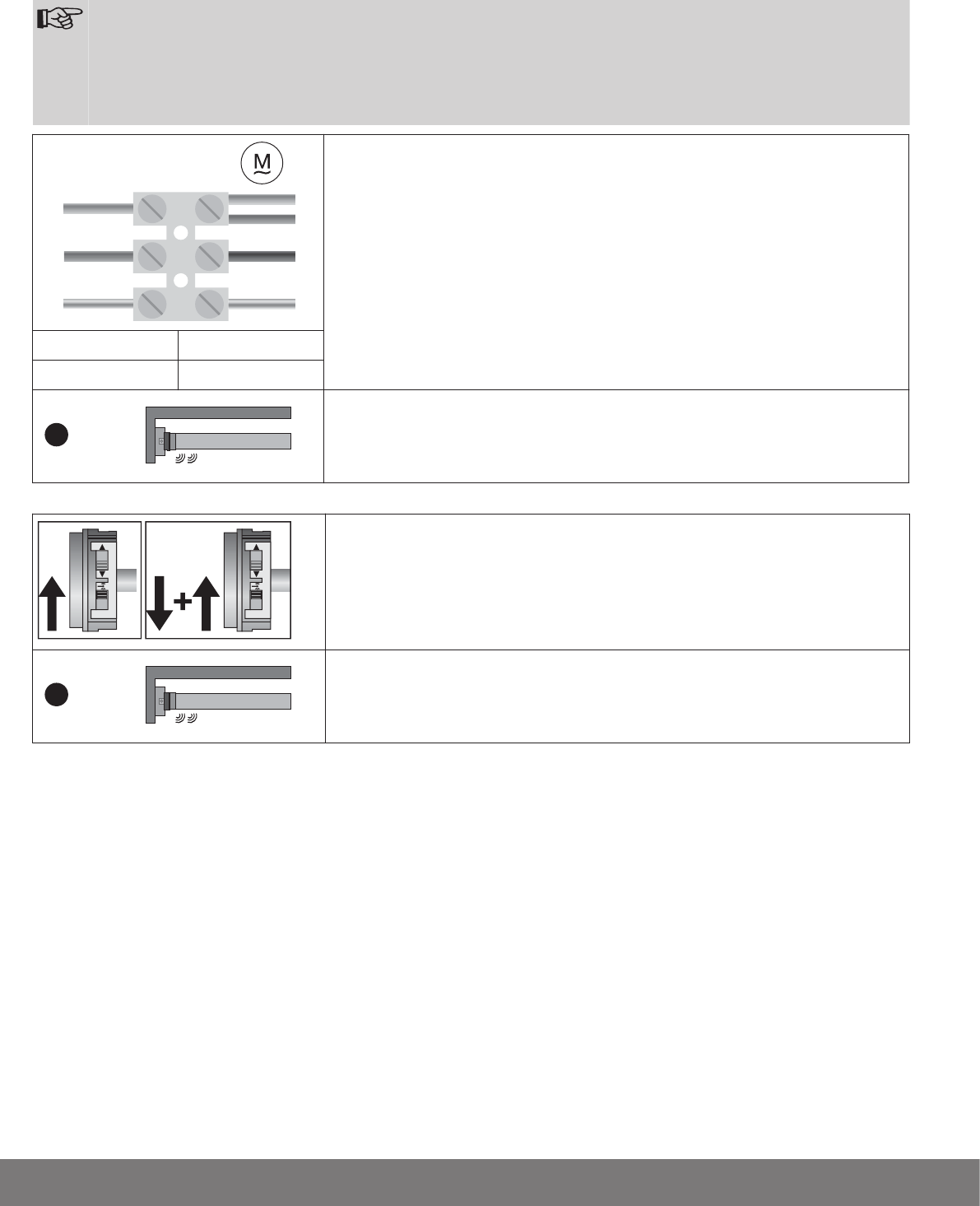

Overwriting the master
There are two ways to overwrite the master:
▪ Readying the tubular drive for programming by switching on the power
▪ Readying the tubular drive for programming with the radio switch
Readying the tubular drive for programming by switching on the power
Note
To ensure that the new master transmitter is programmed in the desired tubular drive only, all other tubular
drives which are connected to the same power supply must be deactivated from the programming mode. To do
so, after switching back on the power, execute a drive or stop command using the transmitter for the given
tubular drives or switch the radio switch from inside to outside. If the radio switch is already in this position,
switch it to the inside and back to the outside position.
N
1
2
1
2
4
3
4
230V AC / 50 Hz
L1
PE
Switch off the tubular drive power for 5 seconds, then switch it back on.
[ The tubular drive is ready to programme for 3 minutes.
1 = blue 3 = black
2 = brown 4 = green-yellow
Now press the programming button of the new master transmitter for 10 seconds.
[ The tubular drive makes a clicking sound to confirm.
Æ The new master transmitter is now programmed and the old master transmitter
overwritten.
Readying the tubular drive for programming with the radio switch
Switch the radio switch to the inside position. If the radio switch is already in this posi‐
tion, switch it to the outside and back to the inside position.
[ The tubular drive is ready to programme for 3 minutes.
Now press the programming button of the new master transmitter for 10 seconds.
[ The tubular drive makes a clicking sound to confirm.
Æ The new master transmitter is now programmed and the old master transmitter
overwritten.
