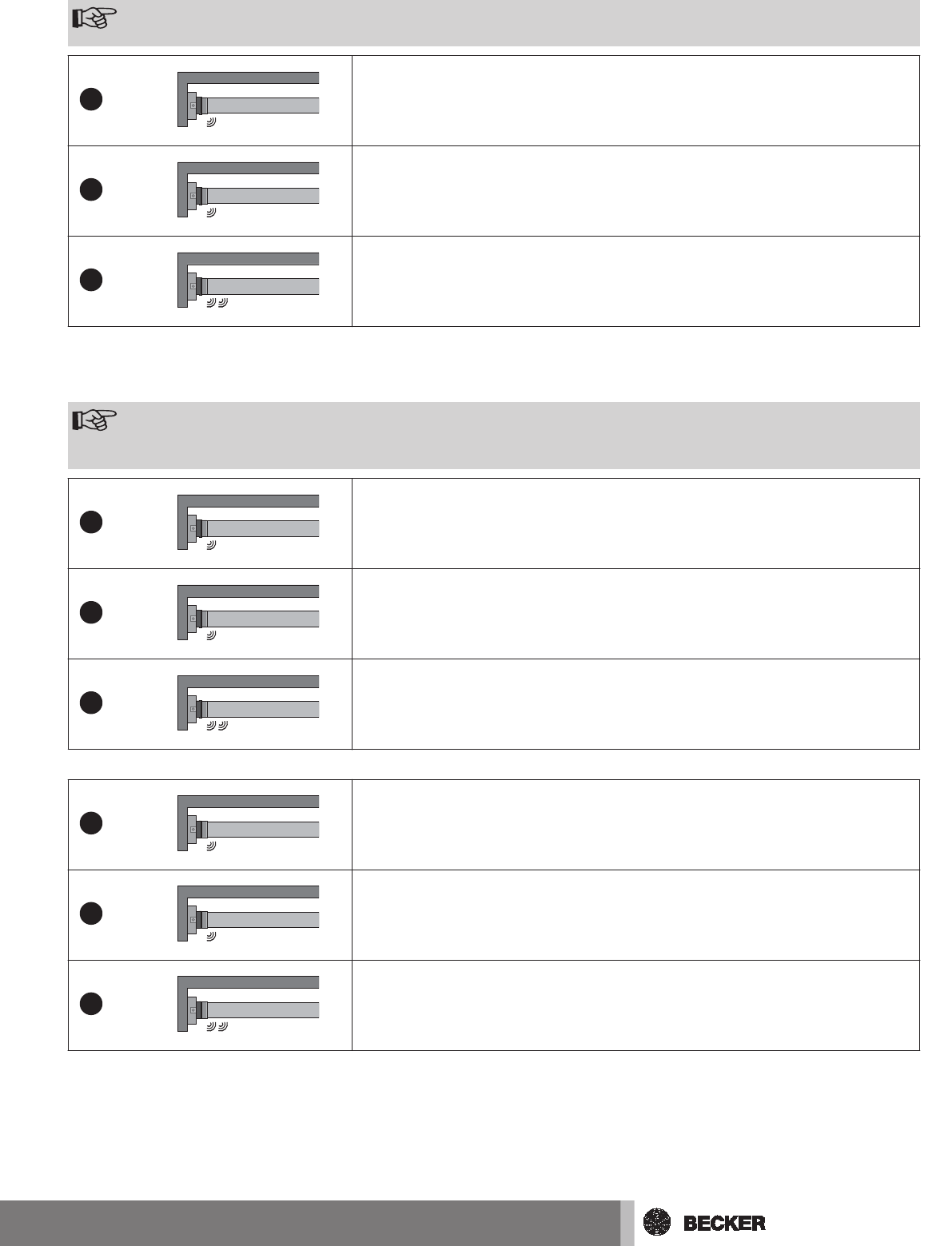

Programming additional transmitters
Note
In addition to the master transmitter, up to 15 further transmitters can be programmed in the tubular drive.
Press the programming button of the master transmitter for 3 seconds.
[ The tubular drive makes a “click” sound to confirm.
Now press the programming button of a new transmitter which has not yet been pro‐
grammed in the tubular drive for 3 seconds. Doing so activates the programming
mode of the tubular drive for a new transmitter for 3 minutes.
[ The tubular drive makes a “click” sound to confirm.
Now re-press the programming button of the new transmitter you wish to programme
for 3 seconds.
[ The tubular drive makes a clicking sound to confirm.
Æ The new transmitter is now programmed in.
Deleting transmitters
Deleting individual transmitters
Note
The programmed master transmitter cannot be deleted. It can only be overwritten (see Programming the master
transmitter [➙ 13]).
Press the programming button on the master transmitter for 3 seconds.
[ The tubular drive makes a “click” sound to confirm.
Now press the programming button of the transmitter to be deleted for 3 seconds.
[ The tubular drive makes a “click” sound to confirm.
Then re-press the programming button of the transmitter to be deleted for 10 sec‐
onds.
[ The tubular drive makes a clicking sound to confirm.
Æ The transmitter is now deleted from the tubular drive.
Deleting all transmitters (except the master transmitter)
Press the programming button on the master transmitter for 3 seconds.
[ The tubular drive makes a “click” sound to confirm.
Re-press the programming button on the master transmitter for 3 seconds.
[ The tubular drive makes a “click” sound to confirm.
Re-press the programming button on the master transmitter for 10 seconds.
[ The tubular drive makes a clicking sound to confirm.
Æ All transmitters (except the master transmitter) are now deleted from the receiver.
