Note
Once set, the limit positions can only be deleted with the master transmitter. Deleted limit positions are dis‐
played on the limit position status indicator.

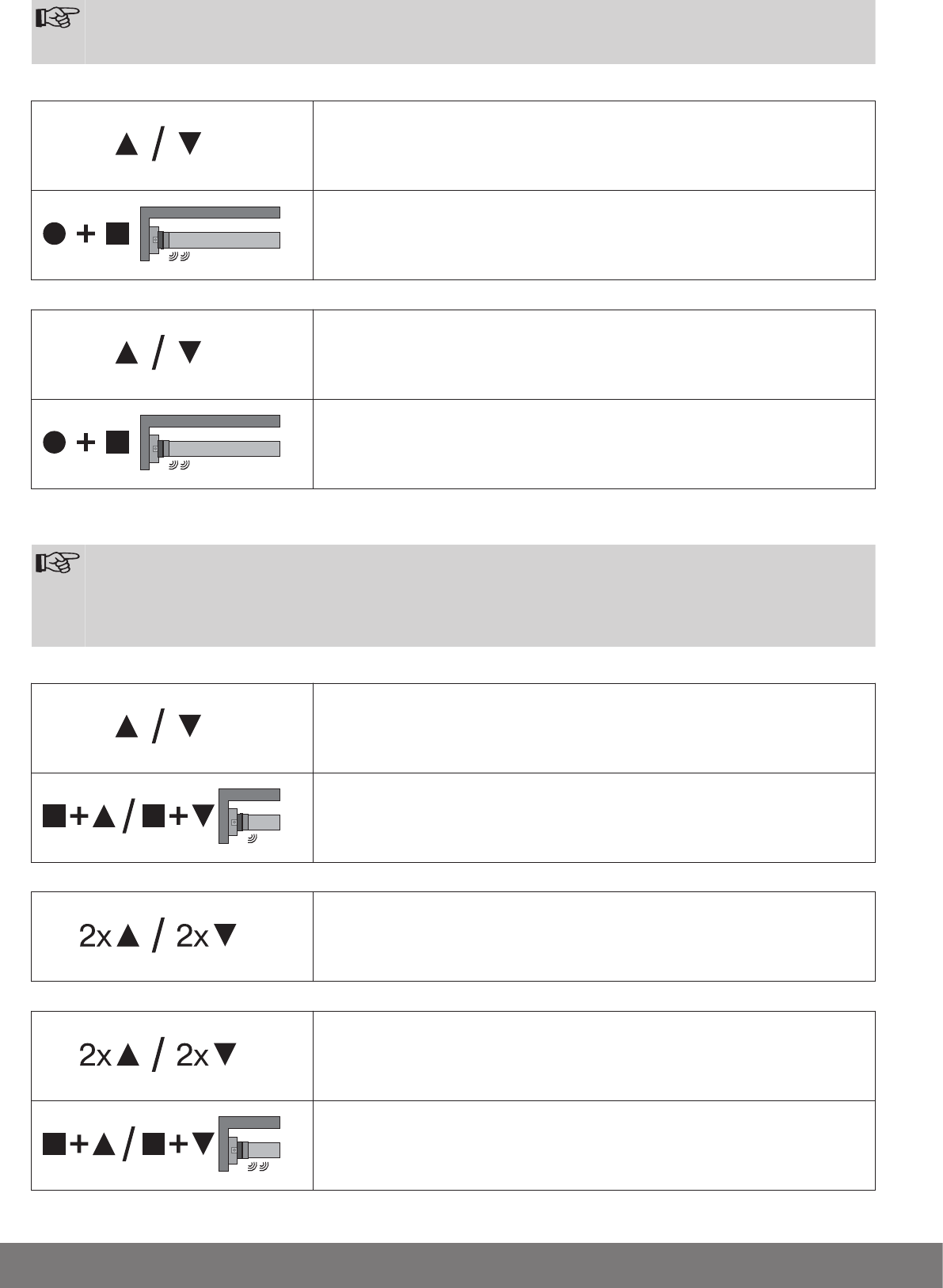

Deleting individual limit positions
Open/close to the limit position to be deleted.
Press the programming button and, within 3 seconds, also press the STOP button
and hold the two buttons down for 10 seconds.
[ The tubular drive makes a clicking sound to confirm.
Æ The limit position is now deleted.
Deleting both limit positions
Open/close the shading solution to a point between the limit positions.
Press the programming button and, within 3 seconds, also press the STOP button
and hold the two buttons down for 10 seconds.
[ The tubular drive makes a clicking sound to confirm.
Æ The limit positions are now deleted.
Intermediate positions I + II
Note
The intermediate positions I + II are freely selectable positions for the shading solution between the two limit
positions. Each travel button can be assigned one intermediate position. Both limit positions must be set be‐
fore the intermediate position is set.
When both or individual limit positions are deleted, both intermediate positions are deleted as well.
Setting the desired intermediate position
Open/close the shading solution to the desired intermediate position.
Press the STOP button and, within 3 seconds, also press the desired travel button
and hold the two buttons down.
[ The tubular drive makes a “click” sound to confirm.
Æ The intermediate position is now saved.
Setting the desired intermediate position
Press the travel button for the desired intermediate position twice within one second.
Æ The shading solution runs to the intermediate position assigned to the travel but‐
ton.
Deleting the desired intermediate position
Open/close the shading solution to the desired intermediate position.
Press the STOP button and, within 3 seconds, also press the travel button assigned
to the intermediate position and hold the two buttons down.
[ The tubular drive makes a clicking sound to confirm.
Æ The intermediate position is now deleted.
