Upper point to lower stop
Open to the desired upper limit position.
Press the programming button and, within 3 seconds, also press the UP button and
hold the two buttons down.
[ The tubular drive makes a “click” sound to confirm.
Then close to the permanent lower stop.
[ The tubular drive switches off automatically.
Æ The limit positions are now set.

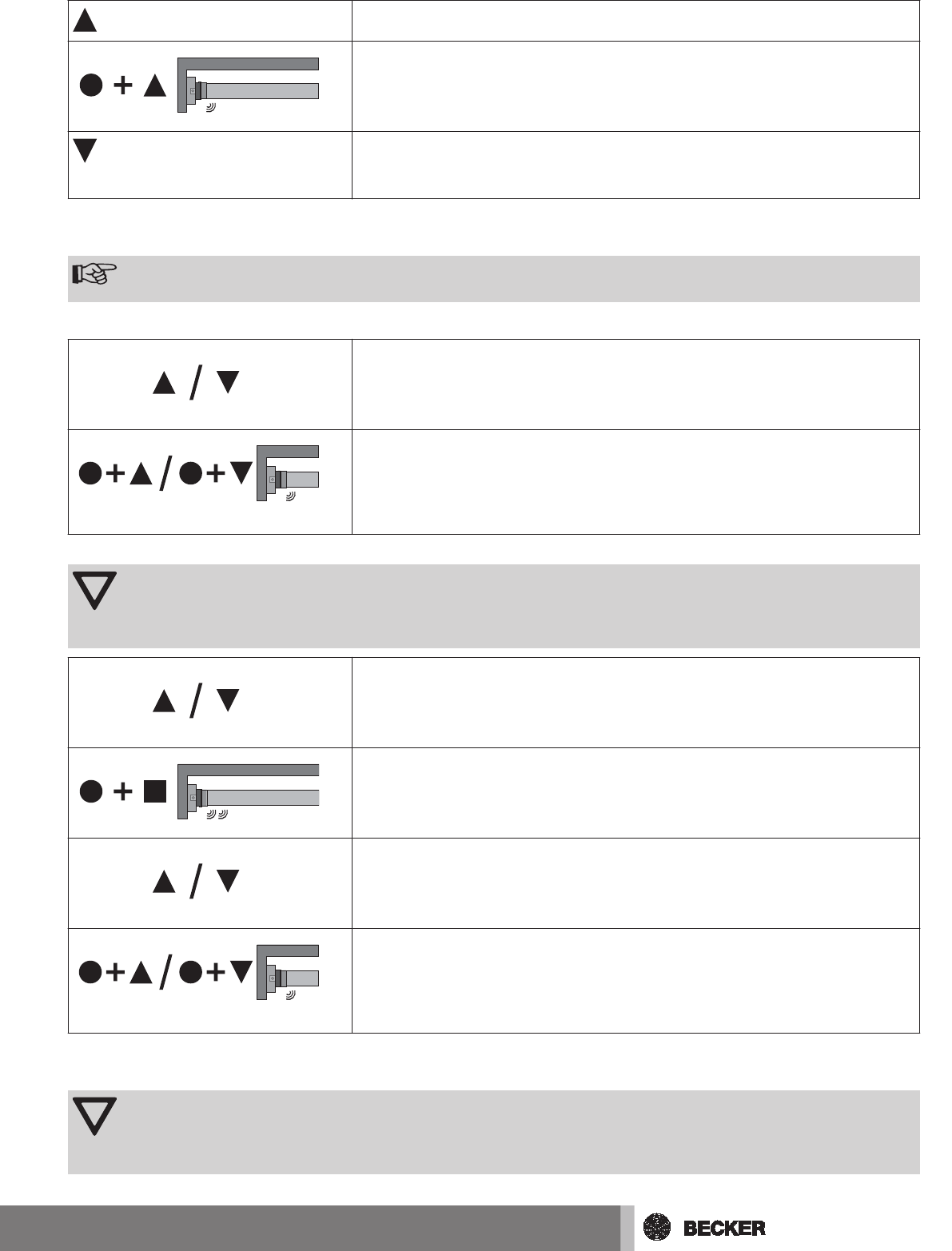

Changing the set limit positions
Note
Once set, the limit positions can only be changed with the master transmitter.
1) Shortening the range of travel (the desired limit position is located inside the current range of travel)
Open/close to the desired new limit position.
Press the programming button and, within 3 seconds, also press the DOWN button
for the lower limit position or the UP button for the upper limit position and hold the
two buttons down.
[ The tubular drive makes a “click” sound to confirm.
Æ The new limit position is now saved.
2) Extending the range of travel (the desired limit position is located outside the current range of travel)
Attention
When both or individual limit positions are deleted, all the other set functions (intermediate position I, inter‐
mediate position II, upper anti-freeze mechanism, obstacle detection, run times, fly screen protection func‐
tion) are deleted as well.
Open/close to the limit position in the direction in which you wish to extend the range
of travel.
Press the programming button and, within 3 seconds, also press the STOP button
and hold the two buttons down for 10 seconds.
[ The tubular drive makes a clicking sound to confirm.
Æ The limit position is now deleted.
Open/close to the desired new limit position.
Press the programming button and, within 3 seconds, also press the DOWN button
for the lower limit position or the UP button for the upper limit position and hold the
two buttons down.
[ The tubular drive makes a “click” sound to confirm.
Æ The new limit position is now saved.
Deleting the limit positions
Attention
When both or individual limit positions are deleted, all the other set functions (intermediate position I, inter‐
mediate position II, upper anti-freeze mechanism, obstacle detection, run times, fly screen protection func‐
tion) are deleted as well.
15
