Programming the master transmitter
Press the programming button for 3 seconds when it is ready to programme.
[ The tubular drive makes a clicking sound to confirm.
Æ The programming process is now complete.
Note
If a transmitter is already programmed on the receiver, press the programming button for 10 seconds.
Checking that the running direction is correct
Note
It is only possible to change the direction of rotation if no limit position has been set.
Press the UP or DOWN button
[ The shading solution runs in the desired direction.
Æ Direction switch is OK.
If the shading solution runs in the wrong direction, the running direction must be switched. Proceed as follows:

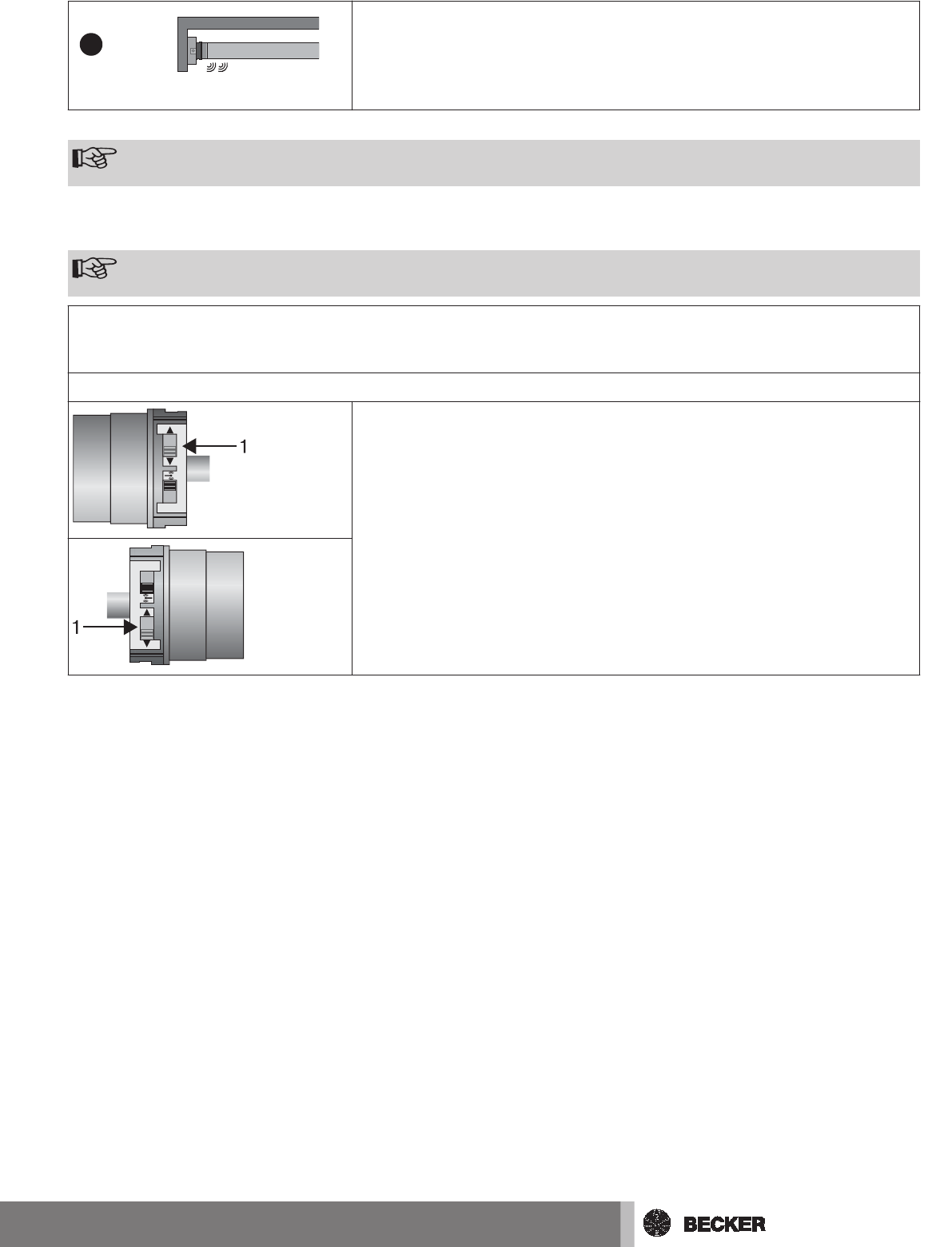

Switch the direction switch (1) to the opposite position.
Æ The shutter direction is now changed.
Check the shutter direction again.
Intelligent installation management
Limit position status indicator
A brief stopping and restarting indicates that no limit position has been set in that direction of movement.
Completion of installation following automatic setting of limit positions
The drive saves the limit position permanently once the upper limit position is reached 3 times in succession. Installation is then
complete. If the limit position is set above a point, this is stored permanently.
