First operation

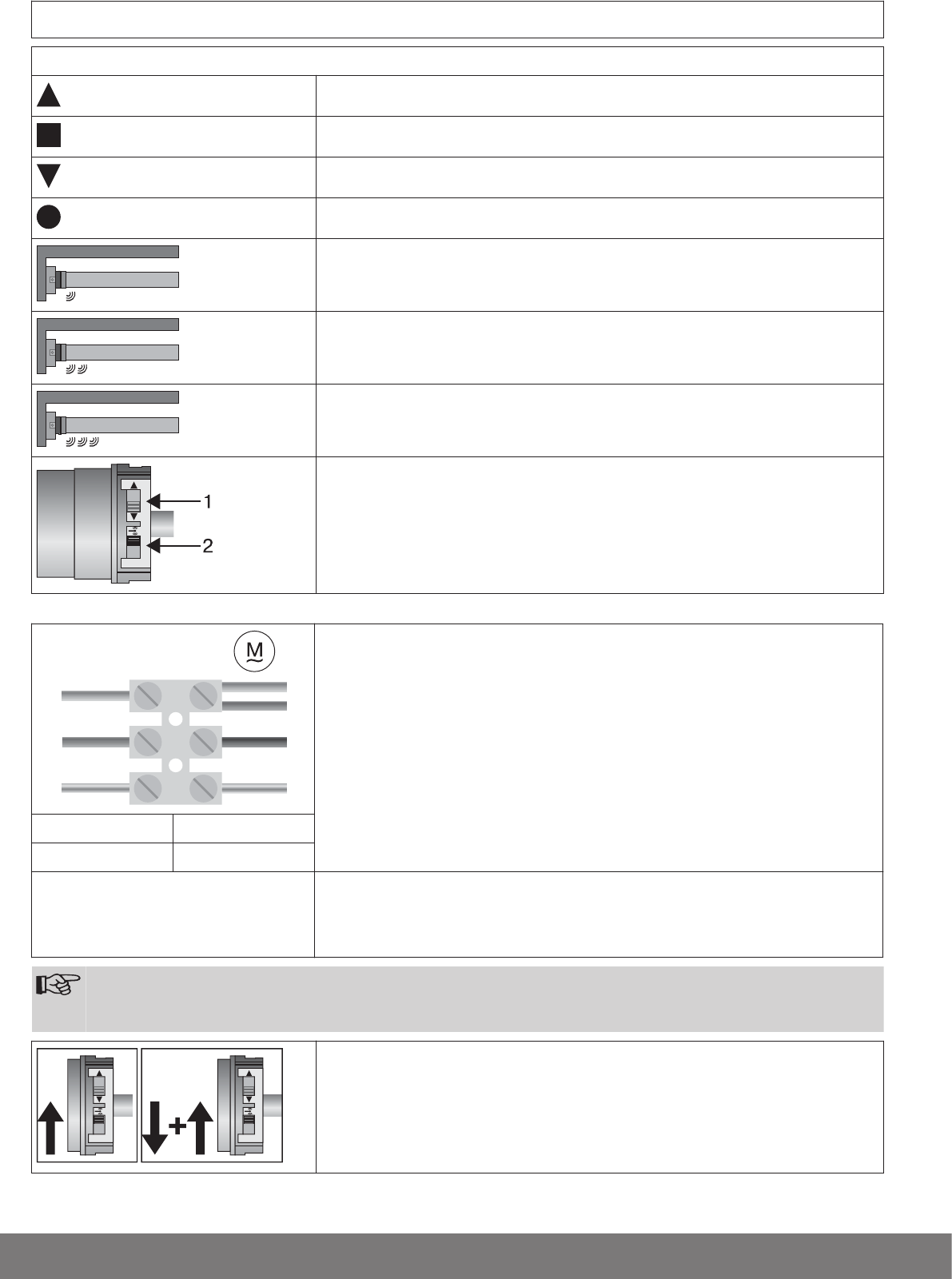

Explanation of symbols
UP button
STOP button
DOWN button
Programming button
The tubular drive clicks once to confirm
The tubular drive clicks twice to confirm
The tubular drive clicks three times to confirm
1 = direction switch
2 = radio switch
N
1
2
1
2
4
3
4
230V AC / 50 Hz
L1
PE
Connecting the tubular drive
Connect the tubular drive to the power supply.
1 = blue 3 = black
2 = brown 4 = green-yellow
Readying the tubular drive for programming
Readying the tubular drive for programming by switching on the power
[ Switch on the power.
Æ The tubular drive is ready to programme for 3 minutes
Note
If several tubular drives are to be connected in parallel, you can deactivate the programming mode on one tub‐
ular drive by switching the radio switch to the outside position after turning the power on.
Readying the tubular drive for programming with the radio switch
Switch the radio switch to the inside position. If the radio switch is already in this posi‐
tion, switch it to the outside and back to the inside position.
Æ The tubular drive is ready to programme for 3 minutes
