The return may be attached to either a desk or a cabinet.
IF ATTACHING TO A DESK—
COMPATIBLE WITH 6101, 6102:
Connect the (C3) Connector Plate to the
underside of (C2) Top Frame using 2 (H2)
Flathead Screws and (T1) Hex Wrench. Make
sure notch is facing outward. Go to step 4.
IF ATTACHING TO A CABINET—
COMPATIBLE WITH 6114, 6116, 6117:
Connect the (C3) Connector Plate to the topside of (C2) Top Frame using 2 (H2) Flathead Screws.
Make sure notch is facing outward. Go to step 8.
ASSEMBLY

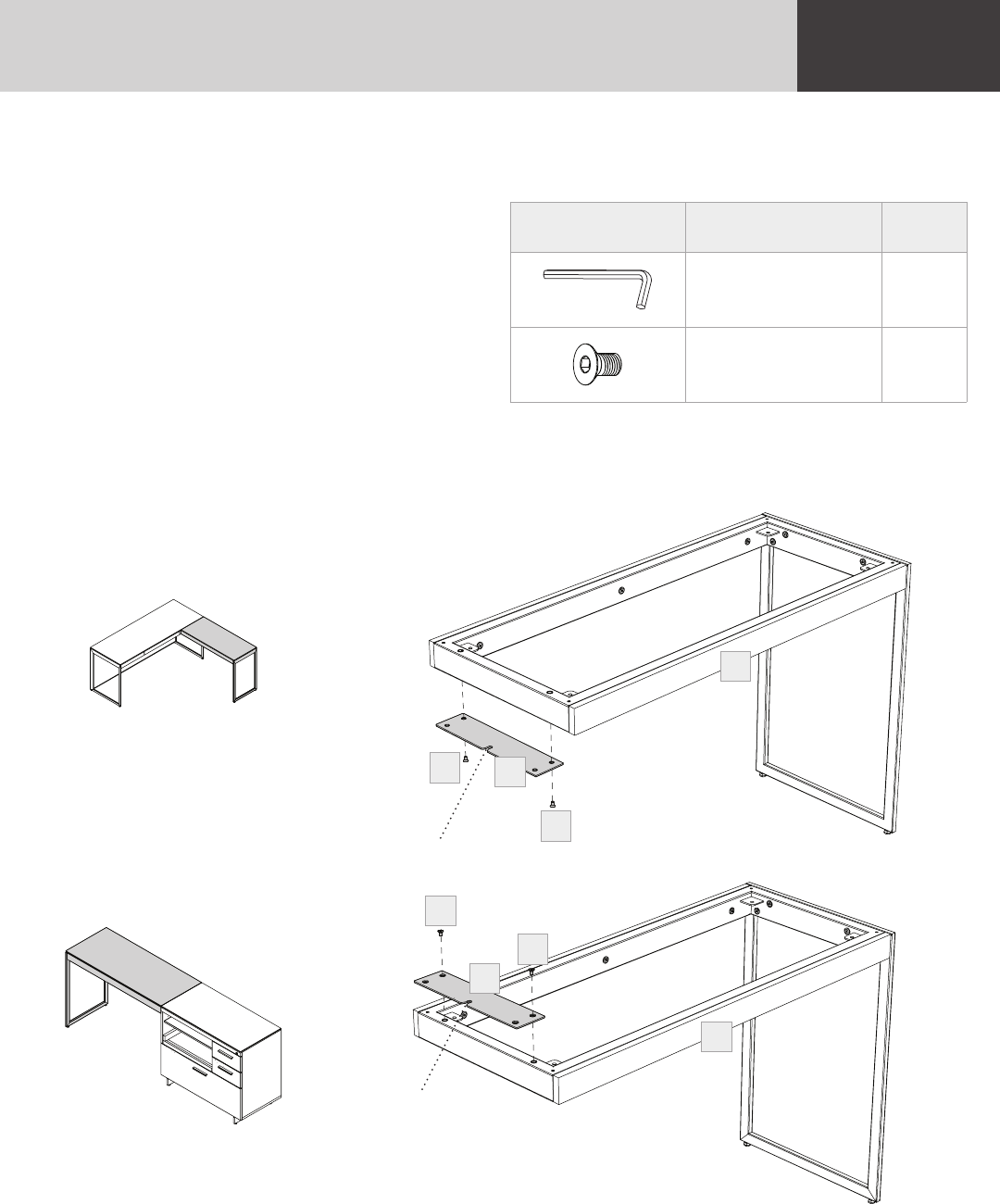

STEP 3. INSTALL CONNECTOR PLATE
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H2-FLATHEAD SCREW 2
Connecting to desk
plate goes on bottom
Connecting to cabinet
plate goes on the top
notch
notch
C3
C3
H2
H2
C2
C2
H2
H2
