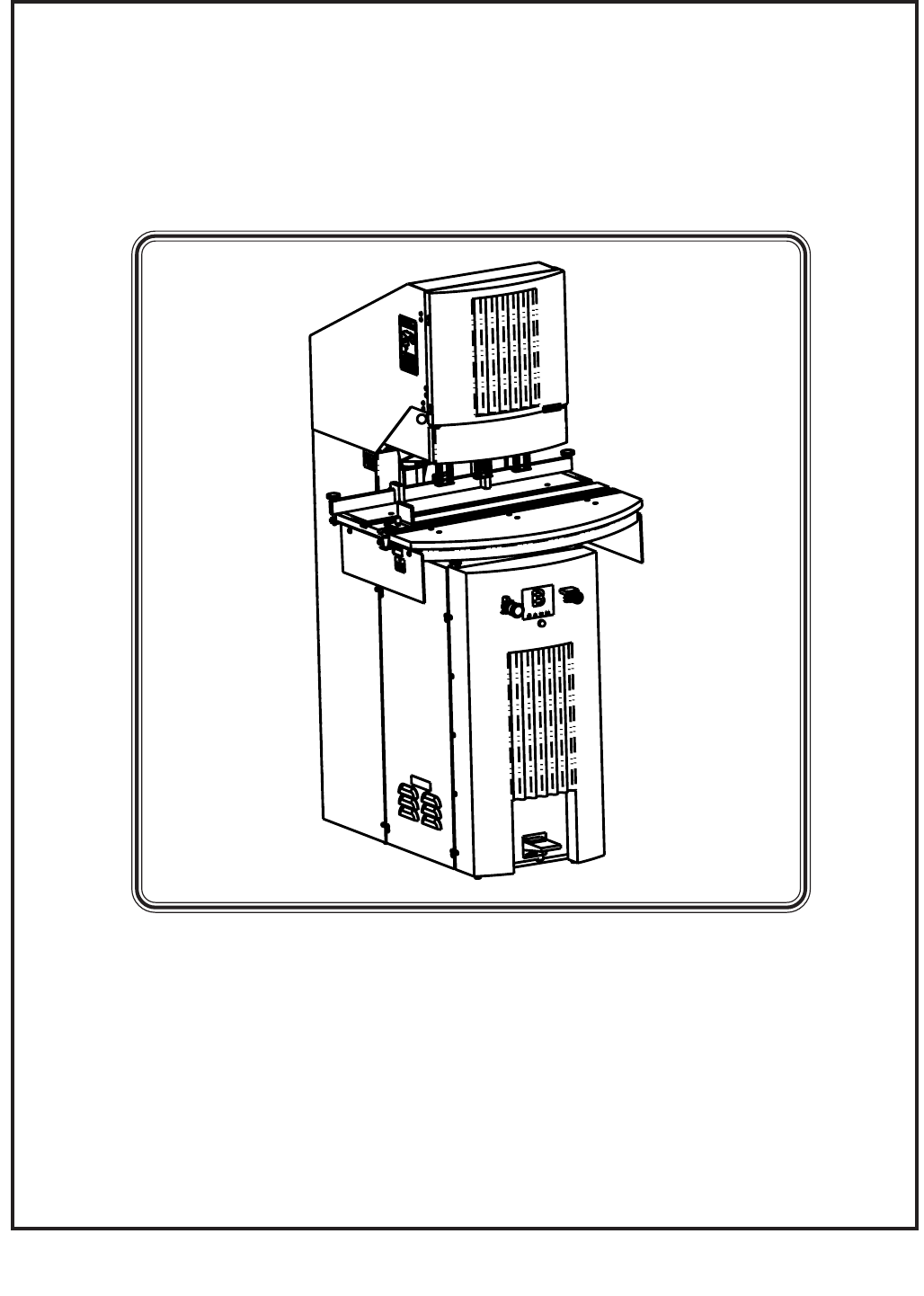

D3 DRILL INSTRUCTION & PARTS MANUAL ©Baumfolder Corp., 2003 Printed in U.S.
© BAUMFOLDER CORPORATION 2003 All Rights Reserved WARNING • Do not operate this machine without all guarding in place. • Do not make adjustments or perform maintenance on this machine with power on. • Keep the machine and the work area clean and free of spills to prevent accidents. • Be sure to replace any safety decals that may have been detached for any reason.
Contents FUNDAMENTAL SAFETY ............................................................................................................... 4 INSTRUCTIONS ................................................................................................................................ 4 SECTION 1: MAIN ASSEMBLIES ............................................................................................................... 1-1 MAIN ASSEMBLY .....................................................................
Carefully remove the wood frame and look in waste can covers to find these items. Back gage is located inside of door on left side of Drill. Be sure to check off the parts received against the packing list. Examine the machine carefully for any physical signs of shipping damage. D3 PAPER DRILL Your new D3 Paper Drill has been designed to provide you with years of useful service, provided it is installed, maintained and operated according to the instructions contained in this manual.
ELECTRICAL SYSTEM Check the serial number tag on the top of the head casting (next F) If bits seem to stall when drilling, the belt may need to be to tensioner) for voltage/phase/hertz and amperage required. tighter. This tag also lists the time delay fuse amperage and the wire size for the supply conductor. G) For adjusting the depth of the drill bits, rotate the brass knurled knob on the drill head. The proper drill bit depth is a slight indentation into the wood block.
7. USE DRILL EXTENSIONS DRILL HEAD AND BIT TIPS Drill extensions help chips flow up into the spindle and out of the ejection slot. There are two sizes of extensions: one extension fits 1/8" through 5/32" drills; one extension fits 3/16”, 7/32”, and 1/4" drills. The larger diameter drills do not need extensions. Extensions help prevent drill breakage, especially when drilling coated stock. 1. KEEP DRILLS SHARPENED A dull drill bit can be a major cause of drill bit breakage.
SPECIFICATIONS DRILLING: ELECTRICAL: Maximum number of drilling heads: 3 Motors: 1 hp pump 1 hp spindle Drill bit sizes available: 1/8" to 1/2" Available in:208-22OV/1 phase/60 hz at 25 amps 208-22OV/1 phase/50 hz at 25 amps Max drilling capacity: 3 heads with 3/8” drill bits - 2” max. The number of 1/2” bits that can be used will vary due to many variables including: paper types, lift size, drill descent, speed, etc.
ACTUAL DRILL SIZES DIAMETER: INCHES/(METRIC) 1/8" 5/32" 3/32" 7/32" 3-1mm 4mm 5mm 5-5mm 1/4" 6mm 9/32" 5/16" 7mm 8mm 11/32" 9mm 3/8" 9-5mm 13/32" 10mm 7/16" 11mm 1/2" 12-5mm 2" 50mm 2" 50mm 2" 50mm 2" 50mm CAPACITY: INCHES/(METRIC) 1" 1-1/8" 1-1/2" 1-3/4" 2" 2" 2" 2" 25mm 25mm 35mm 40mm 50mm 50mm 50mm 50mm TP10429A 8
TROUBLESHOOTING PROBLEM 1) Drill heads won’t come down POSSIBLE SOLUTIONS a) Check motor rotation of drive shaft with arrow on motor. Switch two wires of the incoming electrical cable to correct rotation. b) Relief valve may need adjusting. Contact the Baum Dealer where you purchased your D3 drill for assistance.
