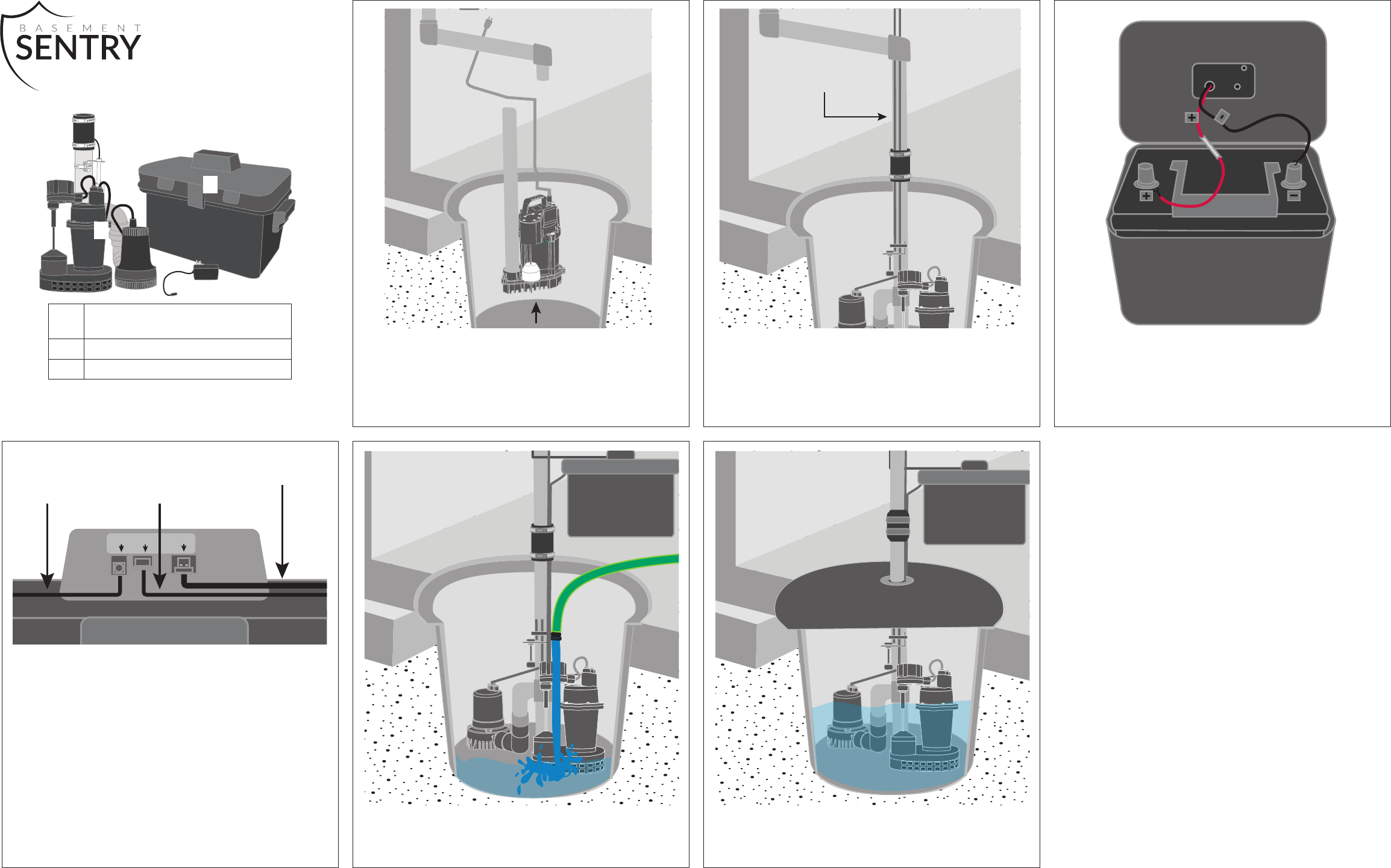

1. Unplug the existing sump pump and separate

it from the discharge pipe. Remove the pump

from the sump basin.

2. Place the replacement combo system in the

basin and connect it to the existing discharge

pipe.

3. Place a fully-charged Basement Sentry brand

battery in the battery box. Connect the leads

inside the battery box from the controller to the

battery: Red (+) to battery Red (+), Black (-) to

battery Black (-)

NOTE: The alarm will sound after connecting

the battery. It will continue to sound until all

connections are made and the oat switch is in

the down position.

4. Connect system wires to the controller on the

top of the battery box lid.

NOTE: The pump will continue to run for an

additional 10 seconds after the oat has been

lowered. The alarm will continue to sound while

the pump is working.

5. Fill the basin with water to check operation.

6. Install a basin cover and gasket on top of the

basin.

Schedule 40

PVC pipe

ADAPTER

FLOAT

SWITCH PUMP

AC Adapter

Cord

Float Switch

Cord

Pump Cord

QUICK START GUIDE. SEE INSTRUCTION

MANUAL FOR COMPLETE DETAILS.

WARNING:

FOR YOUR PROTECTION, ALWAYS DISCONNECT

PUMP FROM POWER SOURCE BEFORE HANDLING.

BATTERY ACID IS CORROSIVE. DO NOT SPILL ON

SKIN, CLOTHING OR BATTERY CHARGER. WEAR

EYE AND HEAD PROTECTION WHEN WORKING

WITH BATTERY. CONNECT AND DISCONNECT DC

OUTPUT TERMINALS ONLY AFTER REMOVING THE

CHARGER FROM THE AC OUTLET. NEVER ALLOW

THE DC TERMINALS TO TOUCH EACH OTHER.

KEEP SPARKS AND FLAME

(

PILOT LIGHT

)

AWAY

FROM BATTERY.

BE SURE TO READ AND UNDERSTAND

INSTRUCTIONS BEFORE INSTALLING OR

OPERATING THIS PUMP.

SUMP PUMP

COMBO

Pre-assembled

Back-up Sump

Pump System

MODEL #

STBC101

BasementSentry.com Toll Free Help Line: 1-800-742-5044

SW1475 A

A Primary/backup pump and pipe

assembly

B Battery box with built-in controller

C AC wall adapter

Summary of content (2 pages)

PAGE 1
SUMP PUMP COMBO Pre-assembled Back-up Sump Pump System Schedule 40 PVC pipe MODEL #STBC101 B A C A B Primary/backup pump and pipe assembly Battery box with built-in controller C AC wall adapter 1. Unplug the existing sump pump and separate it from the discharge pipe. Remove the pump from the sump basin. 2. P lace the replacement combo system in the basin and connect it to the existing discharge pipe. QUICK START GUIDE. SEE INSTRUCTION MANUAL FOR COMPLETE DETAILS.
PAGE 2
SISTEMA COMBINADO CON BOMBA DE SUMIDERO Sistema de bomba de sumidero de reserva pre-ensamblado Tubería de PVC Schedule 40 MODELO #STBC101 B A C A Conjunto de bomba principal/reserva y tubería B Caja de batería con controlador incorporado C Adaptador de pared de CA GUÍA DE INICIO RÁPIDO. CONSULTE LOS DETALLES COMPLETOS EN EL MANUAL DE INSTRUCCIONES. Cable de adaptador de CA Cable de interruptor de flotador FLOAT ADAPTER SWITCH 1.
