FULL TIGHTENING
NO FORCE

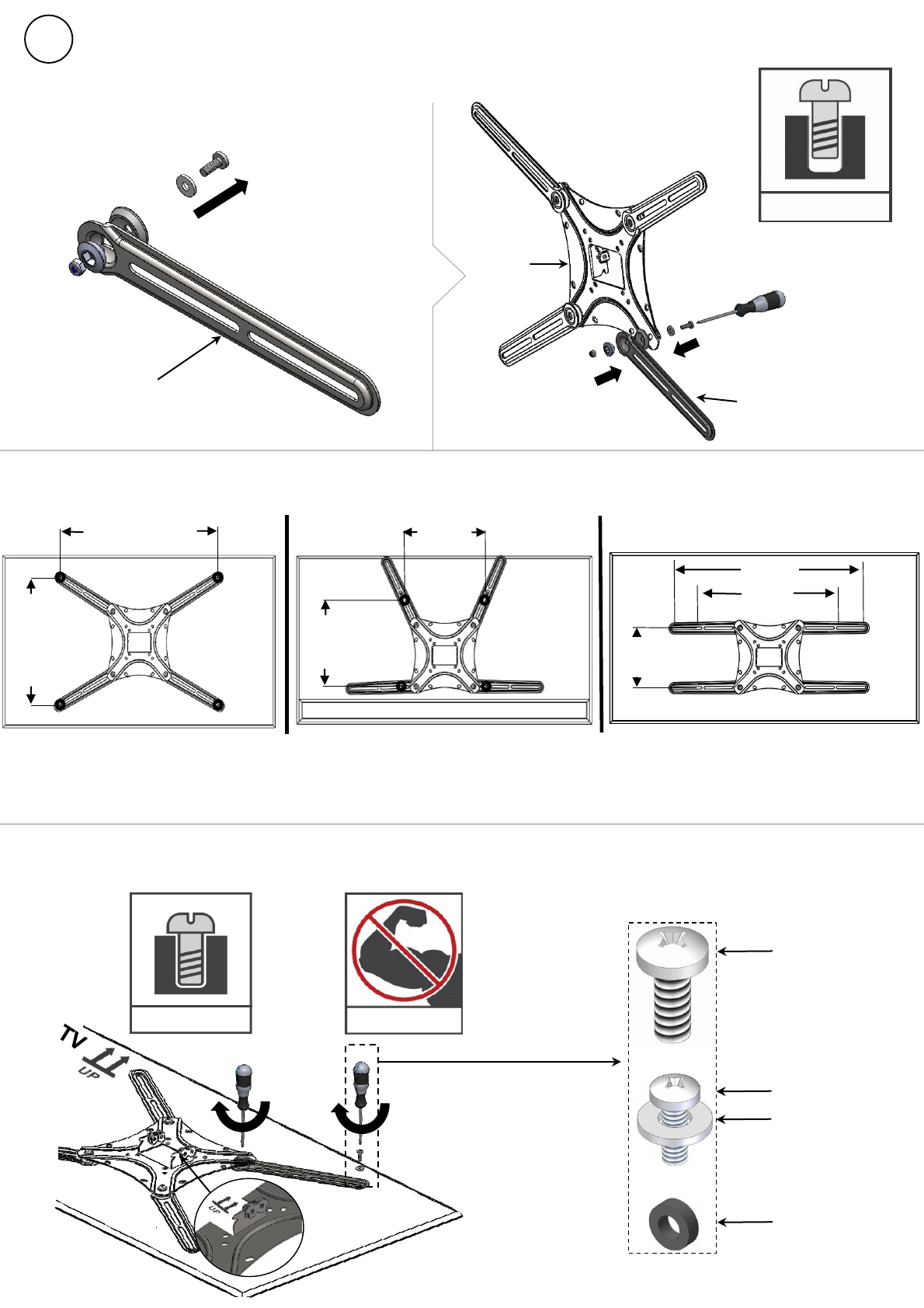

Position the Adaptors according to your TV’s hole pattern
Connect the TV Plate and the Adaptors to the TV
300mm
Max. 600mm
Max.
400mm
300mm
300mm
G
G
F
1b
Hole pattern above 200x200 mm and up to 600x400 mm:
Disassemble the screws, connect the 4 Adaptors to the TV Plate
and reassemble the screws.
PARTIAL
TIGHTENING
400mm
600mm
Z1/Z5
Z4
Z3/Z6
Z7
Optional
200mm
For more positioning options please turn to the last page
