11.Alignment
11.2 Adjusting screen orientation
By default, the projector is configured for “frontal projection - desktop installation”. If you choose to install your projector in
other setups, be sure to adjust the screen orientation to achieve the correct projection mode.

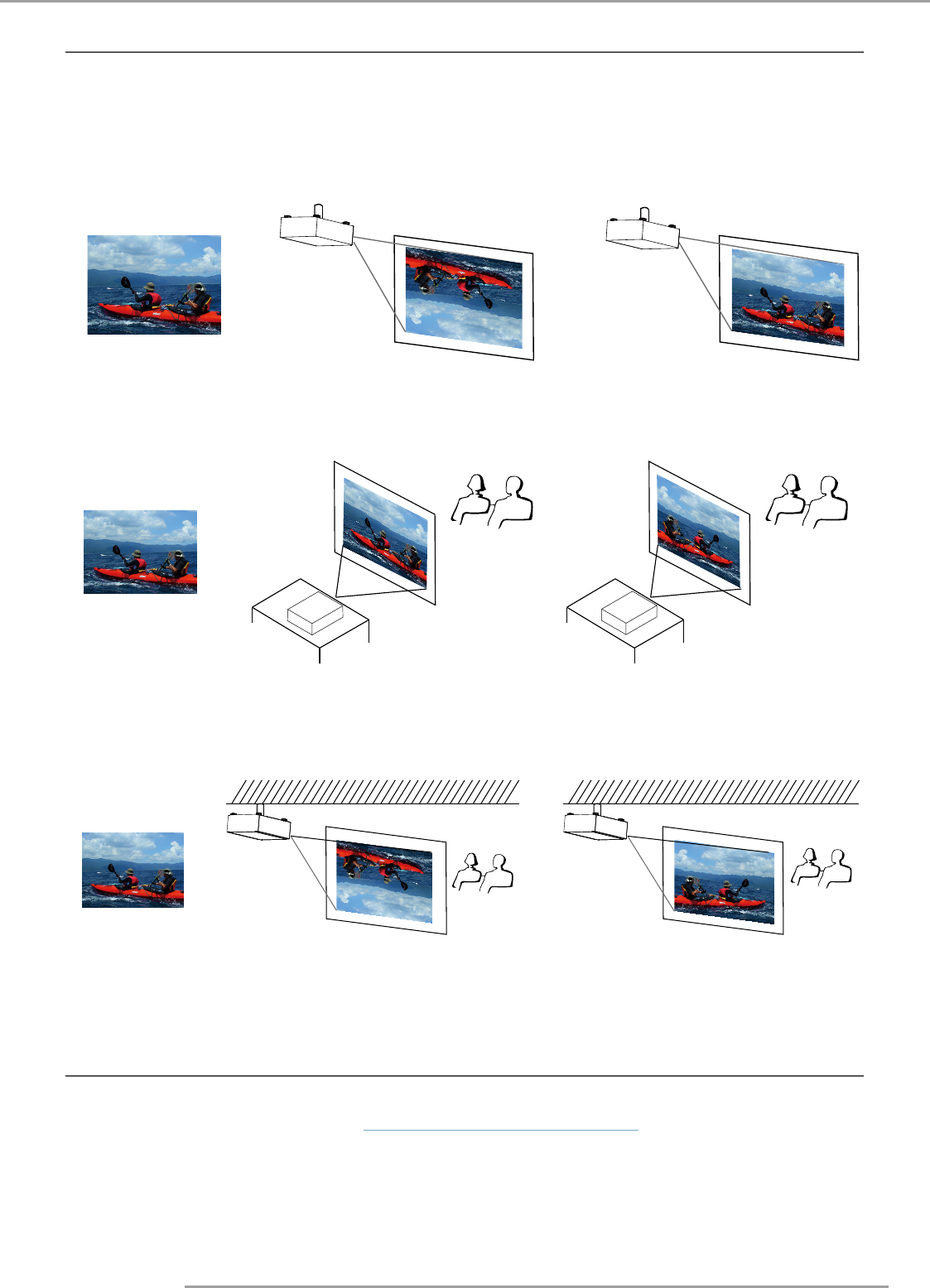

Front projection - ceiling mode
Press HOME Advanced ALIGNMENT Ceiling Mode and choose ON; the projector is now configured for “frontal
projection - ceiling mode”.
Correct Picture
canoe
canoe
canoe
Rear projection - desktop installaion
Press HOME Advanced ALIGNMENT Rear Projection and choose ON; the projector is now configured for “rear
projection - desktop installation”.
canoe
Correct Picture
canoe
canoe
Rear projection - ceiling mode
Press HOME Advanced ALIGNMENT Rear Projection and choose ON;
press HOME once more Advanced ALIGNMENT Ceiling Mode and choose ON
canoe
canoe
Correct Picture
canoe
11.3 Rear Projection
The default of the Rear Projection setting is Off.
See 11.2 Adjusting screen orientation, refer to page 55: 11.2 Adjusting screen orientation
