4. Input & Communication
4.5 Connecting the projector to other devices

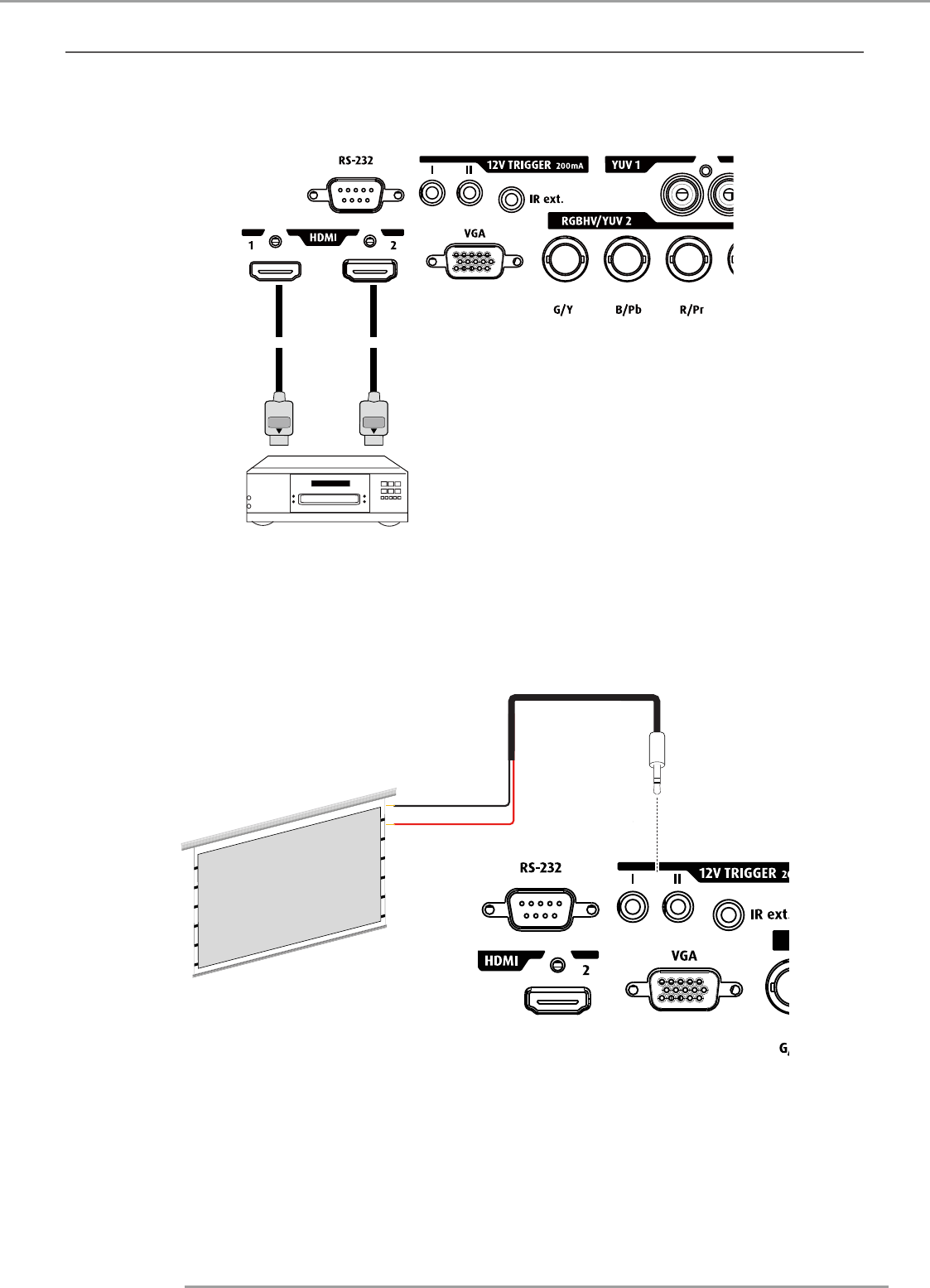

HDMI connection
Signals from image source offer the best projection image quality when sent through HDMI. Therefore, try to use input
devices with HDMI output as the source of image.
HDMI/DVI input source
(BD/HD-DVD/DVD player, HD set-top-box,
gaming consoles and so forth)
12V Trigger connection
If your home theatre system includes a projector screen, screen cover or other 12V Trigger equipment, please connect
such device/equipment to the projector’s 12V Trigger output as illustrated.After you have done so, Your screen will lower
automatically whenever you turn on your projector for your convenience.
Tip = +12V
Sleeve = Ground
Retractable screen or other
12V device
