PJWU-101B 17/10/2014
24
4. Input & Communication
8. RGBHV/YUV2
Optional multi purpose input which can be inserted in the free slots.
RS232 input (Sub-D) port
Input Signal G/Y B/Pb R/Pr H V
RGBHV G B R H V
Composite Video Y Pb Pr - -

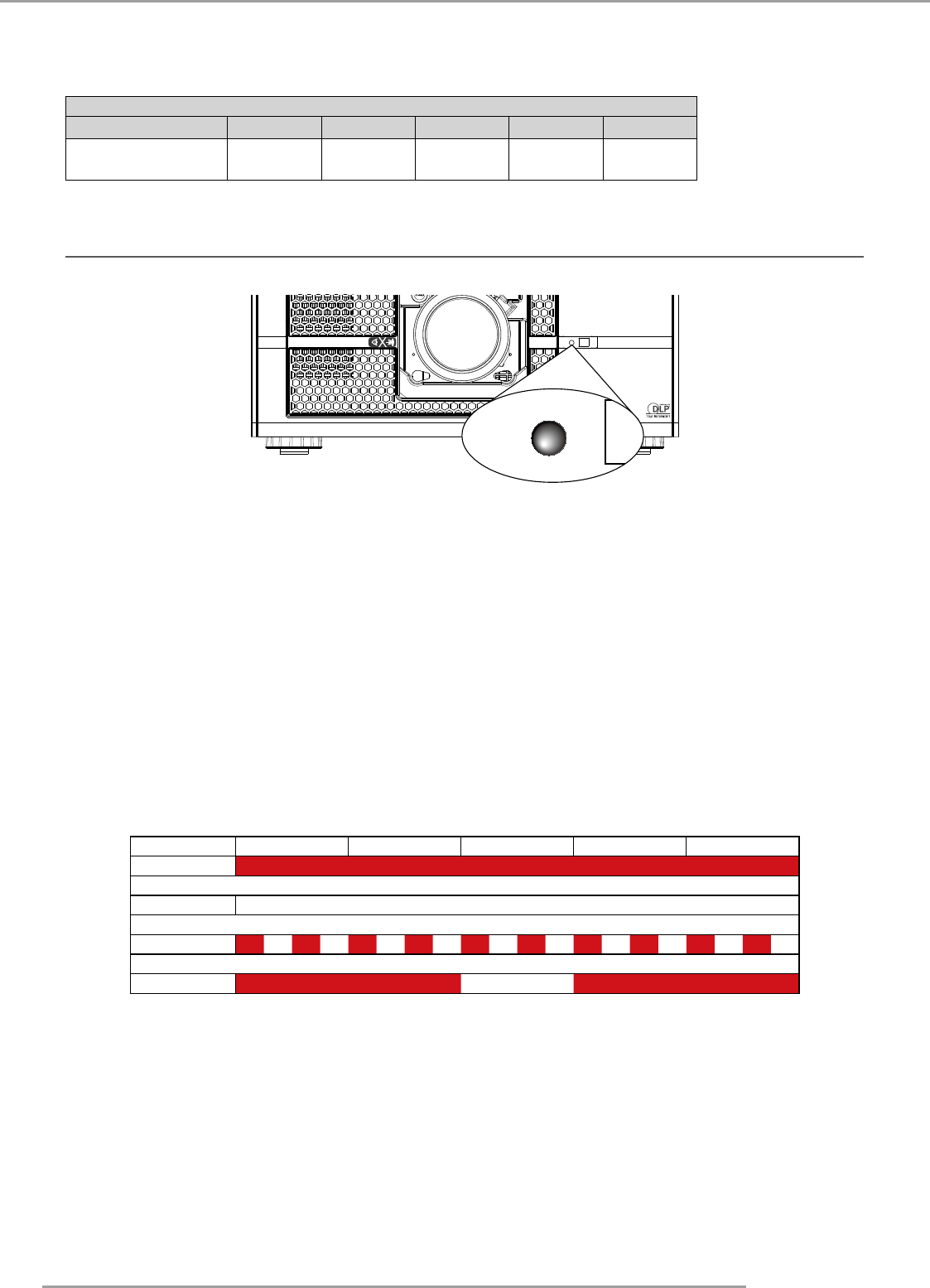

4.4 Status lights of LED
OFF/STA ND BY
The LED indicator shows solid RED when the projector is off and at standby mode.
ON
The LED indicator is off when the projector is on.
ERROR
The LED indicator is blinking at a 0.25 second interval when there is error occurred in projector. Please contact authorized
service personnel for help.
During start-up
The LED indicator is blinking at a 2 seconds interval when the projector power on.
1 sec 1 sec 1 sec 1 sec 1 sec
OFF/Standby
ON
Error
During Start-Up
