3.Physical Installation
3.2 Lenses
Available lenses for the PJWU-101B projector projector
•
R9832760 : J lens (1,85-2,4 : 1) - Standard Lens
•
R9832761 : J lens (1,56-1,86 : 1) - Short Throw Lens
•
R9832762 : J lens (2,4-4,0 : 1) - Longer Zoom lens
•
R9832763 : J lens (0,84-1,03 : 1) - Extreme Wide Angle Lens
Projection lenses are optional accessories. Please contact your local dealer to acquire the projection lens
that suits your need most.

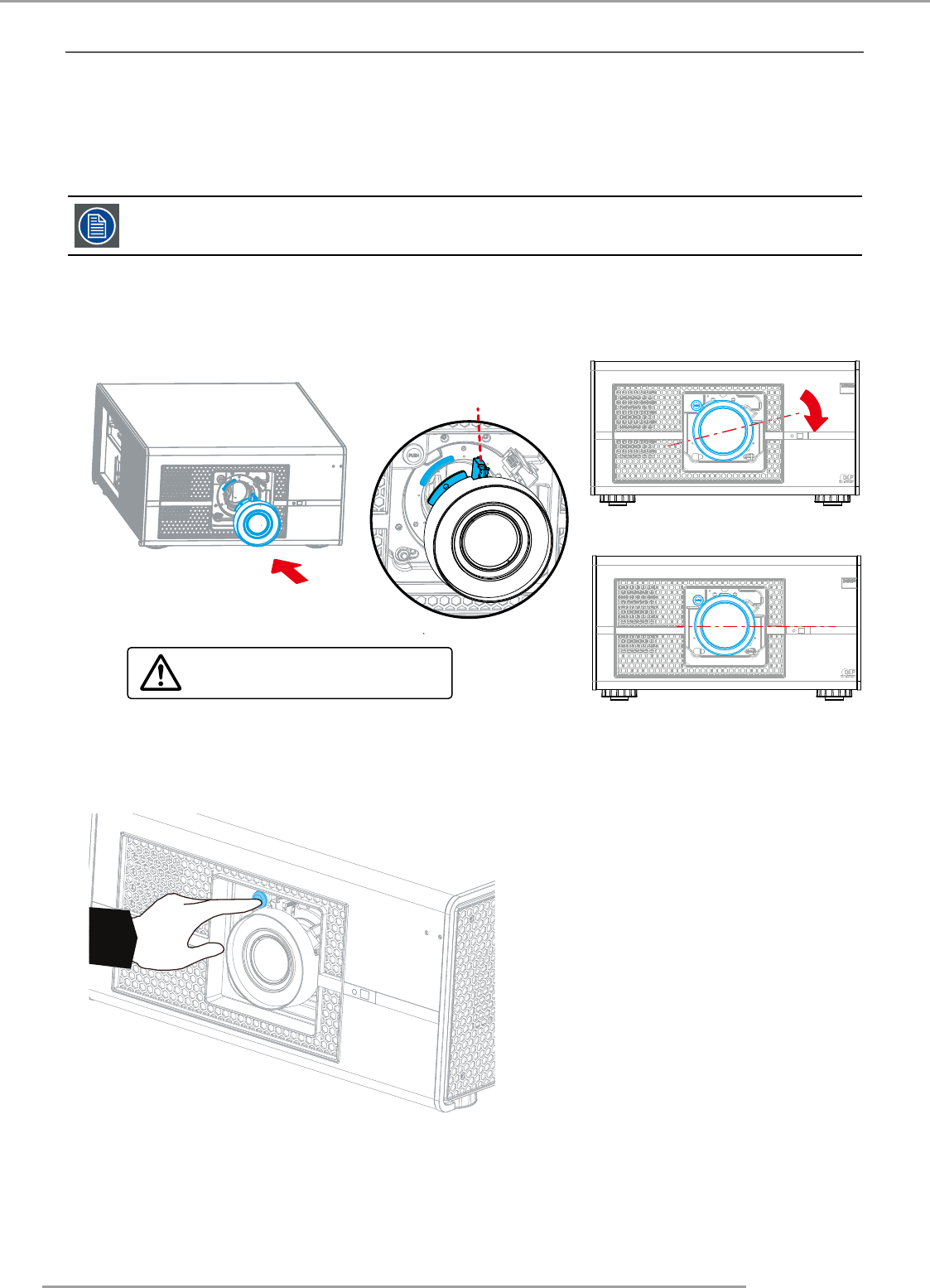

How to install the lens
1.
Follow below image to install the lens.
Click
Carefully align the connectors
while installing the lens.
UP Side
How to remove the lens
1.
Press and hold the release button
