3. Display installation
Image 3-2
3.3 Co nnecting the cables

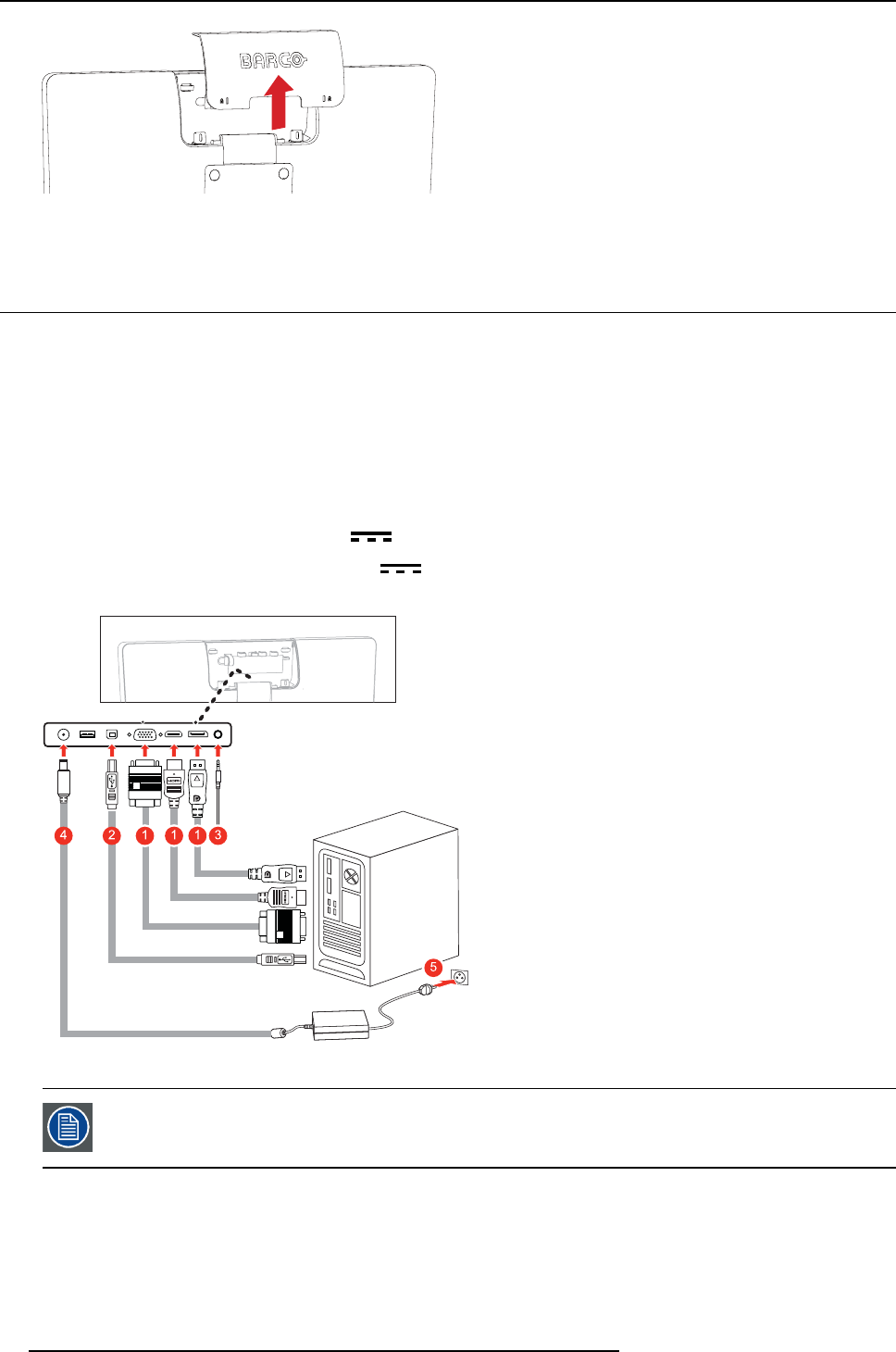

To connect the cables
1. Connect one or more of the video input connections of your display (VGA, HDMI or DisplayPort) to the
corresponding video outputs on your computer or any other video device.
2. If you want to make use of the display’s USB downstream connectors, then connect your worksta
tion
with the display’s USB upstream connector by means of the supplied USB cable.
3. Connect a speaker, amplifier, ... with the display’s audio line out if you want to use the internal sound
option of your display.
4. Connect the supplied external DC (
) power supply to the +12 VDC power input of your display.
5. Plug the other end of the external DC (
) power supply into a grounded power outlet by means of
the proper power cord delivered with your display.
Image 3-3
For the MDRC-2224 WP, there is a earth stud available in the connector compartment.
