Installation & Assembly

Undermount
Kitchen Sinks
INSTALLATION INSTRUCTIONS
P 847•244•1234 www.barclayproducts.com
7/15/16
Tools Needed
• Pencil • Tube Cutter • Socket Wrench • Saw • Wrench • Hammer • Screwdriver • Drill & 3/8” Bit •
Materials Needed
• Sink • Faucet • Drain Assembly • Supply Pipe & Fittings • Drain Pipe, Trap & Fittings • Silicone Sealant •
WARNING: We do not recommend cutting any countertops, especially granite, until you have the
sink on the premises. Sizes vary slightly due to firing process.
NOTE:
DO NOT tighten too much or you may damage bowl.
1. Using a template 1/2” narrower than the sink rim, mark the counter top cut out. Drill a starter hole 3/8” inside of
circle and then use a saw to finish cutting the opening for the sink.
2. Attach the faucet, drain piece, flange, and pop up drain assembly to the sink. Place a bead of silicone caulk
around the cut out opening. Set the sink into the opening. Press the rim down firmly. Hook up the drain and water
supply fittings.
3. Tighten all connections, being careful not to over tighten. Check for leaks. Small leaks can be corrected by
tightening the nuts.

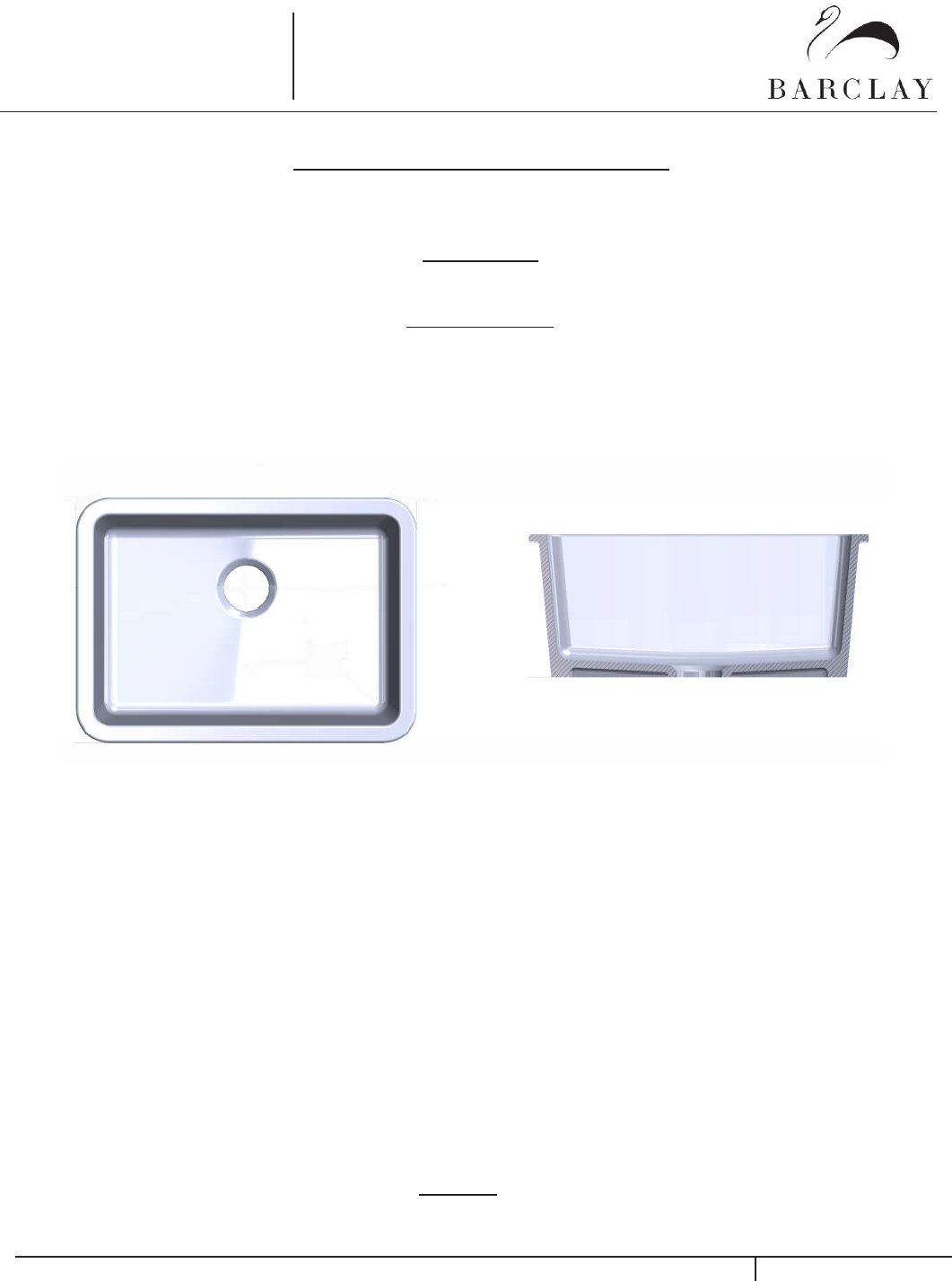

Top View
End View
