Reference
Subassembly
5
I-Beam
6
Post Support
7
Gear Box
8
Swivel Caster
9
Locking Swivel Caster
10
Rod
Assembly Instructions
⚠WARNING
 TO PREVENT SERIOUS INJURY AND DEATH: Wear ANSI Z87.1 compliant safety goggles, hard
hat, heavy-duty work gloves, and steel-toed work boots during assembly and operation.
 The correct bolts must be used during assembly. If any doubts arise regarding proper assembly,
contact Northern Tool + Equipment before use.

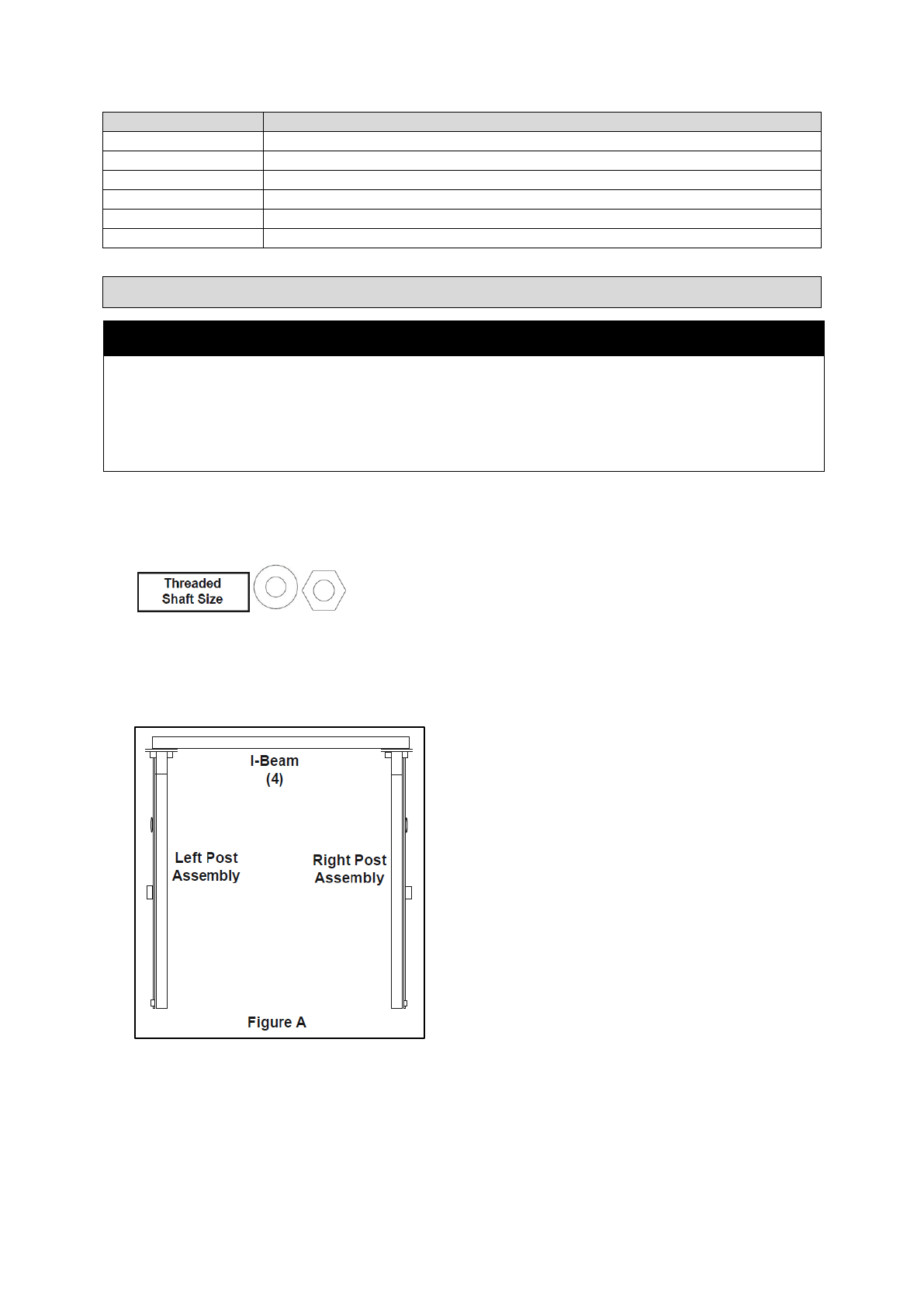

Attaching Posts to I-Beam
Hardware-8 each:
(29) Beam Bolt M12 x 40 (19) Washer M12 (16C) Nut M12
1. Lay the I-beam (04) on the ground. Lay the left and right post assemblies on the ground so
pulleys and cables are facing out.
2. Attach the left post assembly to the I-beam, using four beam bolts(29), washers(19), and
nuts(16C).
3. Tighten the connections securely.
