Display Fields

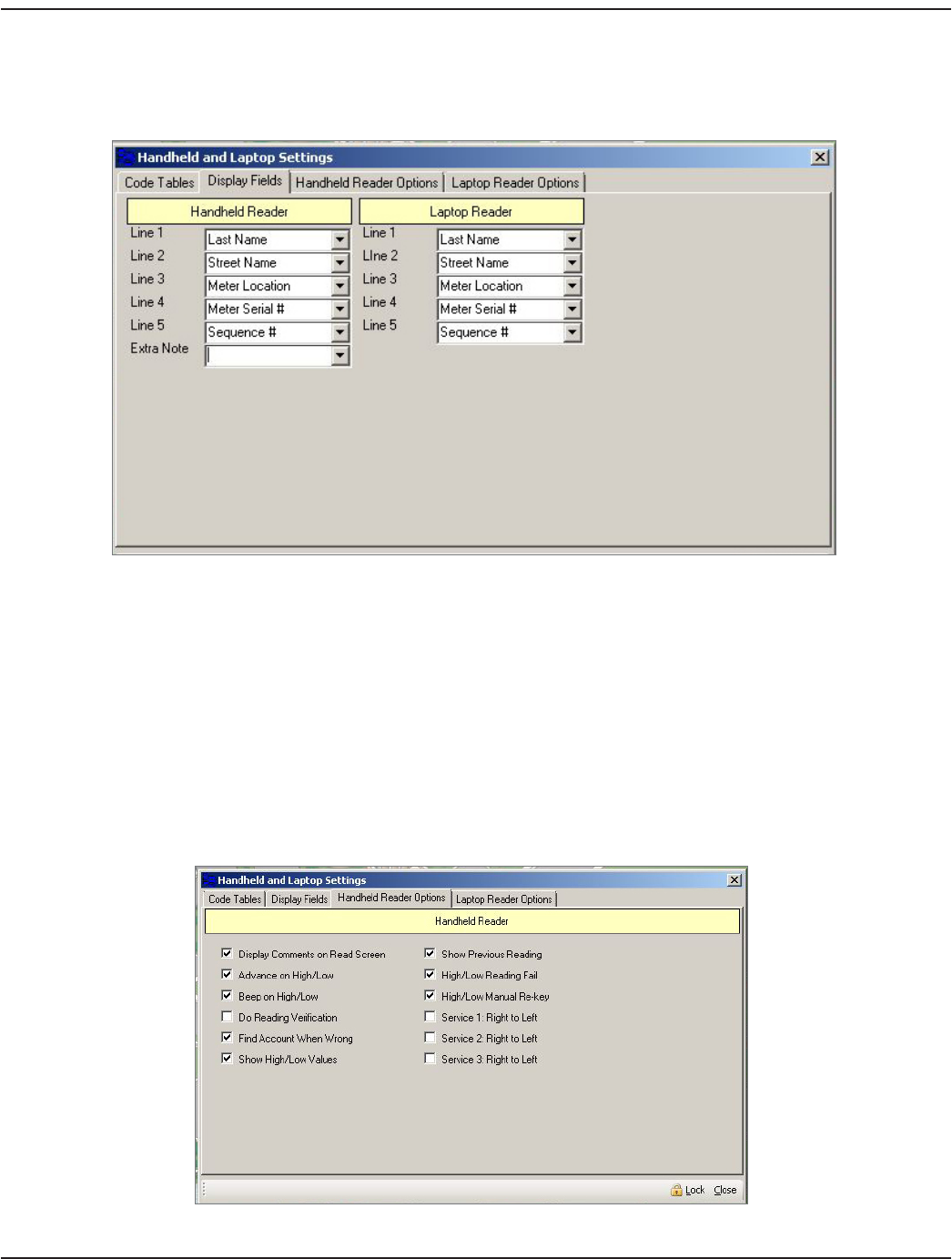

Collection devices have five display lines. The contents for the lines are defined here on the Display Fields tab.
Each drop-down list shows all the fields available. Select the field you want to display for each line of the collection device.
A different set of fields may be defined for the Handheld Reader and Laptop Reader.
The Extra Note field is used to define a field of special instructions with more information than can fit on a single line of the
handheld reader screen. The handheld reader has an option that will pop up a window to display the full text.
Handheld Reader Options
Define the settings for the handheld by selecting from the list of options on this tab. The selections will be discussed in detail
during initial training. Refer to the ORION Automated Meter Reading System for the Trimble Ranger manual,
ORI-IOM-52-EN (Ranger X) and ORI-IOM-64-EN (Ranger 3), for instructions and options for the handheld.
