Collected Readings
ReadCenter Analytics
Gateway Reading> Collected Readings
ReadCenter Analytics Mobile
n/a
Fixed Network Only: This section is intended for customers with a fixed network system. Customers using ReadCenter
Analytics Mobile exclusively for a mobile network may skip this section.

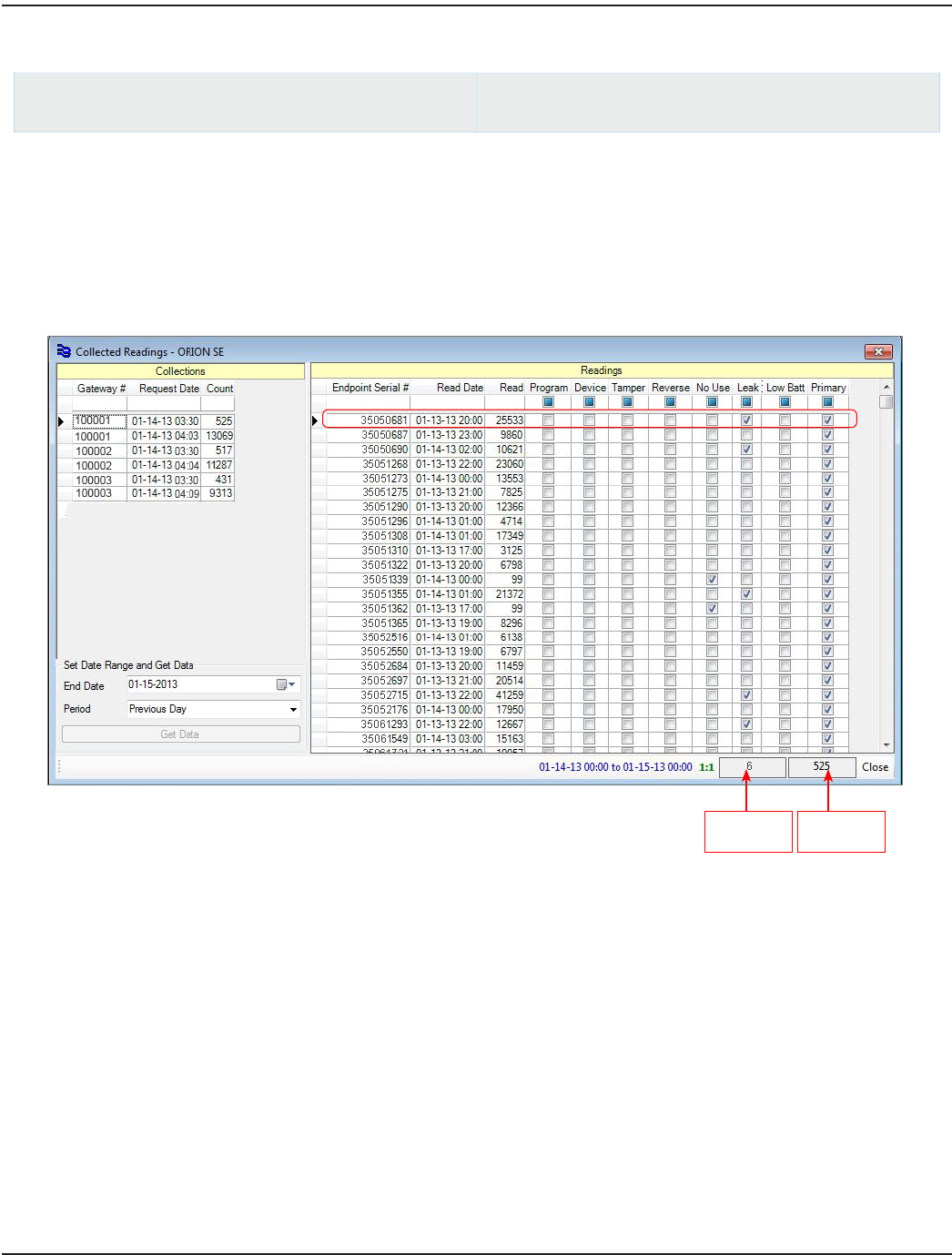

Use the Collected Readings function to view endpoint information collected by each gateway, along with the meter readings
it reported during the time period specified.
1. Specify a date range using the End Date and Period settings. A calendar is available from the drop-down menu in
the End Date eld. As the date selections change, the resulting date range is shown in blue in the tool bar.
2. Click Get Data to obtain meter reading information for the time period chosen.
Collections
The table that displays under Collections is based on the schedules that are run for each gateway and the readings that are
collected based on each schedule. Refer to "Defining Gateway Schedules" onpage78 for additional information.
Primary Readings
The Readings table displays the readings collected by the gateways for the time period specified. As you point to a gateway
in the Collections table on the left, meter readings reported through the gateway for the time specified are shown under
"Readings" on the right. The example shown above displays the collected readings when the Current Reads schedule is
run. Each row displays a different endpoint and its Primary reading for the date listed. The Primary boxes are checked for all
endpoints. Usage and exception conditions for which an endpoint triggers an alert will be shown on this report. A potential
Leak was reported for Endpoint Serial #35050681 on 1-13-13 at 20:00.
Collected Readings Tool Bar
At the bottom of the screen, the dates for the collected readings are displayed, followed by the order number of the
selected gateway and the reading line item—1:1—in the example shown above. In addition, two boxes are displayed in
the tool bar next to the Close button. The number of gateways is on the left and the number of meter readings reported
through the gateways is on the right. The box on the right is the same as the number displayed in the Count field under the
Collections heading.
Number of
readings
Number of
gateways
