ORION SE – Fixed Network Only
This section is intended for customers
with an ORION SE fixed network system.
Customers using ReadCenter Analytics
Mobile exclusively for a mobile network
may skip this section.
The ORION SE tab displays when an ORION
SE endpoint is selected from the list on the
Account Records screen. Refer to "Defining
Endpoint Settings" onpage73 for more
information on converting an ORION ME
endpoint to SE.
The ORION SE tab is automatically
populated as the endpoint extended status
information is received from the gateway.

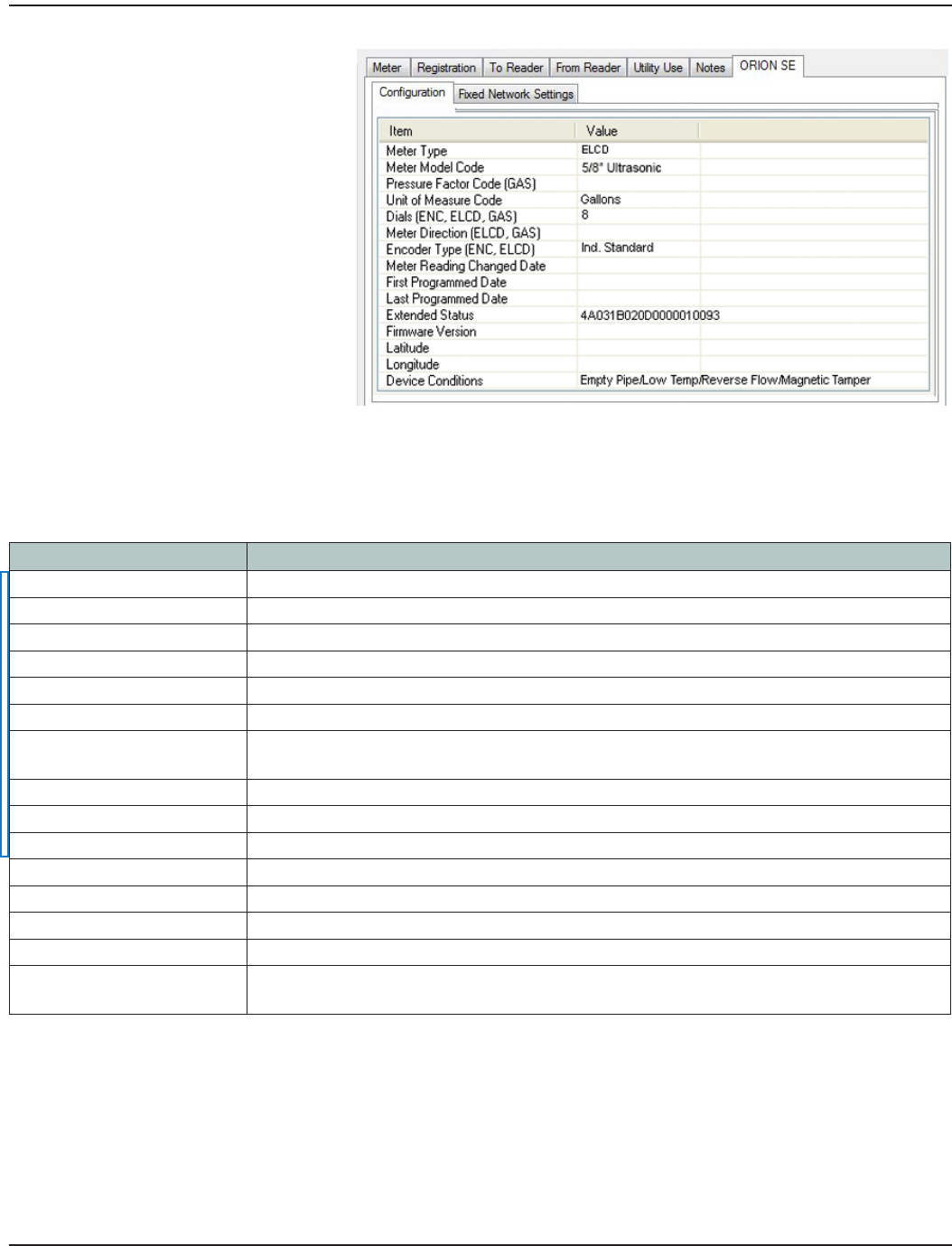

The ORION SE tab has two subsections: Configuration and Fixed Network Settings.
In a fixed network, Extended Status is received automatically when the endpoint is assigned to a gateway.
Configuration
Field Name Value (All fields are read only)
Meter Type Options are: RTR or Unspecified; ENC; Gas Integral; Gas Remote; ELCD; Permalog; MAG; C700D; HRE
Meter Model Code Meter model fills when extended status is received.
Pressure Factor Code (GAS) Informational data programmed through the IR port.
Unit of Measure Code Cubic Meters; Cubic Feet; Gallons; Imperial Gallons; Liters
Dials (ENC, GAS, ELCD) Number of dials: 4; 5; 6; 7; 8
Meter Direction (GAS, ELCD) Flow direction: 0 = counterclockwise; 1= clockwise
Encoder Type (ENC, ELCD) Options are: Not Set; Ind. Standard; Neptune ProRead; Elster/AMCO Scancoder; Neptune ARB V; Elster/
AMCO Invision; Sensus Fixed Format; Other
Meter Reading Changed Date Index changed date
First Programmed Date Date fills when first programmed through the IR port.
Last Programmed Date Date fills when last programmed through the IR port.
Extended Status Endpoint data fills when received from the gateway.
Firmware Version Endpoint firmware version number fills when received from the gateway.
Latitude Position of the endpoint programmed at installation and received from the gateway.
Longitude Position of the endpoint programmed at installation and received from the gateway.
Device Conditions Displays all conditions indicated by the latest Extended Status. See "Status" onpage29 for a list of
device conditions.
Fields  ll when Extended Status is received
