Installation Manual

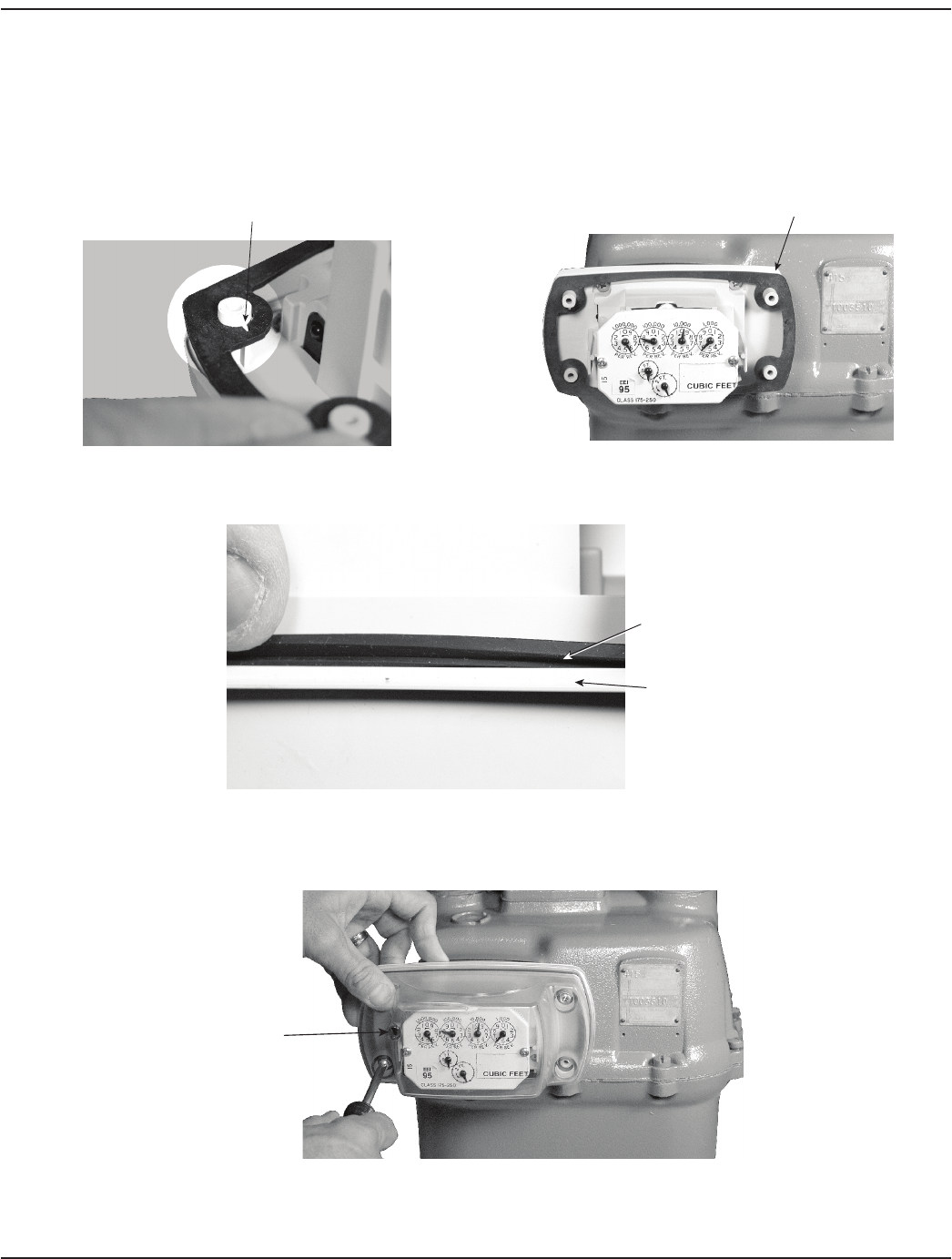

PLACE THE LENS GASKET AND LENS ON THE ENDPOINT
1. Place the lens (outer cover) gasket on the endpoint.
a. Place the gasket so that its notched hole goes around the upper left screw hole.
b. Place the other gasket holes over the screw holes. See Figure 14.
Notched hole around upper
left screw
Lens gasket on endpoint
Figure 14: Lens gasket placement
2. Be certain that the gasket stepped edge seats in the endpoint. See Figure 15.
Endpoint
Gasket stepped edge
Figure 15: Gasket stepped edge in endpoint
3. Place the lens on the gas meter. Place the endpoint IR port in the upper left hand corner.
4. Tighten the lens with the four (4) screws (8 X ½"). Tighten the screws to about 6 inch-pounds. See Figure 16.
Endpoint IR port
Figure 16: Endpoint IR port location
Page 9 July 2014
