ORION® Gas Endpoints, Integral Endpoint for Sensus® 415 Gas Meters
PLACE THE INDEX ON THE ENDPOINT

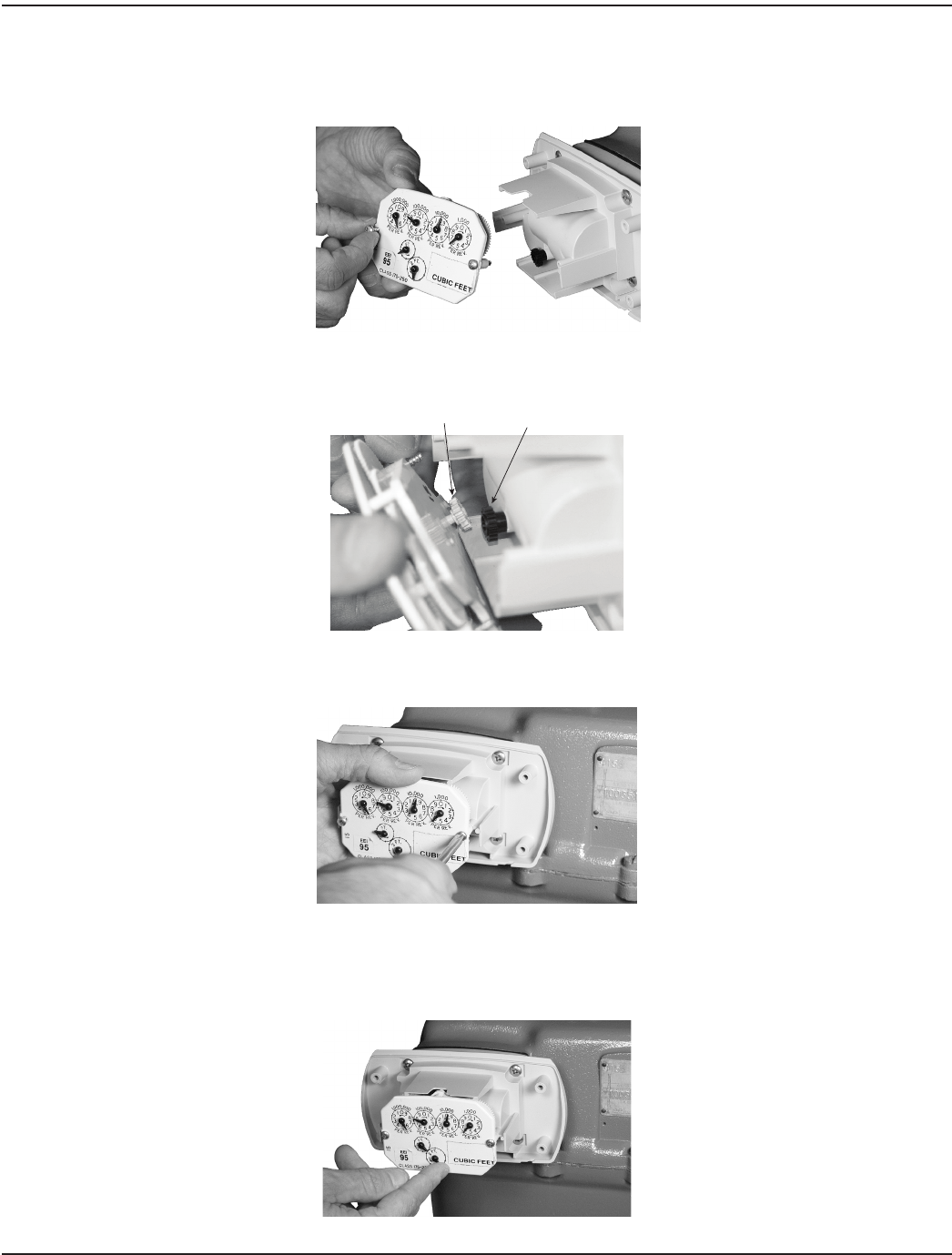

1. Place two (2) screws (#6 X ¾") into the index. See Figure 10.
Figure 10: Place screws in index
2. Be certain that the endpoint gears and index gears mesh. See Figure 11.
Index gears
Endpoint gears
Figure 11: Endpoint and index gears mesh
3. Tighten the screws to about 4 inch-pounds. See Figure 12.
Figure 12: Tighten index screws
4. Test the index and endpoint gear connection. Move the 2 FT³ dial on the index back and forth several times.
See Figure 13. If dragging or friction is felt, reposition the index to eliminate any drag. The dial should move back and forth
only a small amount.
Figure 13: Test index and endpoint gear connection
