ORION® Gas Endpoints, Integral Endpoint for Sensus® 415 Gas Meters
ASSEMBLE THE ORION ENDPOINT AND SENSUS 415 INDEX

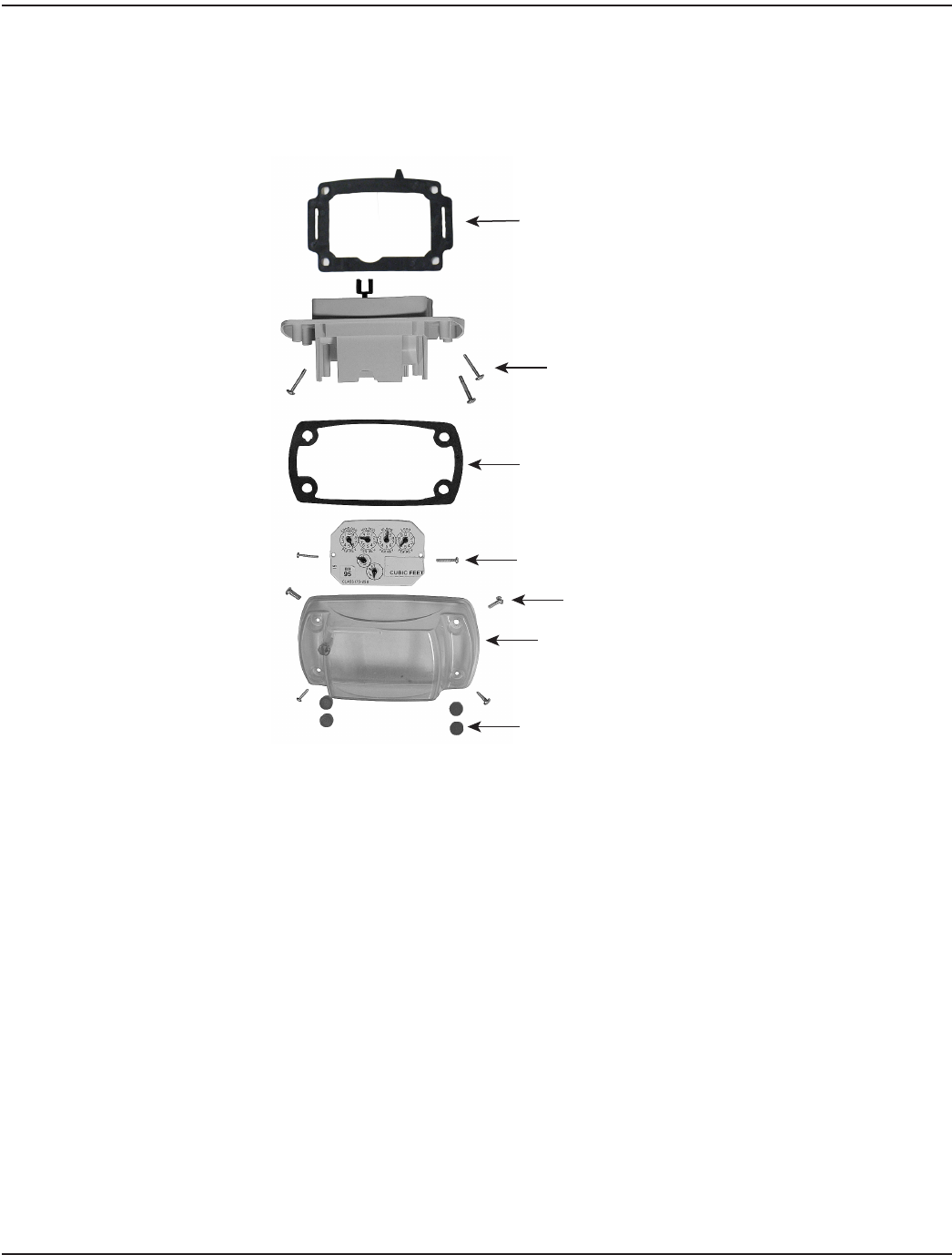

ORION Installation Kit for Sensus 415 Meter
Meter gasket
10-24 x 1” screws
Lens (outer cover) gasket
#6 x 3/4” screws
#8 x 1/2” screws
Lens (outer cover)
Tamper Seals
Figure 5: Installation kit parts list
USE CARE
Use care when handling the ORION endpoint to ensure the endpoint drive pawls and the mating index drive gear are not
subjected to any physical abuse. Abuse may cause the spindles to become bent, misaligned or otherwise inoperative.
When attaching an index to an ORION endpoint, make certain the index mounts securely to the endpoint.
The front and rear drive gears must mate without causing any binding or potential for disengagement.
