REMOVE OLD INDEX
1. Use a large screwdriver to puncture and remove tamper plugs if they are present.
2. Use a large screwdriver to remove and discard the four (4) mounting screws and the cover. See Figure 2.

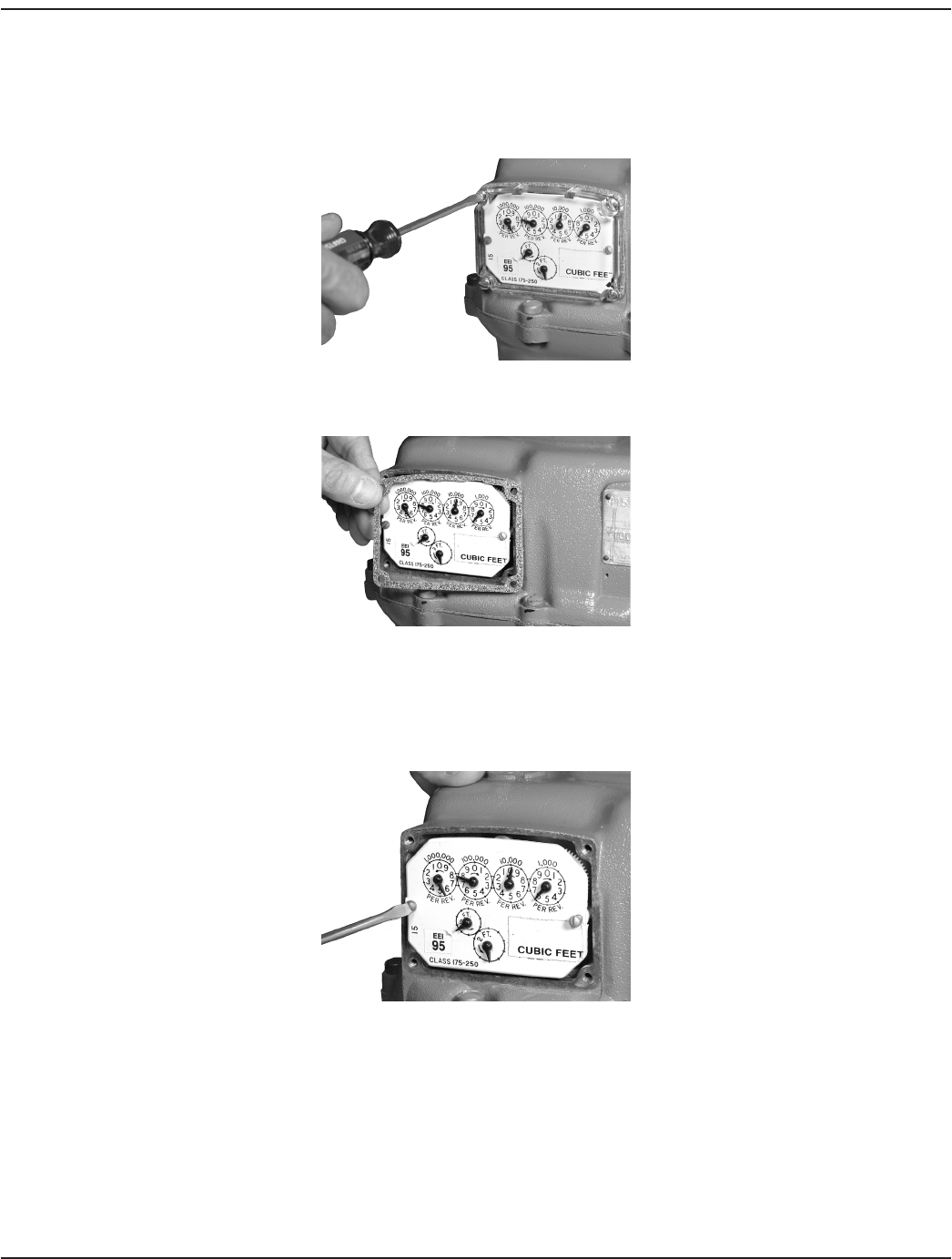

Figure 2: Remove mounting screws
3. Remove and discard the gasket. See Figure 3.
Figure 3: Remove gasket
OTE:N Use a putty knife to clean the meter surface of all gasket remnants that might limit the effectiveness of the
new gasket.
4. Use a small screwdriver to remove the index. See Figure 4. Discard the two (2) screws. Place the index to the side for
use later.
Figure 4: Remove screws on index
