ORION® Gas Endpoints, Integral Endpoint for Sensus® 415 Gas Meters
PROGRAM THE ENDPOINT AND INDEX
Badger Meter uses a handheld programmer/data collector system to process and display screens.

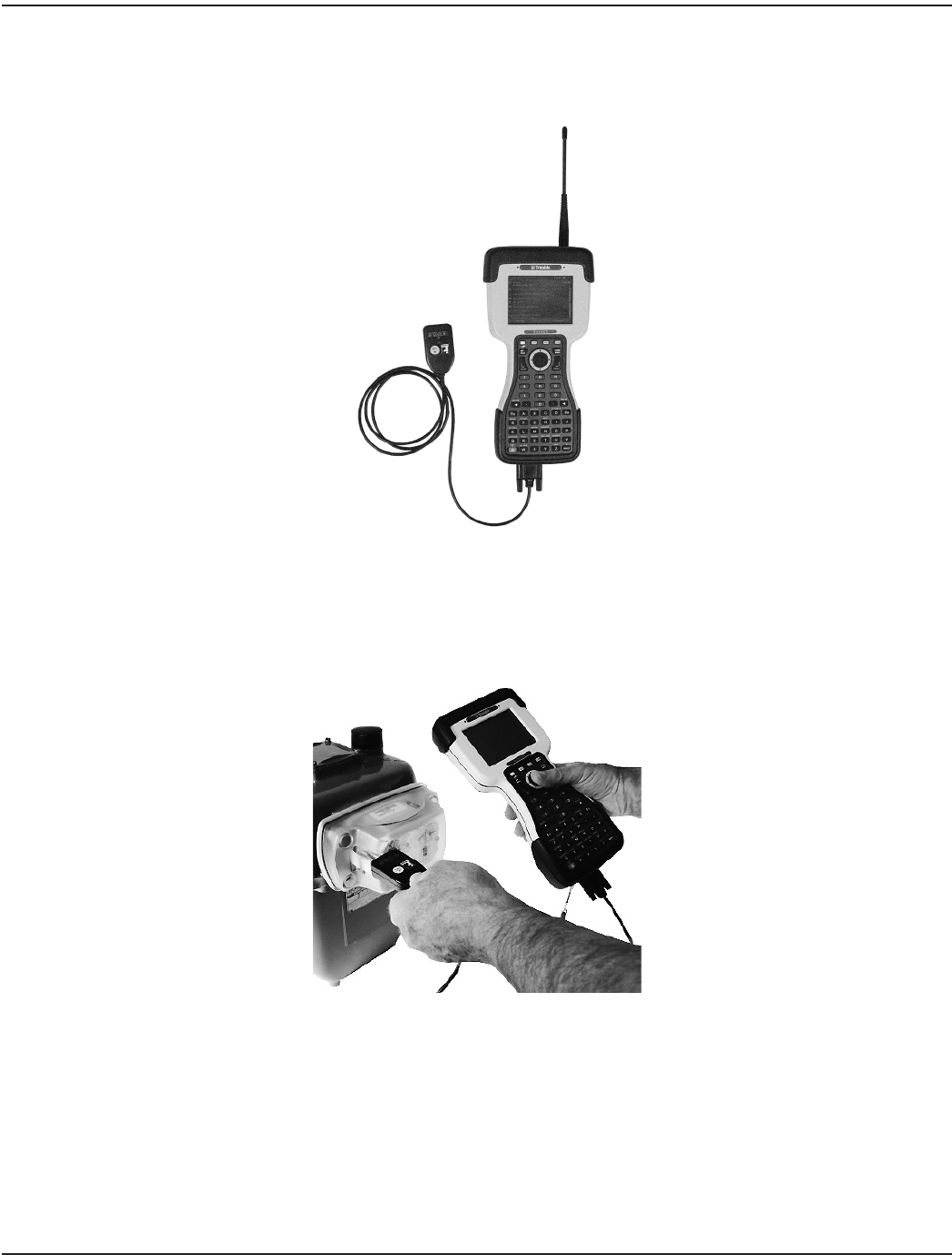

Figure 17: Sample handheld, IR read head and cable
Please reference the Programming Guide for ORION gas endpoints and the manual for the handheld system.
Programming Procedure
To program the endpoint, align the IR port of the handheld optic read head with the endpoint IR port. See Figure 18.
Figure 18: Align IR port of handheld with endpoint IR port
Page 10 July 2014
