Working with the Handheld Battery
Charging the Battery
The AC charger that ships with the unit has adapters to fit almost every electrical outlet. Connect the appropriate outlet
adapter to the AC charger. To charge the battery, plug the AC charger into the charging port on the bottom of the handheld
and plug the charger into an electrical outlet.
The handheld is fully charged in approximately 4.5
hours using the AC charger.
Acceptable temperature range for charging the
battery is 5...35° C (41...95° F).
Notification LEDs
The handheld has three notification LEDs (light
emitting diode) at the top that display color
indicators as shown in the table to show the
charging status. See the picture of the handheld on
page 58 to see the notification LEDs.
Left LED Center LED Right LED
Battery Status OS (Operating
System) Status
Bluetooth Status
Green: Fully charged Red blinking: Alarm Blue blinking: On
Amber: Charging WWAN Status WiFi Status
Red: Battery error Amber blinking:
2G connection
Green blinking: 3G
connection
Amber blinking: On
GPS Status
Green blinking: On
LED will flash in a
sequence if multiple
features are on
An optional DC charger is also available. Refer to the Trimble Ranger 3 Parts List, available at www.badgermeter.com, for
ordering information.
MPORTANTI
Fully charge the battery at least 4 hours before use. The battery LED (left LED) will turn green when fully charged.
Office Docking Station
When using the handheld docking station (instead of
using the AC charger) to charge the battery, be sure
the handheld is fully seated into the dock and the
charging pins are in full contact with the handheld.
The LED on the right front on the dock is steady
green (does not flash) when the power is on and the
handheld is docked.
The docking station is designed to be set up on a flat
surface or mounted on a wall. Up to five units can be
connected together with a single power source.

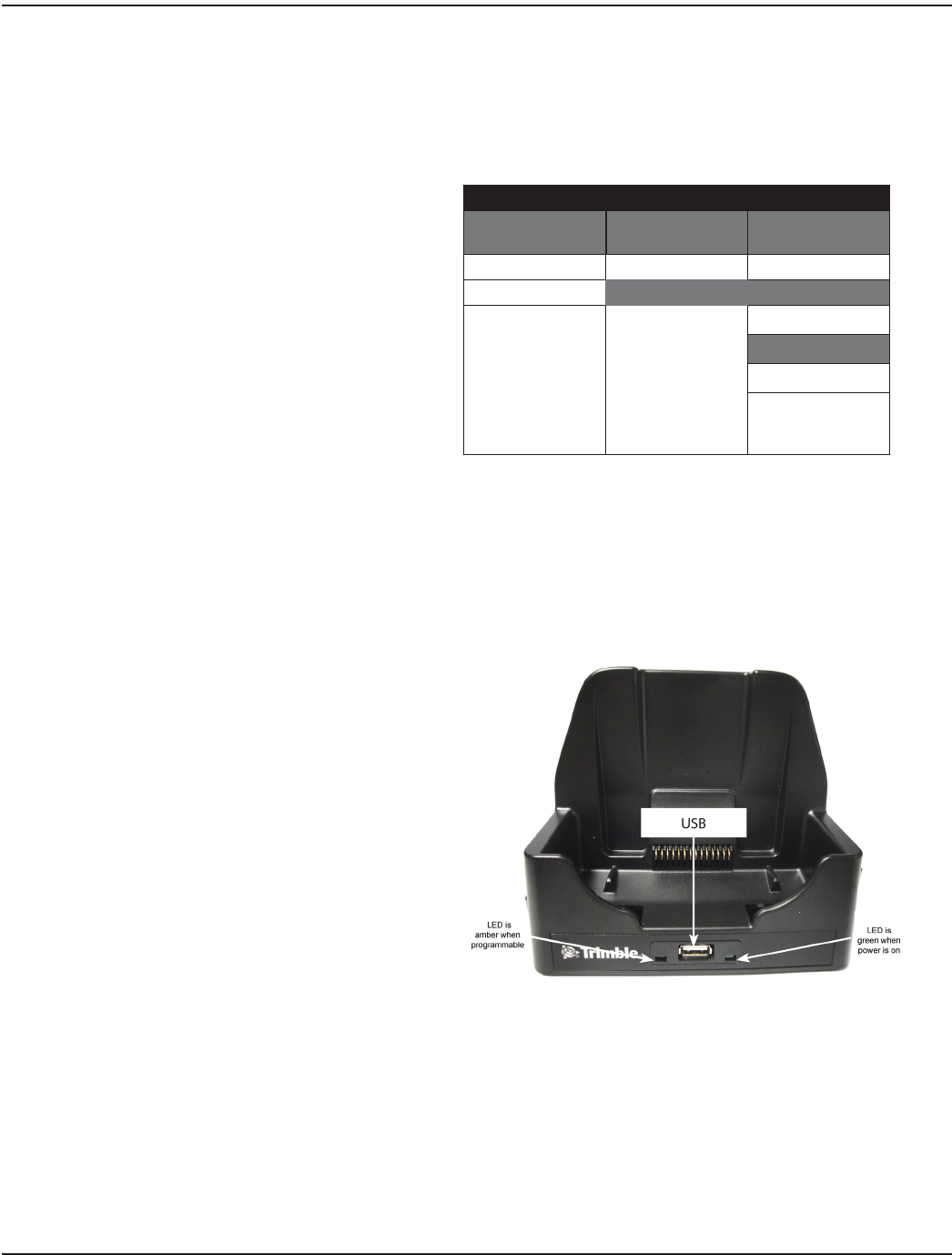

Docking station
MPORTANTI
Always use the chargers intended for the handheld. Using other chargers will void the warranty.
Battery Power
When the fully charged handheld is still connected to the charger, verify the handheld battery charge using these steps:
1. Tap the Windows Start icon at the bottom left of the display screen.
2. Tap Settings> Power to view the battery power and the current battery charge status.
3. Tap Advanced, next to Battery, to see handheld power down selection options.
