Fully charge the battery at least 4 hours before use. The battery LED (left LED) will turn green when fully
charged. Always use the chargers intended for the handheld. Using other chargers will void the warranty.

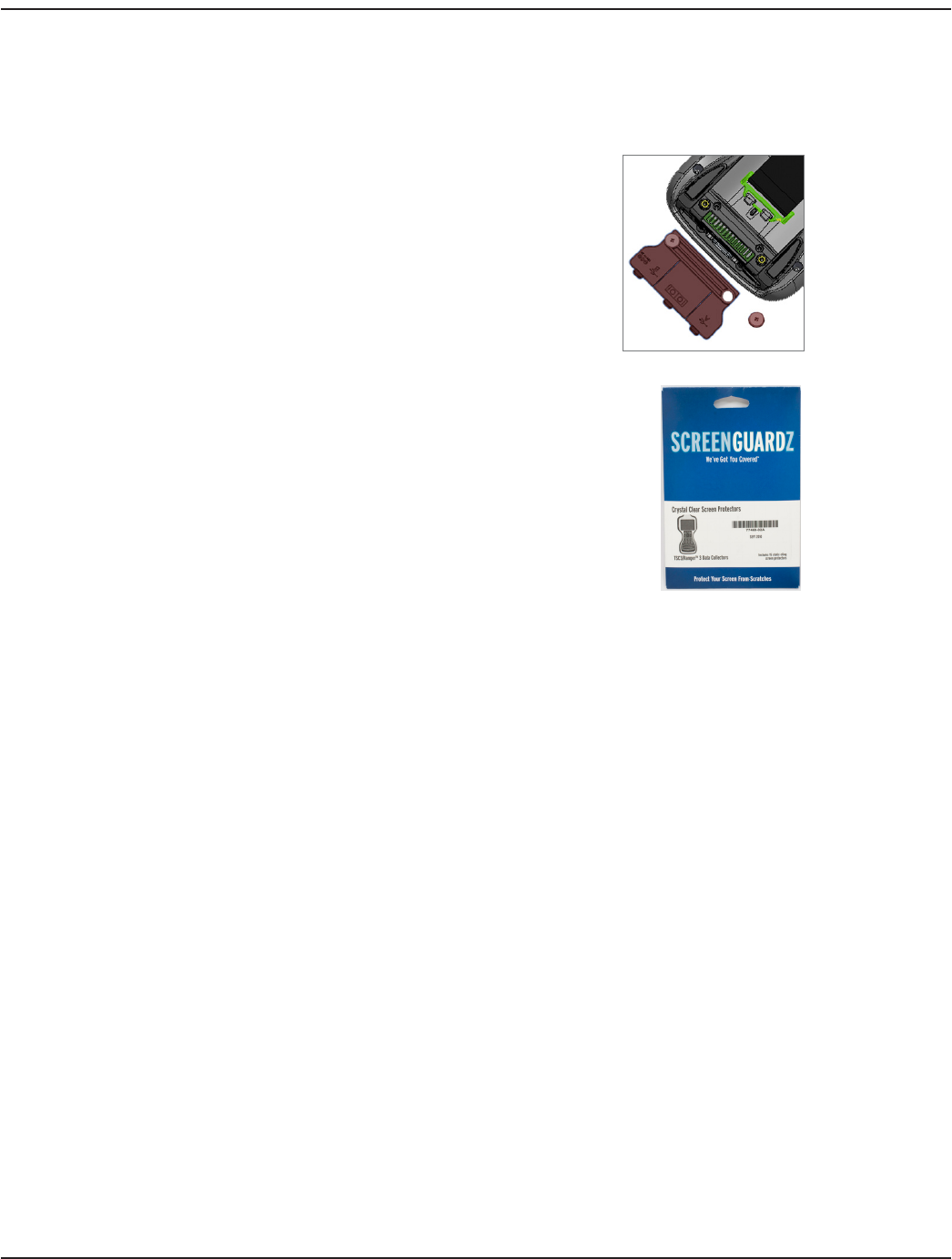

5. Attach the I/O dust cover (optional) as shown. The
unit is completely sealed, however, the dust cover
can be used to protect the connectors from
foreign objects.
OTE:N The dust cover must be removed when
using the docking station for charging.
6. Check to make sure a screen protector is applied
to the touch screen. A screen protector is applied
before shipping.
The Trimble Ranger manufacturer recommends replacing
the screen protector every two months, or more often if
the handheld is heavily used.
Follow the instructions provided in the screen protector
package for replacing a screen protector.
7. Turn the handheld unit on and o.
The handheld should boot up when the battery is installed. If not, press and release the green power key on
the keypad.
To turn the handheld o, press and release the power key again.
The handheld is ready to use. Turn the handheld on and touch the screen to start using the device.
Setting the Password Lock (optional)
It is not necessary to set a handheld password unless unauthorized use is possible. Badger Meter recommends not assigning
passwords to prevent the loss of reading data. If password protection is required, the password must be entered every time
the unit is turned on. Use the green power key to resume operation.
Go to Window Start> Settings> Lock to access the password screen.
MPORTANTI
Record your password. A forgotten or lost password cannot be recovered and requires a factory reset. All software and
data on the handheld will be lost.
