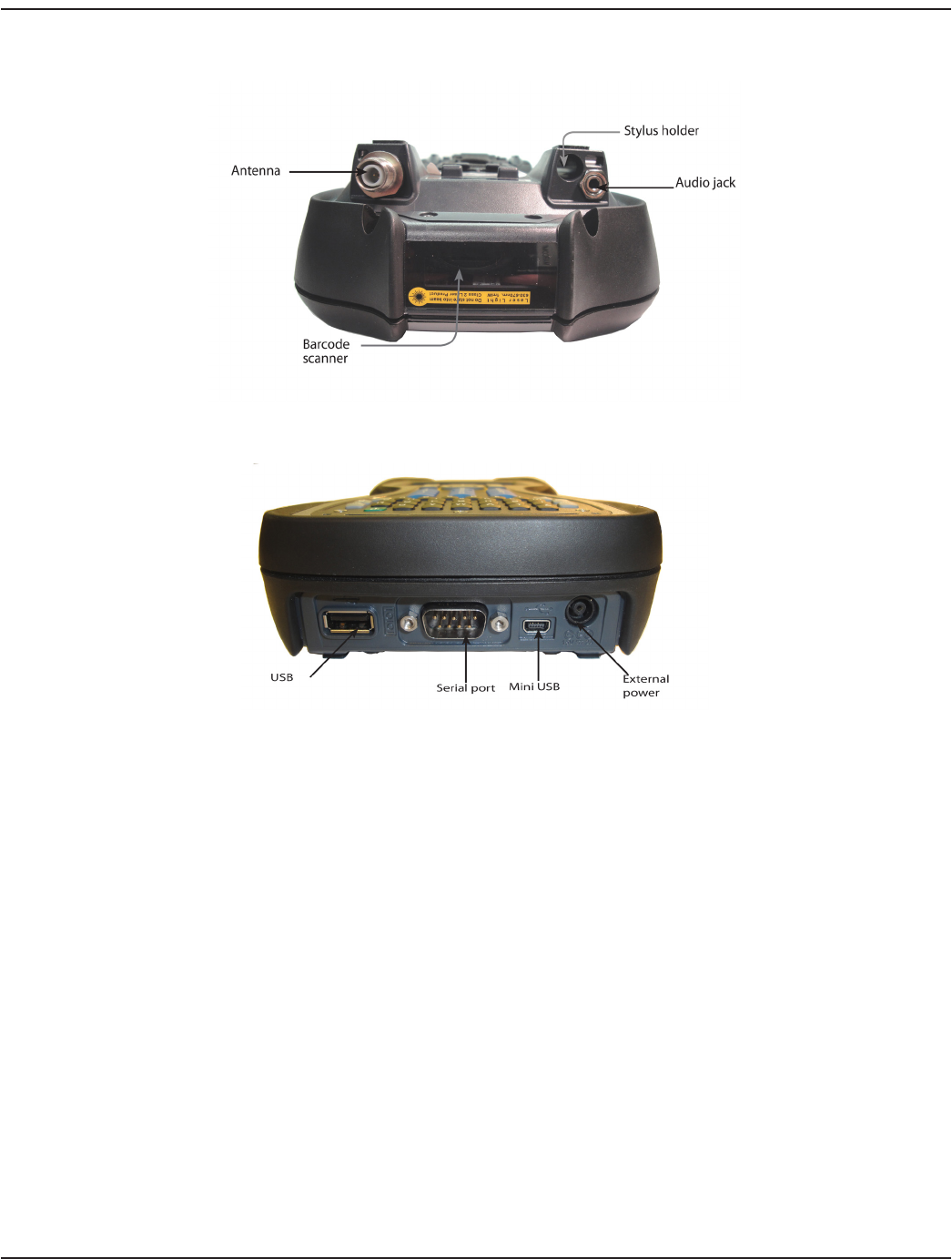

Handheld Top View
Handheld Bottom View
General Care of the Handheld
Use a mild detergent and a clean soft cloth to clean the body of the handheld. Do not use solvents, such as paint thinners. Use
only a lint free cloth to clean the infrared port. Do not use detergents or solvents to clean the infrared port or display window.
The Trimble Ranger 3 handheld has a wide operating range of –5...140° F; however, it is important to protect the handheld
from extreme temperatures. Leaving the unit in a vehicle on the dashboard during a hot day or in a vehicle on a cold night
can affect the screen display, as well as cause battery drainage.
TRIMBLE RANGER 3 HANDHELD OVERVIEW
Page 59 April 2014 ORION® Field Application for Trimble® Ranger 3
