PROGRAM & QUICK READ
Program & Quick Read provides access to VersaProbe quick read functions and to the ORION Endpoint Utility software.
1. Access the ORION Field Application and navigate to the Main Menu. If you need help, see "Program Startup and Exit"
onpage9 and follow the steps to access the Main Menu.
OTE:N You do not need to have a route loaded to access the Program & Quick Read software.
2. Tap Program & Quick Read.
Result: The Main Menu opens as shown in Figure 104.

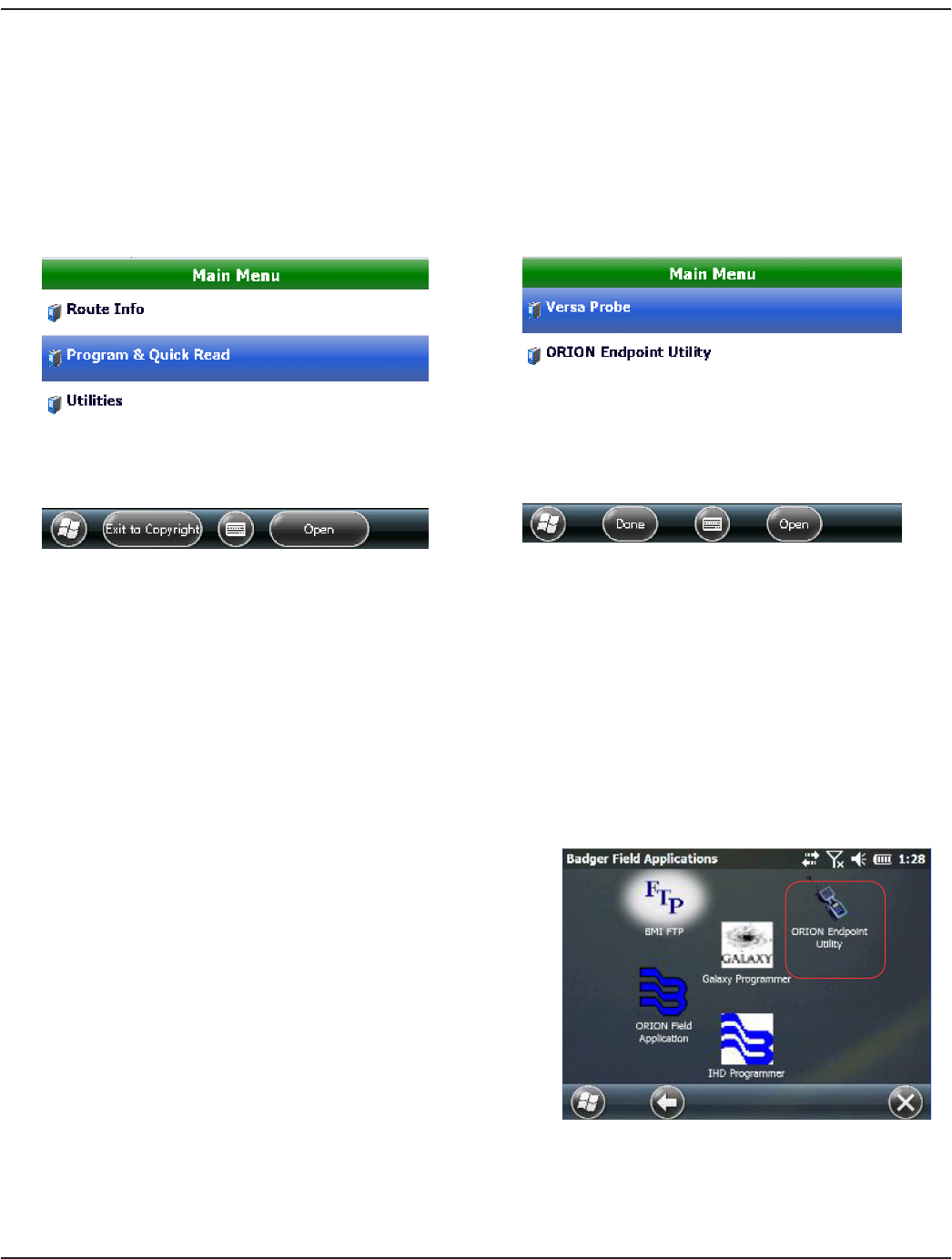

Figure 103: Main Menu
Figure 104: Program & Quick Read Main Menu
VersaProbe
Select VersaProbe on the Program & Quick Read menu to access the VersaProbe quick read function. See page 56
for instructions.
OTE:N For additional information about VersaProbe, see "VersaProbe Reads" onpage20.
ORION Endpoint Utility
The ORION Endpoint Utility software application includes Quick Read, programming and troubleshooting functionality for all
water and gas ORION endpoints using the Trimble Ranger 3 handheld.
For complete instructions, refer to the ORION Endpoint Utility User
Manual for Trimble Ranger 3, available at www.badgermeter.com.
OTE:N The ORION Endpoint Utility software can be accessed directly
from the Badger Field Applications folder. Go to Windows
Start> Badger Field Applications and select ORION
Endpoint Utility.
Figure 105: ORION Endpoint Utility
PROGRAM & QUICK READ
