High/Low Options
Tap High/Low Options on the Settings Menu to display the
settings for high or low readings.
Advance on High/Low: A high reading (higher than previous
readings) could indicate a leak or unusual consumption. A
low reading (lower than previous readings) might indicate a
tamper or meter malfunction.
Beep on High/Low: An audible alert sounds for a high or
low reading.
Show High/Low Values: Displays the high and low values on
the screen. If the values are set NOT to display by the reading
data management software operator, changing the option on
this screen does not aect the setting.

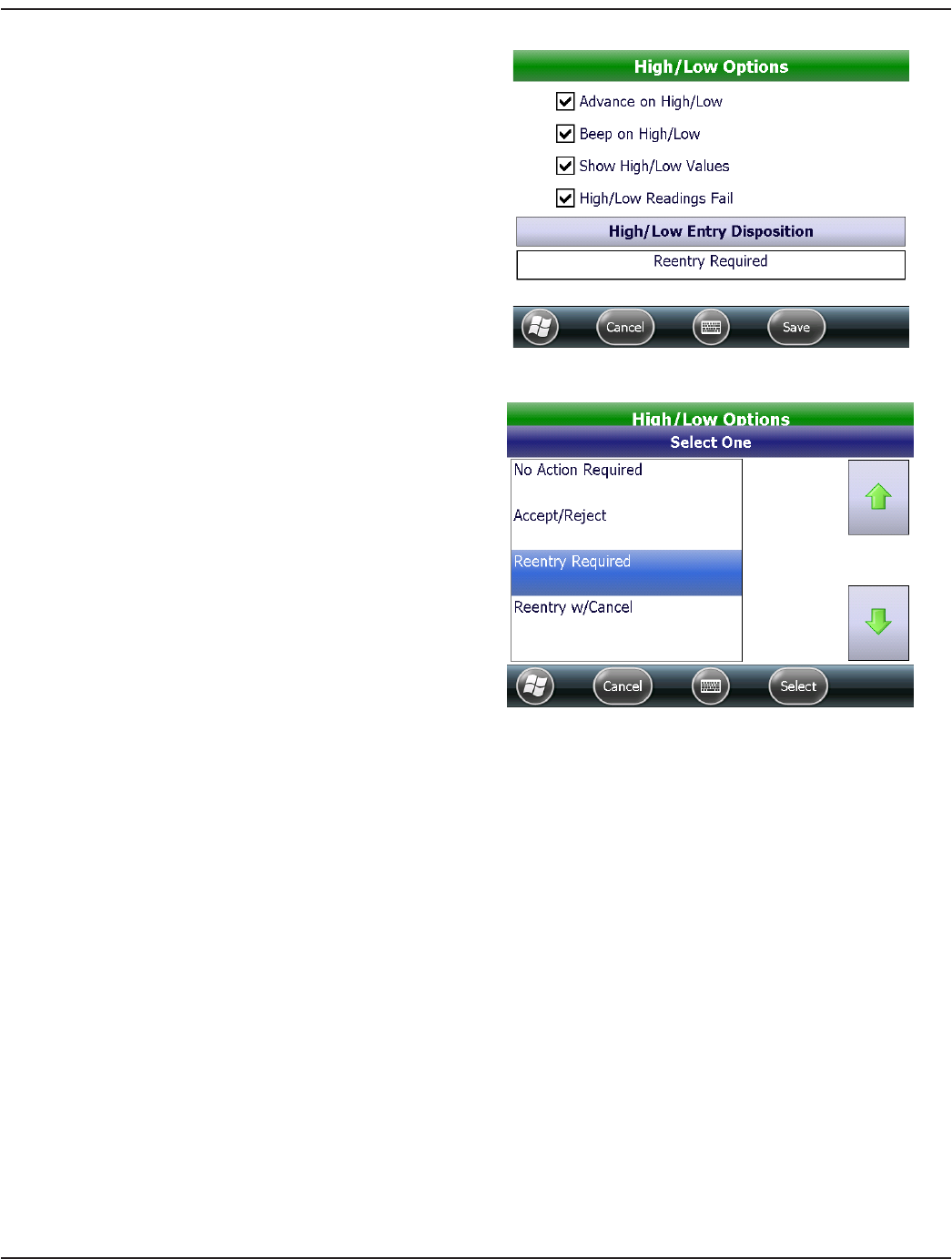

Figure 95: High/Low Options screen
Hi/Low Readings Fail: When checked, a reading is
considered high or low if it MATCHES the high or low value.
Unchecked, the high reading must be HIGHER and the low
reading must be LOWER.
High/Low Entry Disposition: This button is used only for
manual reads and manual reading entry. Tap the button and
then select one of the options (No Action Required, Accept/
Reject, Re-entry Required or Re-entry w/Cancel). Tap Select
to close the selection screen. The option that is selected
displays in the eld below the High/Low Entry Disposition
button. In Figure 95, the option is "Reentry Required."
Figure 96: Option selection screen
