UTILITIES
The Utilities Menu can be accessed either from the ORION
Field Application Main Menu or from Read Menu> Utilities.
The Utilities Menu has three options:
• Progress
• Battery Info
• Settings

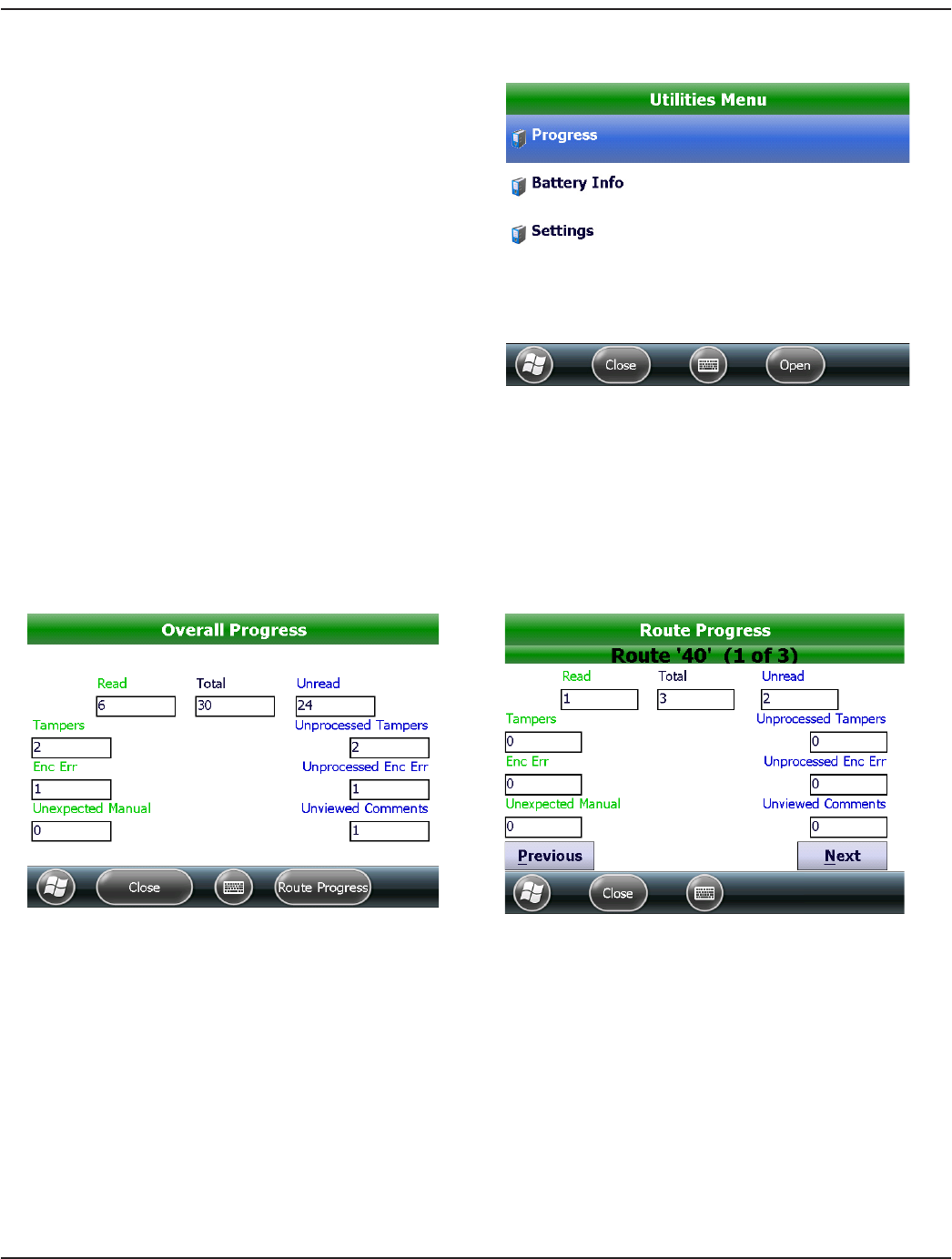

Figure 84: Utilities Menu
Progress
1. Tap Progress on the Utilities Menu to see a summary of the number of meters loaded, number of meters read and
other information about the routes loaded on the handheld. Progress does not display if a route is not loaded.
2. If there is more than one route loaded, tap Route Progress to display a summary per route as shown in Figure 86.
3. Tap Previous or Next to view other route summary information. The Previous and Next buttons display if more than
one route is loaded.
4. Tap Close to return to the Utilities Menu.
Figure 85: Route overall progress
Figure 86: Individual route progress
UTILITIES
Page 47 April 2014 ORION® Field Application for Trimble® Ranger 3
