Requesting Firmware Version Manually
If a work item was not assigned by the reading data management operator, you can manually initiate a request for the
firmware version from the current ORION Migratable (or Fixed Network in mobile mode) endpoint by performing the
following steps.
1. Tap the Work Items button on the account read
screen for an ORION ME account.
Result: The Work Items screen opens.
OTE:N If a work item is set to be performed
automatically, the message says “Assigned”
and the Collect button is inactive.

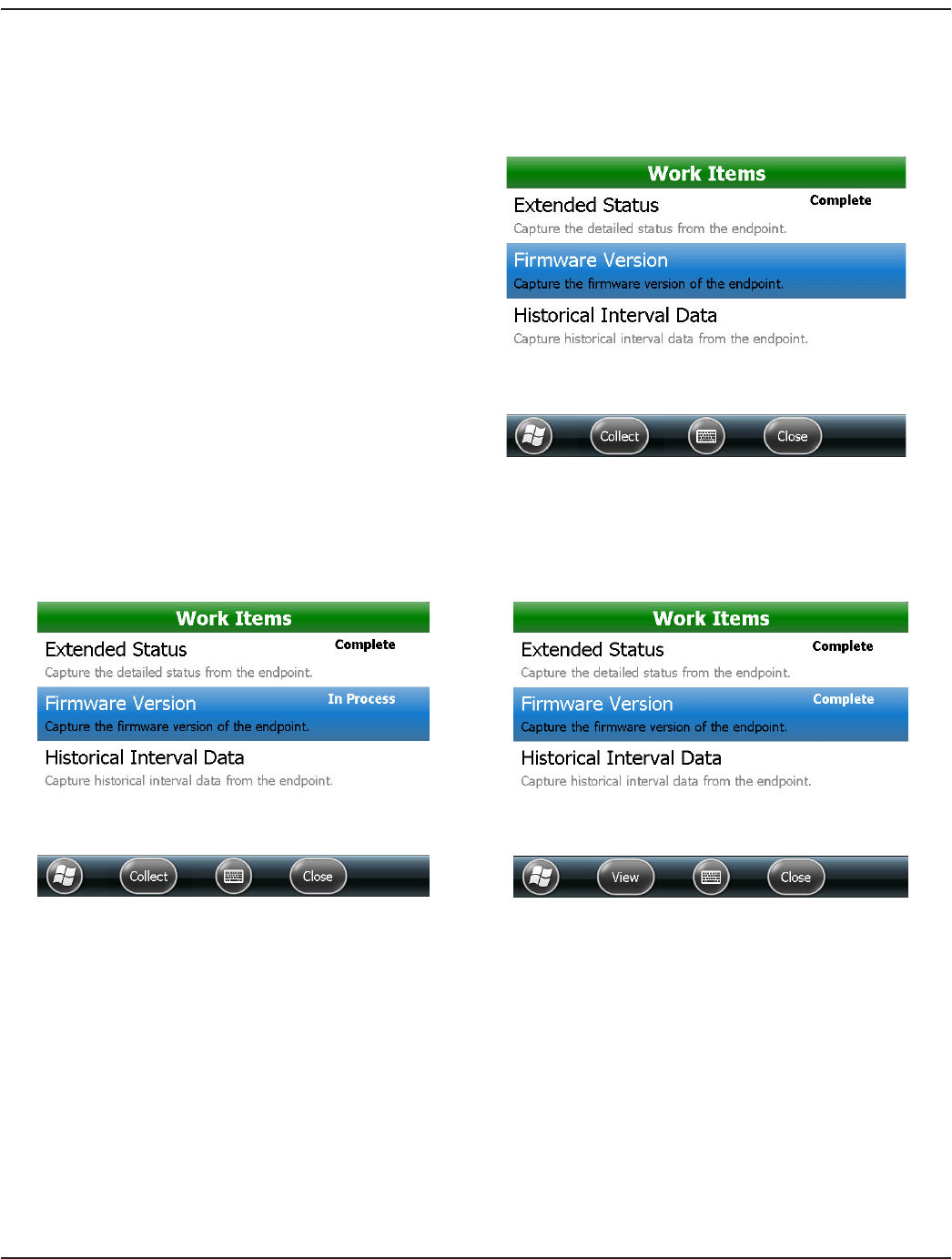

Figure 32: Extended status
2. Tap to select Firmware Version. Then tap Collect.
Result: ”In Process“ displays next to the Firmware Version eld as data collection begins. See Figure 33.
”Complete“ displays when data collection is finished and the View button becomes active. See Figure 34.
Figure 33: In process
Figure 34: Complete
