Requesting Extended Status Manually
Extended status includes additional information which has been programmed into an endpoint, including meter type and
size, unit of measure and encoder type, as well as exception statuses, such as tamper and no usage.
If a work item was not assigned by the reading data management operator, you can manually initiate a request for
extended status data from the current ORION Migratable (or Fixed Network in mobile mode) endpoint by performing the
following steps.
1. Tap the Work Items button on the account read
screen for an ORION ME account.
Result: The Work Items screen opens.
OTE:N If a work item is set to be performed
automatically, the message says “Assigned”
and the Collect button is inactive.
2. Tap to select Extended Status. Then tap Collect.

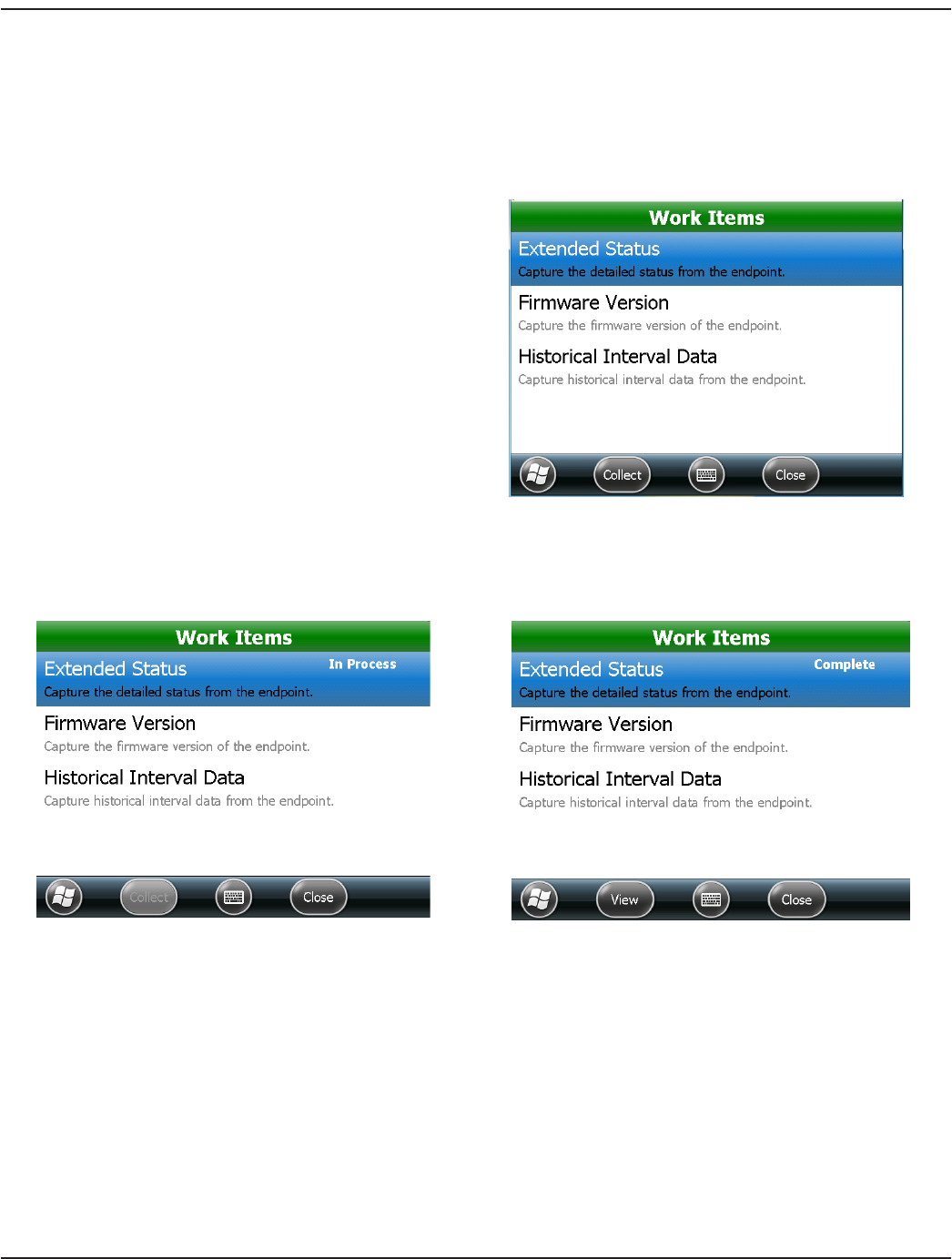

Figure 28: Extended status
Result: “In Process” displays next to the Extended Status field as data collection begins. See Figure 29.
”Complete“ displays when data collection is finished and the View button becomes active. See Figure 30.
Figure 29: In process
Figure 30: Complete
