MAIN MENU
The Main Menu is the starting point for all meter reading operations. There are four options on the Main Menu.

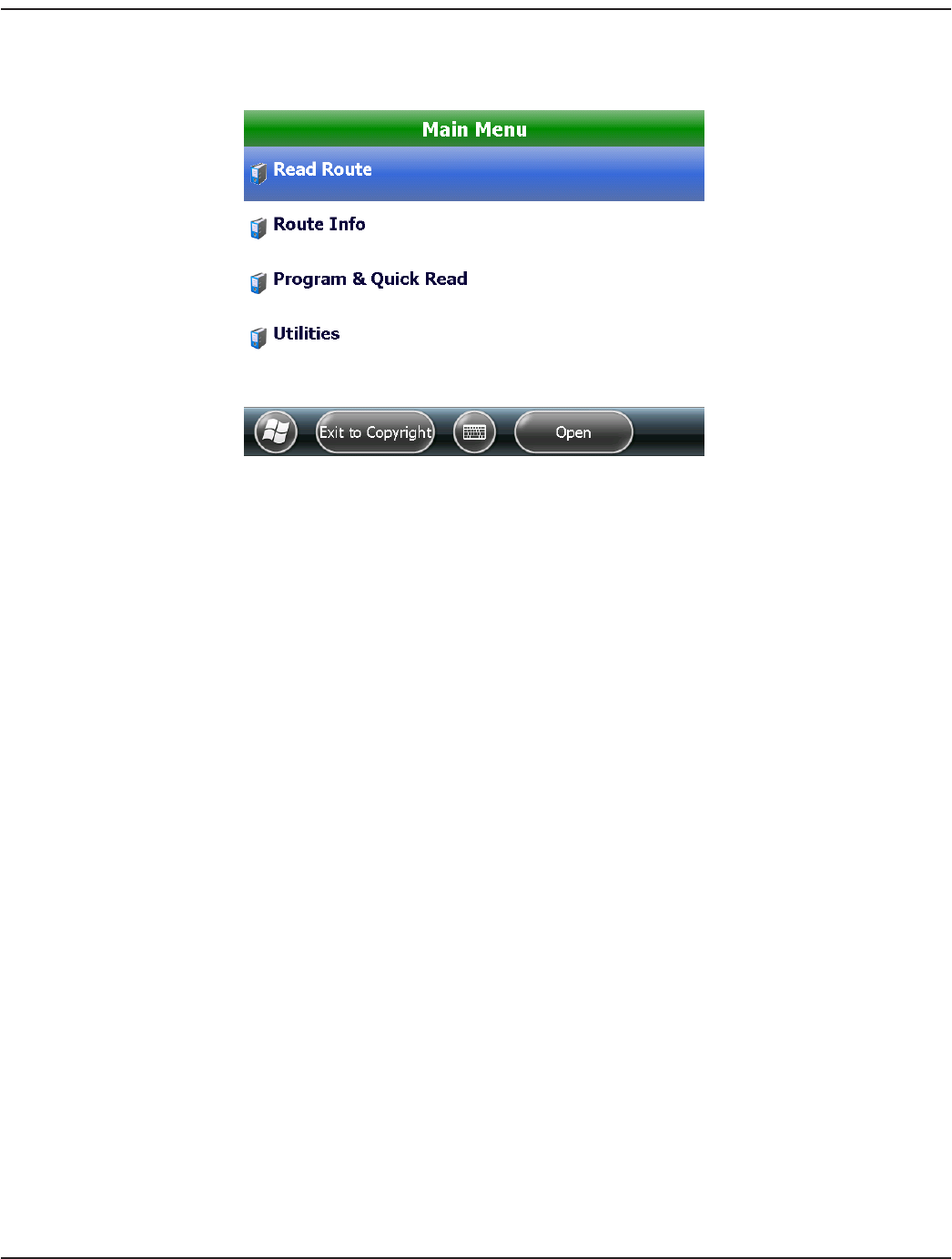

Figure 13: Main Menu
Read Route Displays the login screen to begin reading meters. This selection does not display if a route is
not loaded.
Route Info Provides data and time stamps for the meter reading route load and unload files.
Program & Quick Read Displays shortcuts to the Program & Quick Read application of the ORION Endpoint Utility
and to VersaProbe Quick Read. The Program & Quick Read application is used to view meter
data when a route is not loaded (e.g., checking an ORION endpoint, obtaining final reads,
troubleshooting) and to program ORION endpoints (e.g., clear a tamper, stop/start/pause
an endpoint).
OTE:N For complete instructions, refer to the ORION Endpoint Utility User Manual for Trimble
Ranger 3, available at www.badgermeter.com.
Utilities Displays the Utilities menu which gives you access to information on route progress, battery
and settings. The Utilities menu can also be accessed from the Read menu.
Tap to select a menu option.
MAIN MENU
