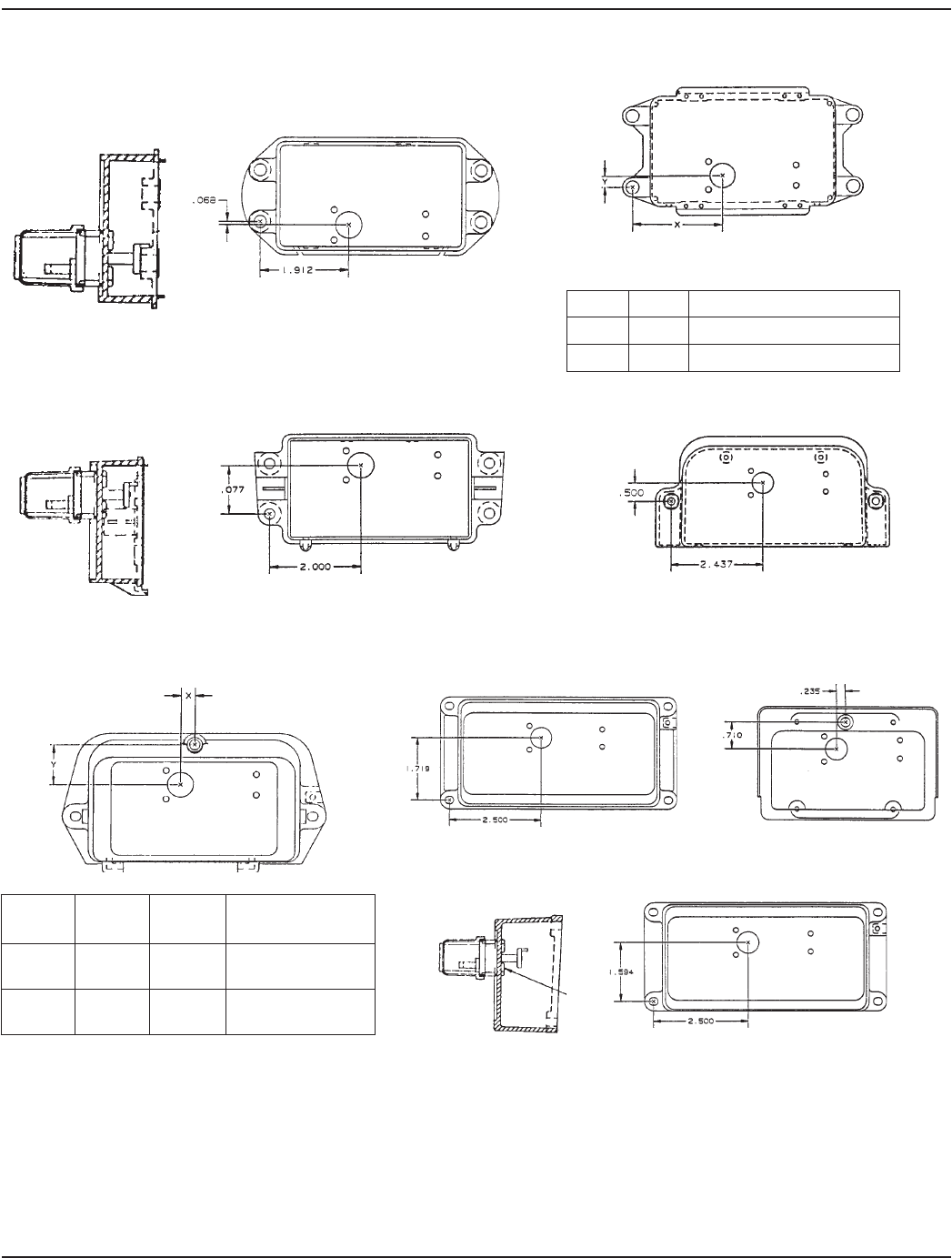

American®
American aluminum case meter
(counterclockwise index drive dial rotation)
American iron case meter
(index drive dial rotation)
X Y Description
2312 .265 10B-Counterclockwise
2.062 .265 5B-Metric counterclockwise
Lancaster®/National®
National/Superior
(counterclockwise index drive dial rotation)
Lancaster
(counterclockwise index drive dial rotation)
Itron®/Actaris®/Sprague®/Schlumberger®
Sprague — 1000 S.I.
(counterclockwise index drive dial rotation)
Sprague —1A, 175, 240 NON S.I.
(counterclockwise index drive
dial rotation)
X Y
250 S. I.
Models
Index drive dial
rotation
.403 .925
Sprague
400 S. I.
Counterclockwise
.309 .925
Sprague
175, 240
Counterclockwise
Sprague — 175, 240, 250, 400 S.I.
Sprague — 675 S.I. (counterclockwise index drive dial rotation)
