6. Test the entire installation including the Gas-RT and remote unit in accordance with the manufacturer's instructions.
7. Carefully fold the wires and splices to t and then slide the Gas-RT cover into place until it snaps.
OTE:N The cover is designed for tamper protection and cannot be removed without damage. To remove the cover, press the
blade of a screwdriver into the indention in the cover; doing so releases the hatch.
Slide cover into
grooves until it
snaps into place
Punch out indent
to release catch for
cover removal
Fold wires to t
under cover

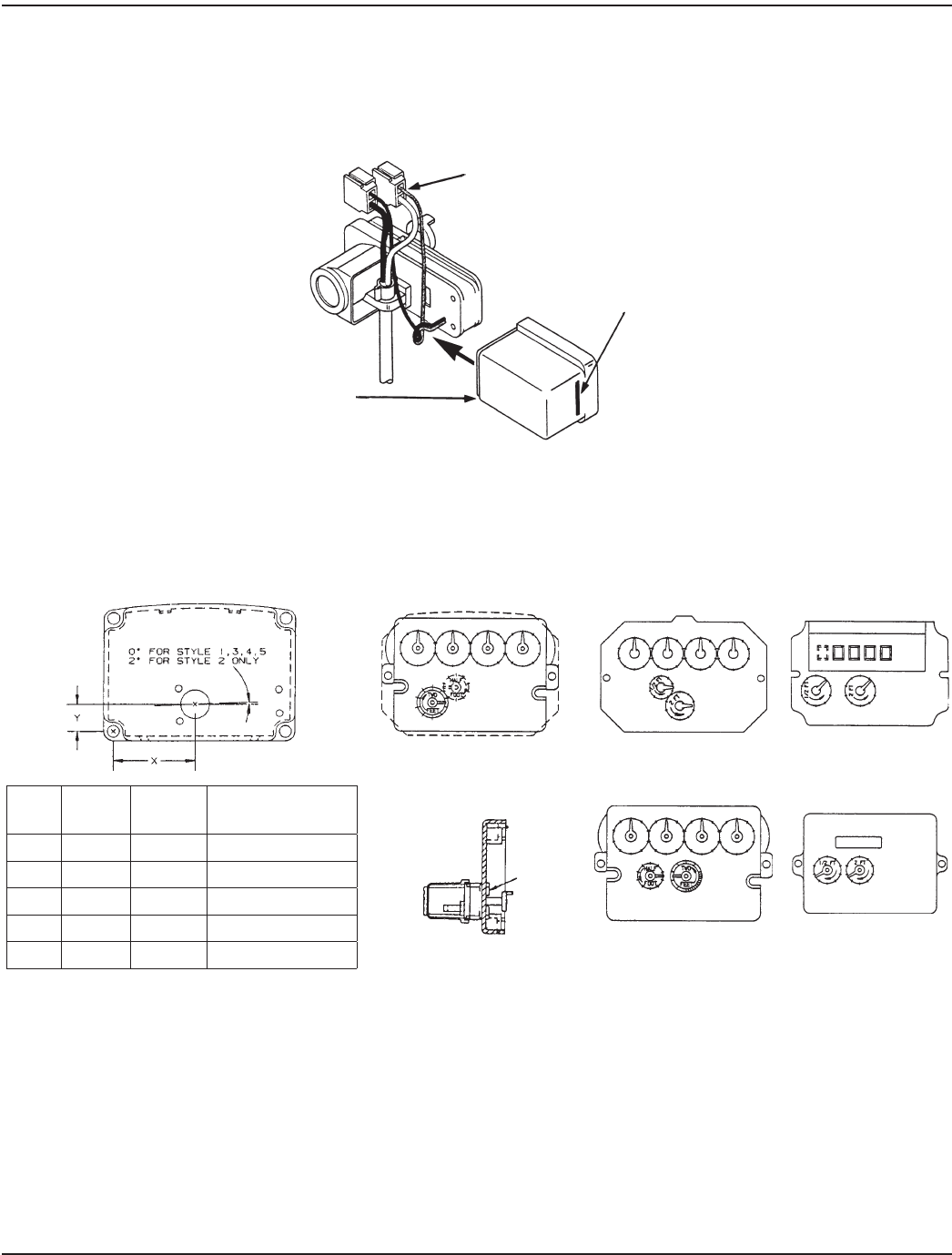

Figure 7: Cover placement
GASRT APPLICATION DATA
Sensus®/Rockwell®/Equimeter®
Index style #1
Index style #2
Index style #3
X
Y Index
style
Index drive dial
rotation
1.465 1.020 #5
Clockwise
1.176 .861 #4
Counterclockwise
1.503 .773 #3
Counterclockwise
1.632 .552 #2
Counterclockwise
.966 .594 #1
Clockwise
Index style #4
Index style #5
