INSTALLING GASRT ON INDEX COVER
1. Using the transmitter mounting hole pattern and matching your index cover, locate the correct hole centers with
the appropriate transfer punch. Drill each hole with the Vari-Bit and remove all chips and burrs from the holes before
proceeding. See Figure 2

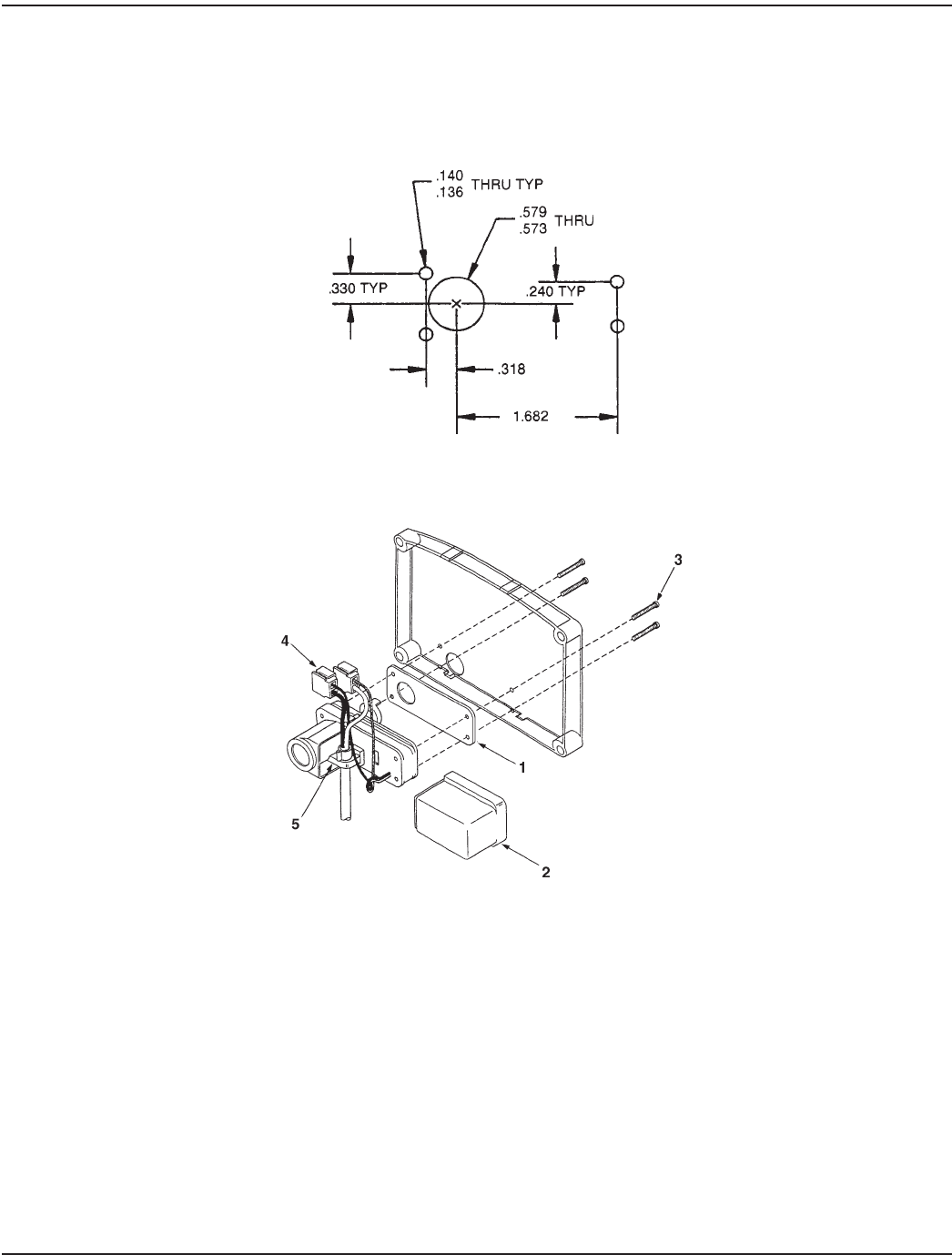

Figure 2: Mounting hole pattern
2. Mount the Gas-RT on the index cover using the TORX screws provided and reinstall the index cover on the meter. Operate
the meter and observe the Gas-RT to ensure that no binding is occurring. See Figure 3.
Figure 3: Mounting detail, see "Required materials" on page 3
