Out Series Set
This function configures the instrument for series operation of 2 channels. “None” means that each channel
operates independently (power supply not in series mode). “1+2” means that channel 1 and channel 2 operate
in series, 1+3 means that channel 1 and channel 3 operate in series.
Note: Channels 2 and 3 can NOT be configured for series operation.

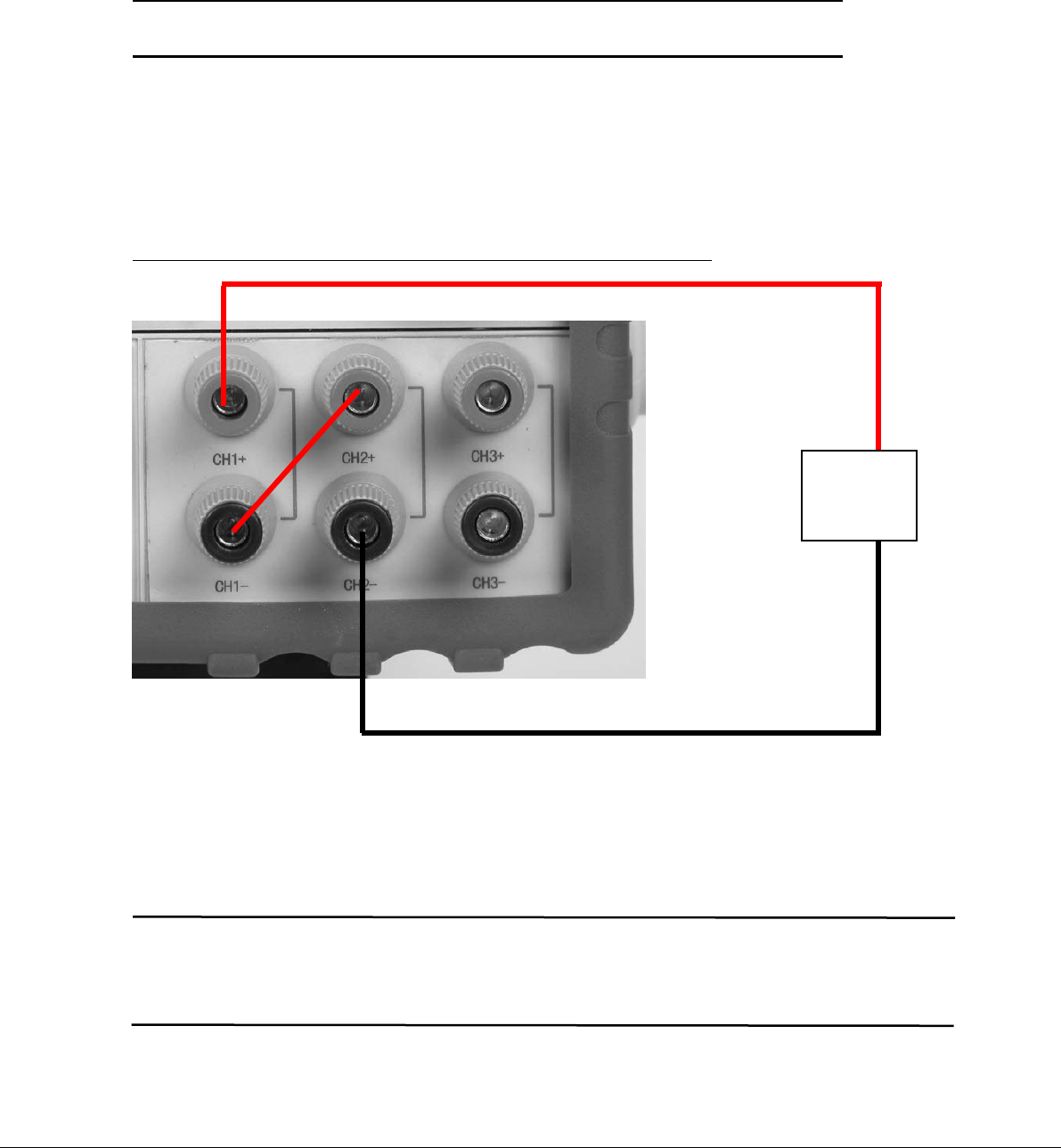

Connection diagram example: Channels 1 and 2 connected in series
Out Parallel Set
This function configures the instrument for parallel operation. “None” means that each channel operates
independently. “1+2” means that channel 1 and channel 2 operate in parallel, “1+3” and 2+3 means that
channels 1 and 3 or channels 2 and 3 respectively operate in parallel. ALL indicates that all 3 channels
operate in parallel.
Note: The output state of all channels will automatically be set to OFF and the voltage value
will be 0V after configuring the instrument for series or parallel operation, therefore you have to
set the parameter again after reconfiguration.
