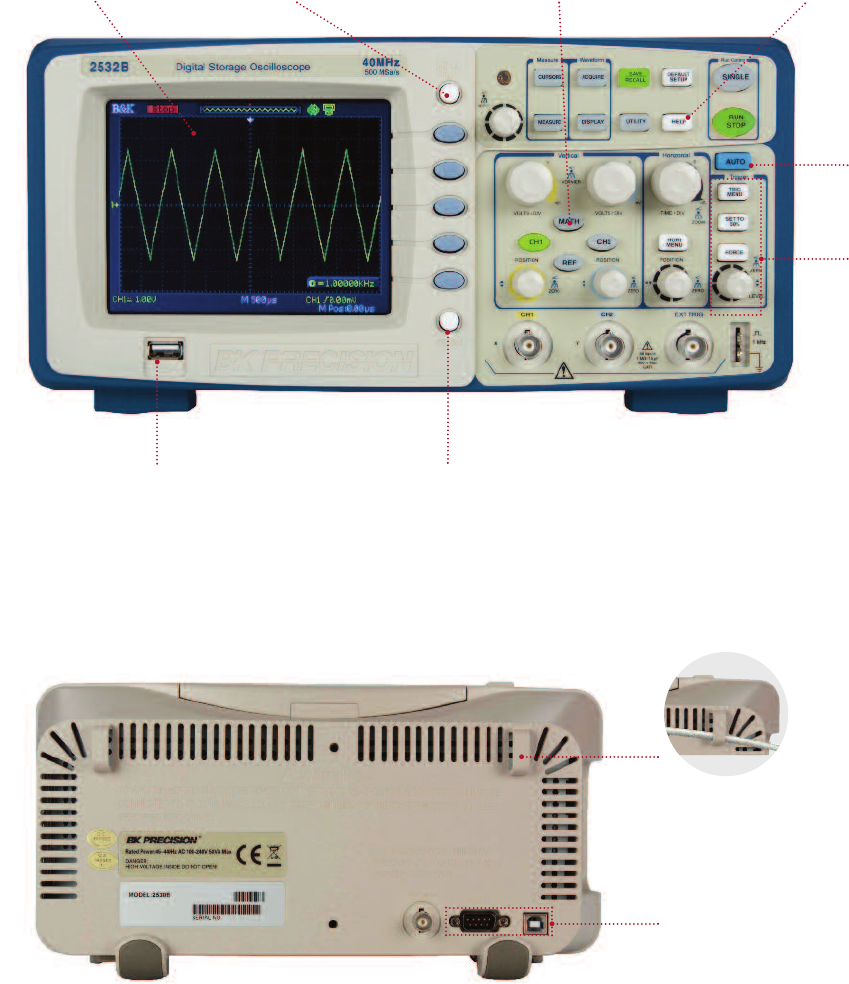

Front panel features
Digital Storage Oscilloscopes
M
odels 2530B and 2532B
Communication
RS232 and USB ports enable remote PC control
via EasyScope PC software.
Security l oop
Use the built-in security loop to secure your
instrument to your location.
Rear panel
Display
5.7” color display.
Menu On/Off button
Configure the menu parameters
and hide the menu with the
push of a button to view your
signal in full screen.
USB host port
Connect your USB flash drive to
conveniently update firmware and
store/recall waveform data, setups,
and screenshots.
Wavefo rm analysis with math and FFT
Analyze your signals with add, subtract,
multiply, and divide functions. View the
signal’s frequency spectrum and perform
harmonic distortion analysis.
Advanced triggering
Isolate the signal with
advanced triggering
including pulse width and
selectable video trigger.
Auto setup
Vertical, horizontal, and
trigger controls are
automatically adjusted for
fast signal display.
Prin t butto n
Simply press the Print button
to save a screenshot in bitmap
format to a USB flash drive.
Context sensitive help feature
While in help mode, push any button
and a help window will pop up
describing the functionality.
