Instruction manual
Table Of Contents
- 1 Safety Summary
- 2 Introduction
- 3 Controls and Indicators
- 4 Operating Instructions
- 6 Specifications
- 7 Certification
- 8 Service Information
- 9 Limited Two-Year Warranty
17

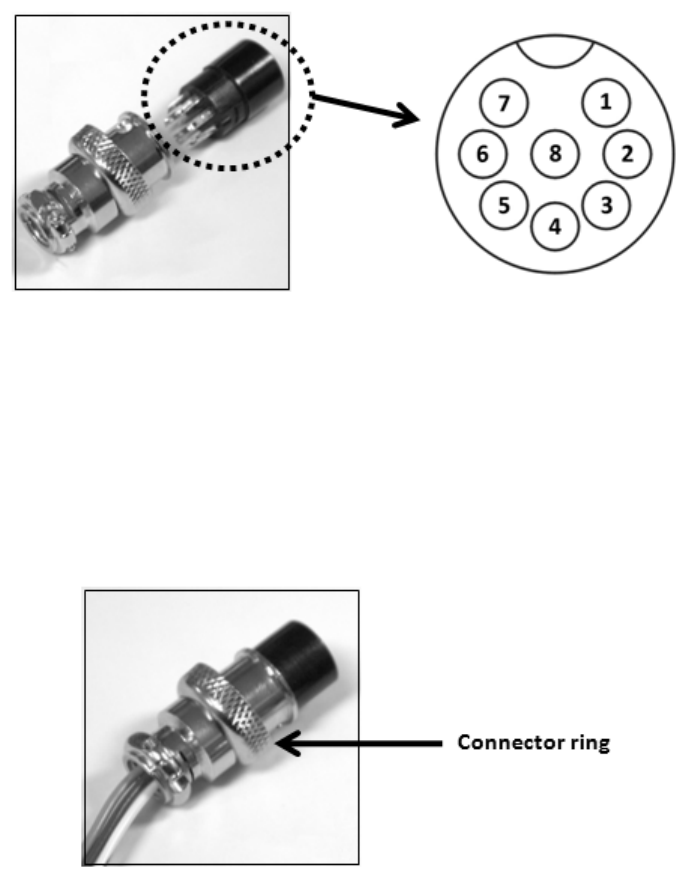

Figure 5 - Pin Numbers
(c) Make sure the load is disconnected and the power supply is OFF.
(d) Plug the remote connector plug into the analog remote control terminal of the
power supply.
(e) Secure the remote connector plug to the terminal socket by locking the
connector ring (
Figure 6).
Figure 6 - Connector Ring
Then, you can choose either method A or B below to use the analog remote control
feature.
